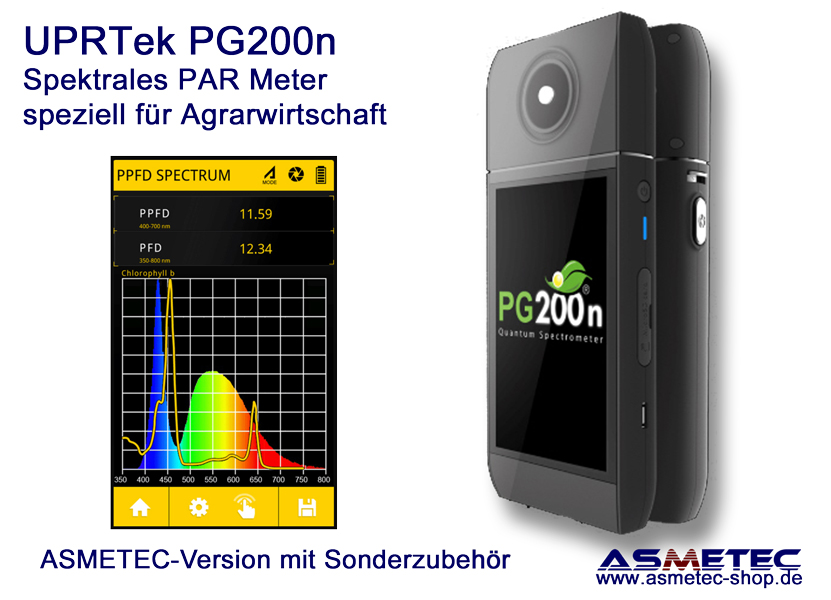

UPRTek PAR meter PG200N
light spectrometer specifically for the agricultural industry
ASMETEC version with useful accessories from the ASMETEC product range
The PG200N is a handheld Spektral PAR meter that meets the requirements of the illuminance classes JIS AA and DIN B.
The spectrometer operates in the PAR range and expresses PPFD values in μmol / m2 / s and PPF in μmol / s, an ideal light meter that stimulates plant growth.
The spectrometer convinces with simple operation, high resolution and repeat accuracy in an extended spectral range from 350 nm to 800 nm. The main purpose of the development of PG200N is to exceed the limits of conventional quantum counter / plant detectors that only use PPFD (photosynthesis photons flux density) Offer. Therefore, PFD (photon flux density), Lux and basic illumination parameters can also be measured.
The PG200N-PAR-Meter is equipped with a G-sensor, which allows dynamic adjustment of the measuring position. The sensor head complies with IP66 and is therefore dustproof and watertight, which does not affect the measuring accuracy due to moisture.
The built-in PAR reference spectrum allows the user to instantly recognize the absorption of light by plants and provide a suitable light source.
Class IP66 Dustproof Waterproof Probe
Detachable probe head with built-in light sensor complies with IP66 rating, it can be used safely in humid environments without the sensitive sensor detecting incorrect readings due to humidity.
The PG200N has a built-in logging mode that allows data to be monitored, collected and recorded over a long period of time. In addition, PG200N can be connected to the PC software uSpectrum for advanced analysis, which can create an exclusive Plant Light Formulas database to make crop production more stable and efficient.
LED grow light multi-measurement options
Depending on the needs of different scenarios, users can select the most appropriate measurement solutions, greatly improving the flexibility and practicality of the measurement.

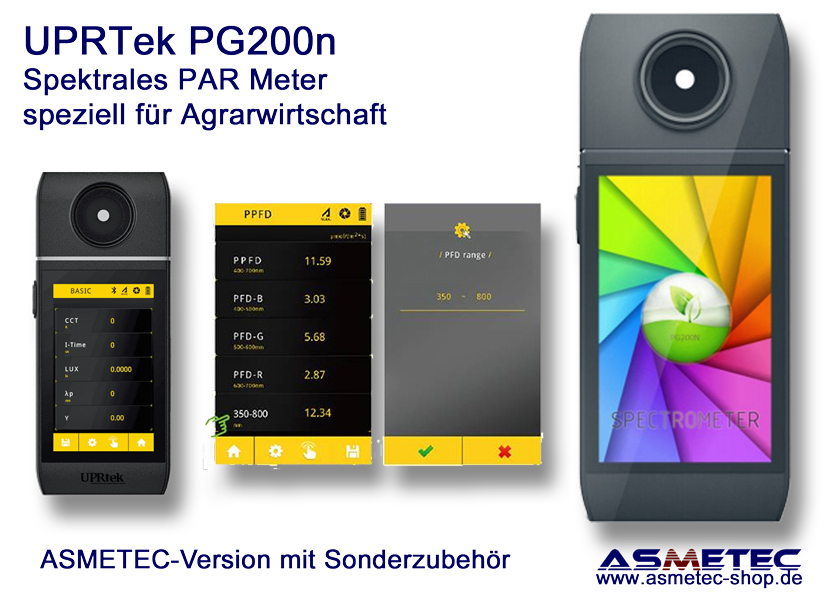

- Standalone (Detachable Sensor Head) / Sensor Head Can Be Measured on Both Sides Remote
- Measurement 1. USB Type-C Cable Measurement, Remote
- Measurement 2. Bluetooth iOS / Android APP Controller
- μSpectrum PC Software - Users can more effectively perform advanced analysis, storage and export reporting create.
Scope of delivery:
We supply the PG200N as an original
- incl. solid aluminium case
- rechargeable battery and charger (european style)
- USB-cable
- Certificate
- ASMETEC special addons such as USB-Stick with special software and further information, light-touchpen, clean room gloves and many more
Technical Data
Please read our data sheets in the download section
