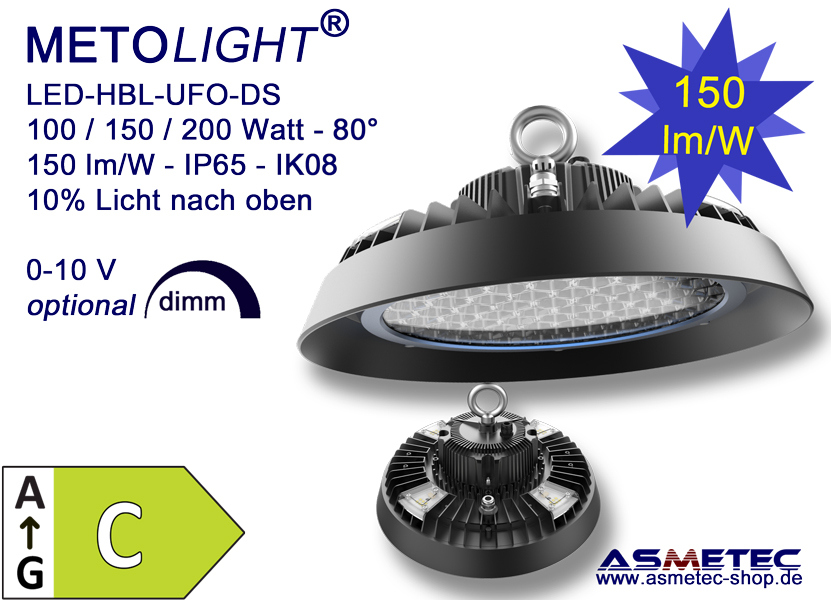

METOLIGHT LED Highbay HBL-UFO-DS-100-DW-80, 100 Watt, 5000K, pure white, 150 lm/W, IP65

METOLIGHT LED Highbay  HBL-UFO-DS-100-DW-80, 100 Watt, 5000K, pure white, 150 lm/W, IP65

Compact Hibay-Light, IP65, Beam Angle 80°, 15000 lm

The new design of our HBL-UFO-DS LED high bay luminaires combines highly efficient SANAN SMD CRI Ra> 80 with an efficiency of 160 lm/W, Sosen LED driver, IP protection class IP65 (dustproof, splash-proof) in a very compact aluminum diecast. The special feature of these LED high bay luminaires are the rear mounted LED modules, which emit about 10% of the light output at an angle of 120 ° upwards. Thus, the hall ceiling is illuminated and achieved a visually much brighter lighting. The light beam downwards is approx. 80 ° making this hall light ideal for installation heights of approx. 4-8 m. However, front lenses are easily replaceable so that optional additional lenses also allow for light angles of 60 ° and 110 °. The higher such hall lights hang, the closer the light beam should be.

The Sanan SMD 3030 have an efficiency of approx. 150 lm/W and thus correspond to energy class C. The perceived brightness of the human eye is over 23,000 plm (pupil lumen). This hall light exceeds the brightness of a 250 watt HQI luminaire.
The newly developed Sosen power supply (optionally also MEANWELL possible) corresponds to the IP class IP66 and belongs with a power factor Pf> 0.97 to the currently best LED power supplies. It is easily exchangeable in case of damage. Even the populated LED PCB can be easily replaced by Asmetec. Upon request, the Metolight UFO-DS series luminaires can also be supplied with dimmable power supplies (DALI, 0-10V, 1-10, DSI) as well as with sensors.

Installation is simple with steel rope or chain with carabiner for hooking into the supplied eyebolt. Optionally, this luminaire can be delivered with mounting brackets as well, which offers a direct ceiling or wall mounting with fixed adjustable angles. This type of mounting is ideal, for example, in sports halls.


Variations:
The highbay luminaire is available in these versions:
Power: 100 / 150 / 200 Watt
Light colour: 3000K / 4000K / 5000K / 6500K
Beam angle: 60° / 80° / 110°
CRI: 70 / 80 (Standard) / 90, SDCM5 (Standard), optional SDCM3



If interested in this luminaire: please ask for our detailed data sheet and our project offer by email
Data sheet METOLIGHT HBL-UFO-DS

Applications:
Lighting in warehouses, assembly halls, work areas, covered loading ramps
Sales halls, supermarkets, shopping malls, sports halls


Dimensions:
Diameter: 360 mm, height 210 mm (without hook)
Weight approx 4,7 kg

Main Technical Data:
Voltage range: 110-240 VAC
Power consumption: 105 W
Energy Class C
Light color: 4800-5500K (others upon request)
CRI Ra >80
L70B10: 60000h - 25°C
Luminous flux> 15000lm (pure white)
Nominal service life: 50,000 hours


Warranty:
We offer a 3 years limited warranty on this highbay light. (see warranty conditions)
