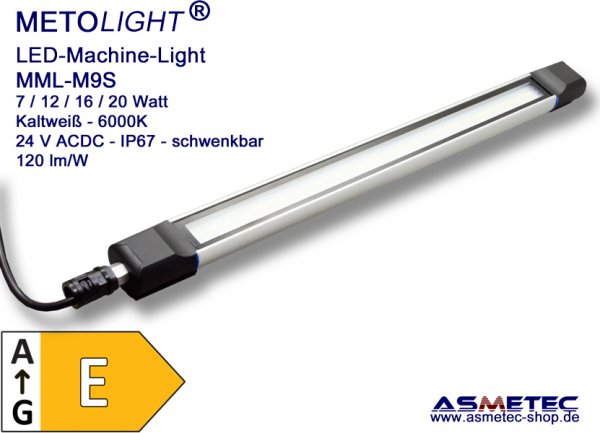

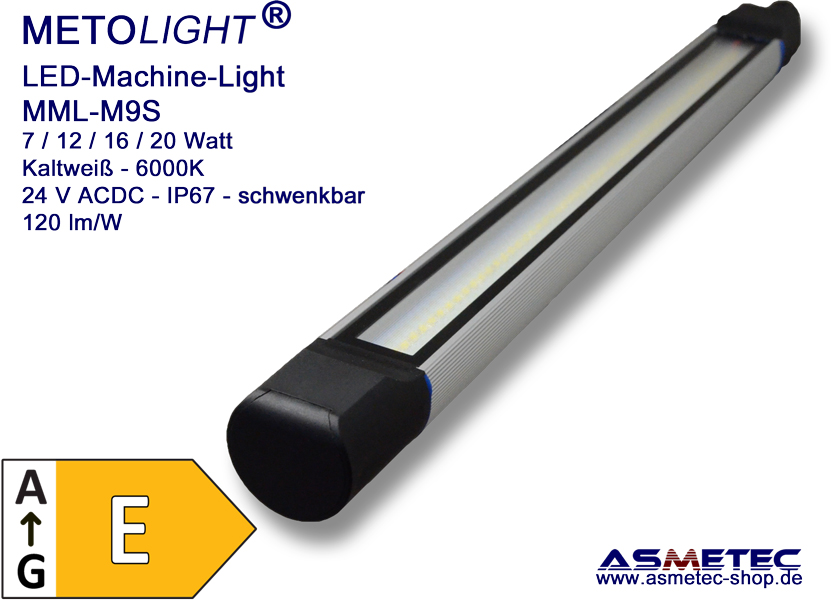

METOLIGHT LED machine light MML-M9S-16, 24 V AC / DC, 16 Watt, 1900 lm

METOLIGHT LED machine light MML-M9S-16, 24 V AC / DC, 16 Watt, 1900 lm

LED linear light, swiveling, IP67, for installation in machines and control cabinets

This newly developed LED machine light is ideal for illuminating workbenches and workpieces within a machine room, a cabinet or other open and closed work areas. The luminaire body is made of sturdy, anodised aluminum, rotatably supported by the supplied mounting clamps.
The semi-matte front glass is hardened and sealed, the complete luminaire corresponds to IP67.
The input voltage is 24 V AC / DC, which means that this LED luminaire can be operated by the most usual on-board voltage. Optionally we also supply the light for connection to 230 VAC.
For direct control by a PLC, we optionally offer a suitable solid-state relay.
The LED machine light has the light color 5800-6200K cold white, CRI Ra> 80, efficiency 100 lm / W, optionally also available with 130 lm/W.

Applications:
The LED machine luminaire is designed for lighting in machines, control cabinets, workstations, trucks, busses, camping, caravan, but also for emergency lighting and solar systems / batteries.


Options:
The LED-M9S is available in the Wattages 7/12/16/20 Watt
Optional connection to 230 VAC or 12 VDC
Optional Solid-state relay 3-32 VDC input - (Article 103804)

Warranty:
We grant a 2-year limited warranty on the LED machine light M9S (see warranty conditions for download area)


Technical specifications:
Power supply voltage: 24 V AC / DC
Power consumption: 16 Watts
Light color: 5800-6200K - CRI Ra> 80

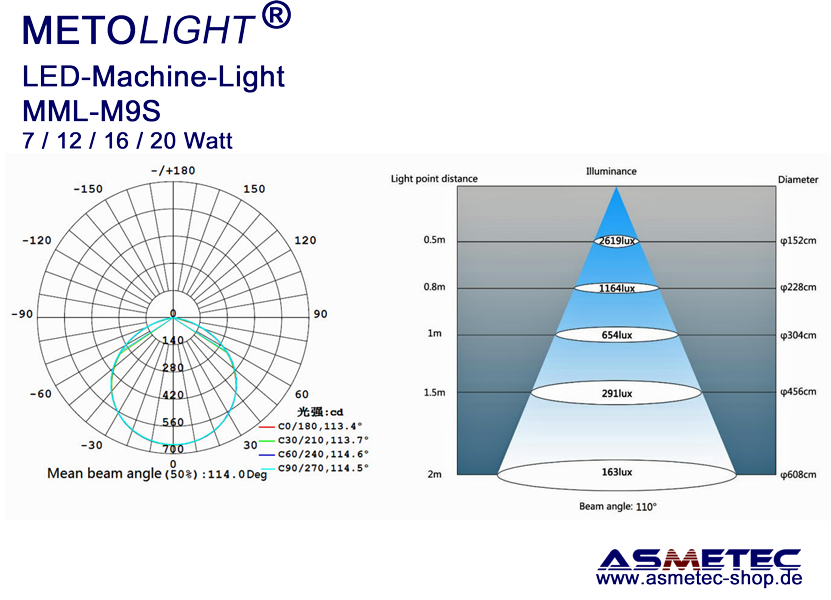

Beam angle 110°
Luminous flux: 1900 lm
Energy class: E (EU 2019)
IP class: IP67

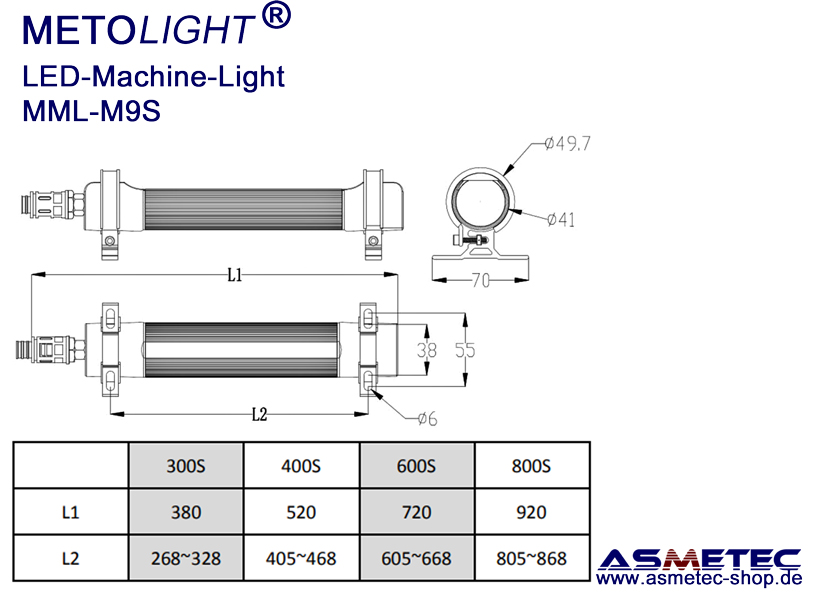

Sizes: 720 x 41 x 41 mm (L x H x D)
Weight: approx. 1,6 kg
