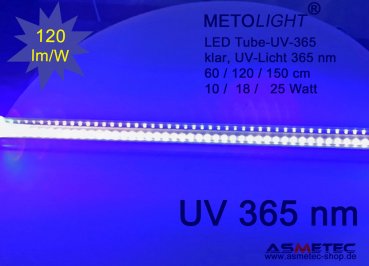

LED tube UV-365 nm, 120 cm, 18 Watt, clear, UV radiation 365 nm, 2100 lm

METOLIGHT LED Tube UV-365, 120 cm, 18 Watt, 2100 lm, clear, 365 nm

UV-LED tube for connection magnetic ballast 230 Volt direct, 120 lm / W UV-LEDs Light Wavelength 365 nm Peak

The METOLIGHT LED Tube Series UV-365 is a technical and energy saving alternative to conventional high pressure mercury lamps used for exposure, curing or drying of UV sensitive materials. In the technical industry - in particular in printed circuit board production, in the chip industry, or in the paint and lacquer industry, such UV-radiating light sources are used to expose, harden or dry paints, lacquers, resins, film emulsions.
LED tubes with UV LEDs, however, have some clear advantages over conventional exposure technology:

• hardly any heat radiation - the exposed products do not deform or are not damaged by heat radiation
• Almost as frequent on / off cycles - LED tubes survive up to 100,000 switching cycles and more.
• Immediately ready for use - no warm-up time required
• Very long burning time up to 25,000 hours
• Direct connection to 230 VAC or in luminaires with G13 sockets and built-in magnetic ballast.

Areas of application:
The LED tube UV 365 with 365 nm light radiation is used for the exposure, drying, curing of UV-polymerizing products.
Technical features:
Epistar high-efficiency SMD LEDs with 120 lm / W, T8 diameter, base G13, one-sided safety contact. Special aluminum core PCB for best heat dissipation and extra long life. Double insulated power supply with short-circuit protection, stable aluminum cooling profile, extra light, unbreakable construction, very stoic radiation resistant. Insulation voltage resistant> 3000 V, high dielectric strength, no flickering due to voltage fluctuations. Integrated short-circuit protection.
3-year warranty (see warranty conditions in the download area).


Technical data at a glance

• Power: 18 Watt
• Length: T8-120 cm
• Connection voltage range 110 - 255 VAC
• Light source: EPISTAR 2835 UV-LED 365 nm
• LED Efficiency: 120 lm / W
• Angle of light:> 140 °
• Power factor Pf 0.9
• Operating range: -10 ~ + 40 ° C, 10 ~ 80 % rH
• Socket: G13 Diameter: T8 - 26 mm (Socket: 30 mm)

Please ask if you are interested in our technical data sheet
request techn. Data sheet and offer

Easy installation:
Switch off the light, remove the old fluorescent tube and the starter - Use the METOLIGHT LED fuse starter - Insert the METOLIGHT LED tube - Switch on the lamp - That's it.
For luminaires with electronic ballasts, we recommend our adapter terminal (item no. 101606) with which the conversion of the luminaires is done quickly and easily.


Individual inspection at Asmetec:
Each LED tube is individually tested for function and compliance with the technical data in the Asmetec light laboratory. In addition, each LED tube undergoes an insulation resistance test of 1500 volts.
The tests of the photometric data, ISO lines, EMC, switching cycle tests, etc. are carried out in batches.
Customers receive the corresponding test protocols on request.


Notes: Also available in wave range 395 nm and in length 60 cm and 150 cm

Packaging units and prices for dealers:
We only offer dealer prices for complete packaging units of 25 pieces per carton. Please ask for our current project offer.
