METOLIGHT LED Highbay HBL-UFO-BT-100-DW-60, 100 Watt, 5000K, pure white, 150 lm/W, IP65, integrated motion sensor

METOLIGHT LED Highbay  HBL-UFO-BT-100-DW-60, 100 Watt, 5000K, pure white, 140 lm/W, IP65, integrated motion sensor

Compact Hibay-Light, IP65, Beam Angle 60°, 14000 lm

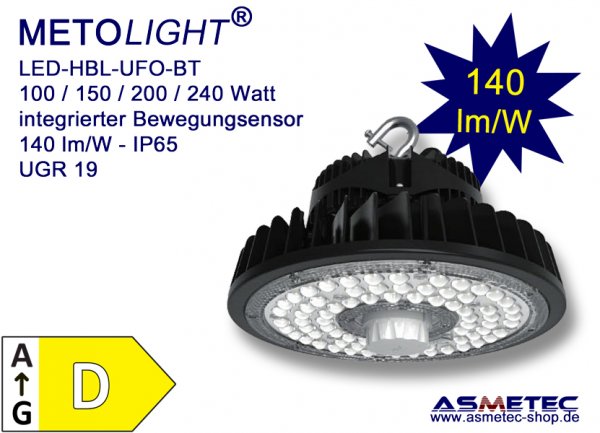

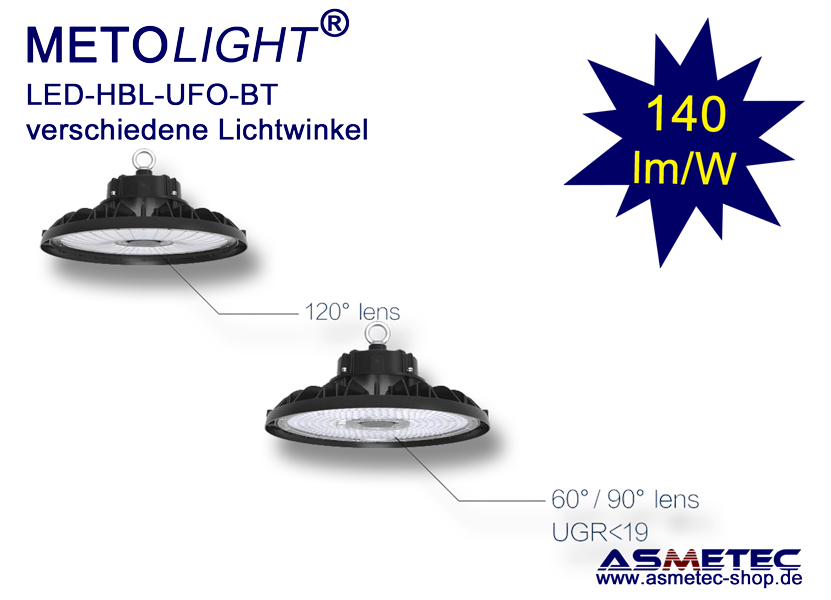

The new design of our HBL-UFO-BT LED high bay luminaires combines highly efficient CREE SMD 2835 CRI Ra> 80 with an efficiency of 150 lm/W, Sosen LED driver, IP protection class IP65 (dustproof, splash-proof) in a very compact aluminum diecast. The special feature of these LED high bay luminaires are the integrated, widely adjustable motion sensor which automatically powers on the light when motion is detectd, and powers oof after adjustable period of time without any motion. The light beam downwards is approx. 60 ° making this hall light ideal for installation heights of approx. 5-8 m. However, front lenses are easily replaceable so that optional additional lenses also allow for light angles of 60 ° and 120 °, while 60° and 90° lenses proivide UGR <19.  The higher such hall lights hang, the narrowerr the light beam should be.

The CREE SMD 2538 have an efficiency of approx. 150 lm/W and thus correspond to energy class D. The perceived brightness of the human eye is over 22,000 plm (pupil lumen). This hall light exceeds the brightness of a 250 watt HQI luminaire.
The newly developed Sosen power supply (optionally also MEANWELL possible) corresponds to the IP class IP66 and belongs with a power factor Pf> 0.95 to the currently best LED power supplies. It is easily exchangeable in case of damage. Even the populated LED PCB can be easily replaced by Asmetec. Upon request, the Metolight UFO-BT series luminaires can also be supplied with dimmable power supplies (DALI, 0-10V, 1-10, DSI) as well as without sensor.

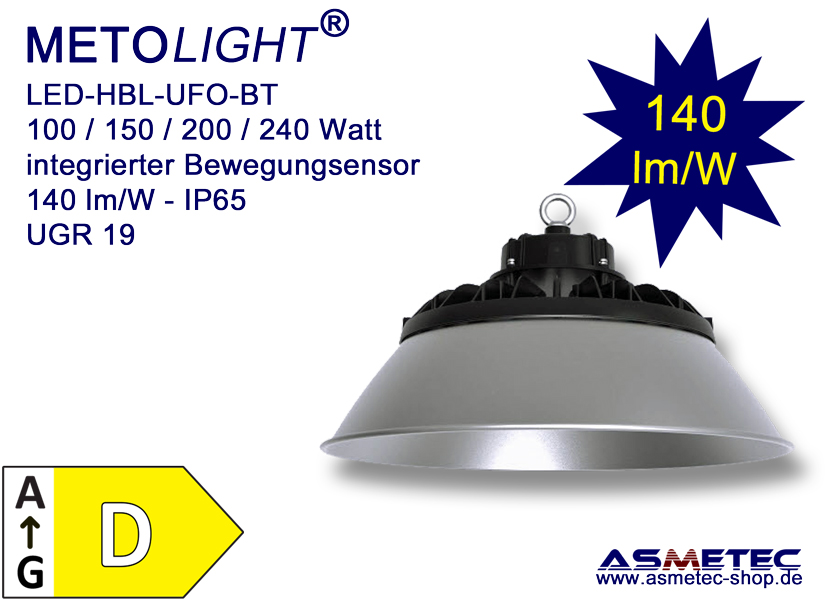

Installation is simple with steel rope or chain with carabiner for hooking into the supplied eyebolt. Optionally, this luminaire can be delivered with mounting brackets as well, which offers a direct ceiling or wall mounting with fixed adjustable angles. This type of mounting is ideal, for example, in sports halls.


Variations:
The highbay luminaire is available in these versions:
Power: 100 / 150 / 200 / 240 Watt
Light colour: 3000K / 4000K / 5000K (Standard) / 5700K

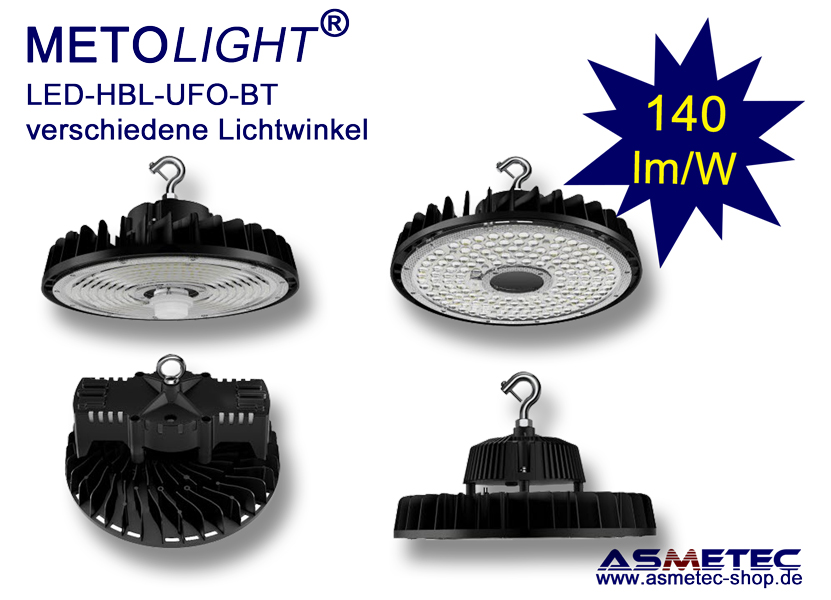

Beam angle: 60° (Standard) / 90° / 120°
CRI: 70 / 80 (Standard) / 90, SDCM5 (Standard), optional SDCM3

Applications:
Lighting in warehouses, assembly halls, work areas, covered loading ramps
Sales halls, supermarkets, shopping malls, sports halls

Dimensions:
Diameter: 280 mm, height 180 mm (without hook)
Weight approx 1,9 kg

Main Technical Data:
Voltage range: 110-277 VAC
Power consumption: 105 W
Energy Class D
Light color: 4800-5200K (others upon request)
CRI Ra >80
L70B50: >50000h - 25°C
Luminous flux> 14000lm (pure white)
Nominal service life: 50,000 hours


Warranty:
We offer a 3 years limited warranty on this highbay light. (see warranty conditions)
