ESD table mat set TM-1009-BL, light blue

ESD table mat set TM-1009-BL, light blue

complete with antistatic table mat, wrist band and grounding cords

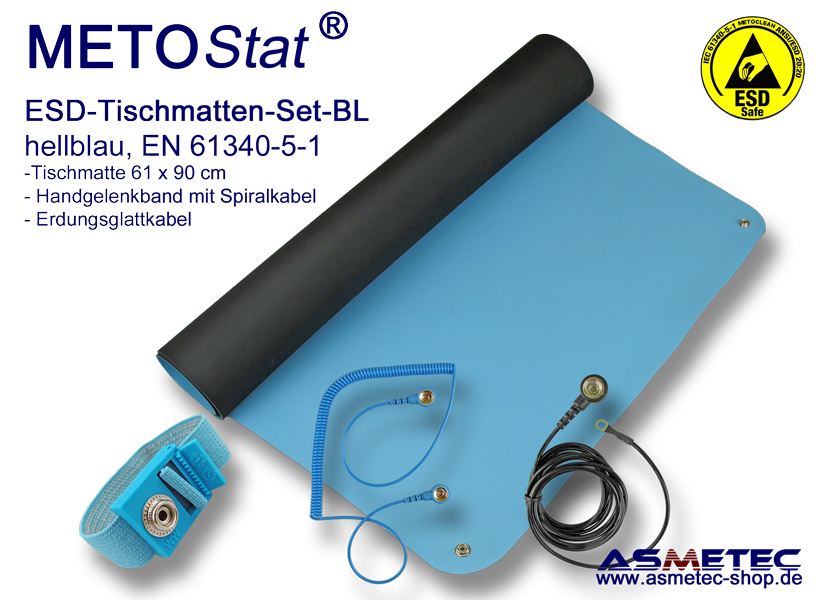

This ESD table mat set consists of:

• 1 x table mat TM1009-BL, light blue, 61 x 90 cm, with 2 x 10 mm snap
• 1 x wrist band , light blue, snap button 10 mm
• 1 x spiral grounding cord for wrist band, approx. 2 m long
• 1 x plain grounding for table mat, 1.5 m long

The table mat is made of a durable top layer of special rubber with surface resistance 10⁷ to 10⁹ ohms laminated on a conductive, slip resistant rubber layer with surface resistance 10³ to 10⁵ ohms.
Both layers offer outstanding resilience to oils, greases and most electrical solutions commonly found in solvents. The upper layer is conditional solder proof, withstands solder spots up to 120 °C.
To ground the workplace, we recommend our ground boxes and ground plugs.

Scope of application:
Table mat for workstations in electronics, circuit board, assembly, repair area, optics, clean room and ESD areas. Also suitable as a shelf cover

Grounding:
The ESD table mat can be grounded by using the grounding cords connected either to a grounding point or to grounding plugs and grounding boxes.


Technical specifications table mat:
Width: 61 cm
Length: 90 cm
Thickness: 2 mm
Color Top: light blue
Color bottom: black
Surface resistance top: 10⁷ to 10⁹ Ohm
Surface resistance bottom: 10³ to 10⁵ Ohm

Wristband: adjustable, anti allergen, snap 10 mm
