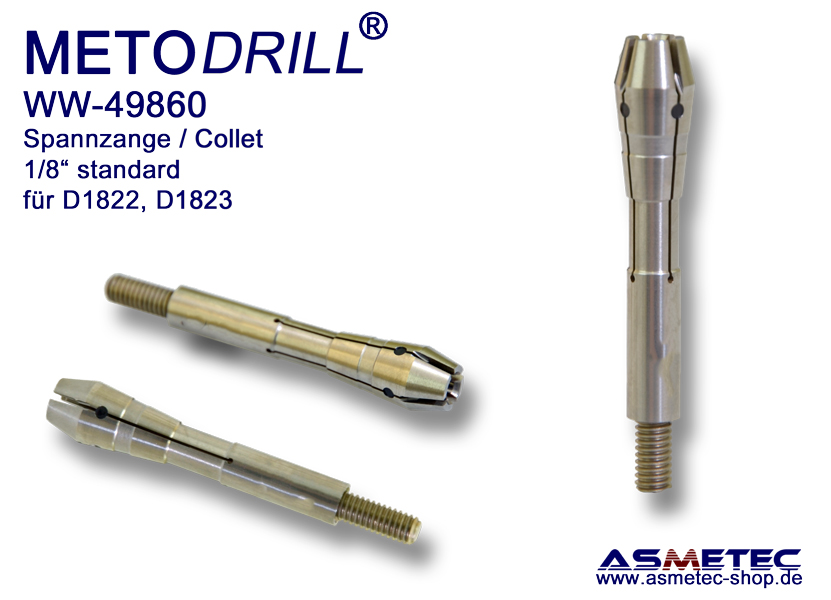

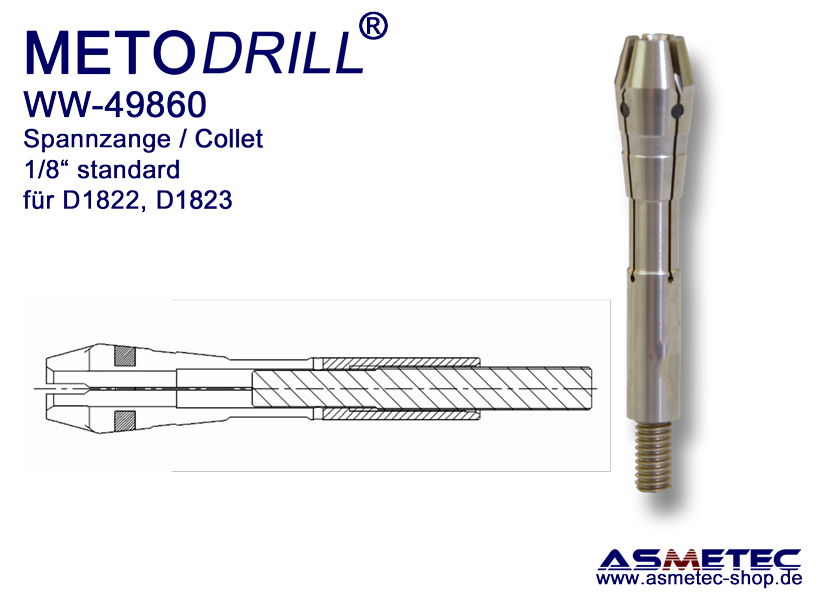

Collet Metodrill WW-49860 - Westwind drill spindle D1822, D1823

Collet WW-49860 for Westwind D1822, D1823

METODRILL precision collet - the economical alternative to the original

collet made of 100% spring stainless steel with highest precision, technical equivalent to the original collet.
By drilling the circuit boards you already determine the quality. High-precision drilling tools are the prerequisite for perfect drilling, low nailheading, low burr.
Using METODRILL collets you get inexpensive, very reliable and high quality drill and milling collets for your spindles.


METODRILL Collet WW-49830
Static runout - 2 μm
Dynamic runout - 8-10 μm
Suitable for speeds up to 140,000 rpm
Collet assy with positive lock
1/8" standard
OEM Part-Nr. Westwind 49860
suitable for
Westwind D1822-01, 01T, 01RS, -02, -03, -04, -05, -05RS, -06, -07, -08, -09, -09RS
D1823-01, -01RS, -02R


General Quality Features:

• High quality spring steel full hardened and ground for proper hardness and toughness, better flexibility and increased grinding quality.
• Concentricity within 5µm for longer tool life and best surface finish.
• The collets are slotted, hardened, ground, polished and tested to 100% concentricity.
• Fine finished surface (Rz ≤ 2.5µm) for higher stiffness, maximum clamping forces, enhanced concentricity and better corrosion resistance due to increased surface contact.
• All edges are deburred and rounded to protect the spindle from inside marks.
