Yellow Room LED-Grid-Light RDL-6262-UVL-GO, 40 Watt, adjustable from 460 to 625 nm

METOLIGHT LED-Grid-Light RDL-6262-UVL-GO, 40 W, 230 VAC, adjustable light from 460 to 625 nm

Recessed grid ceiling LED luminaire with special LEDs without blue content for yellow room lighting

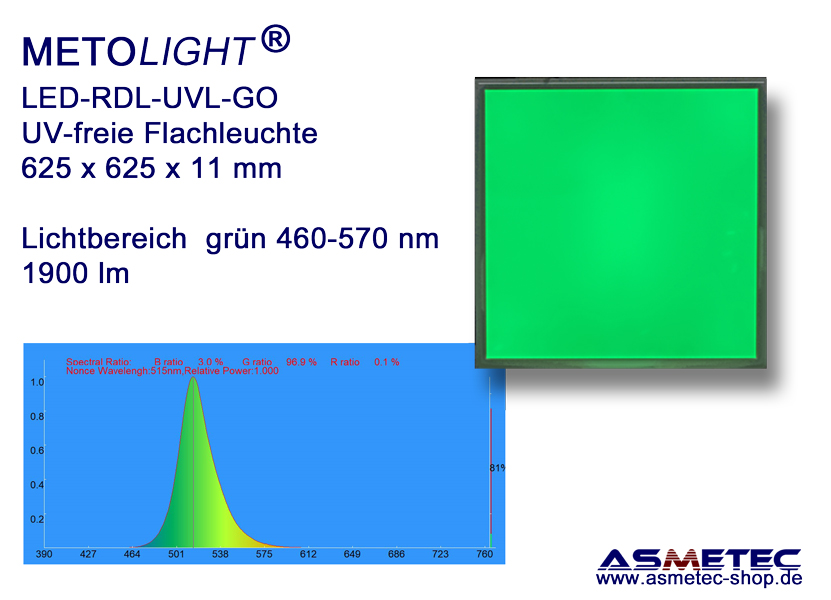

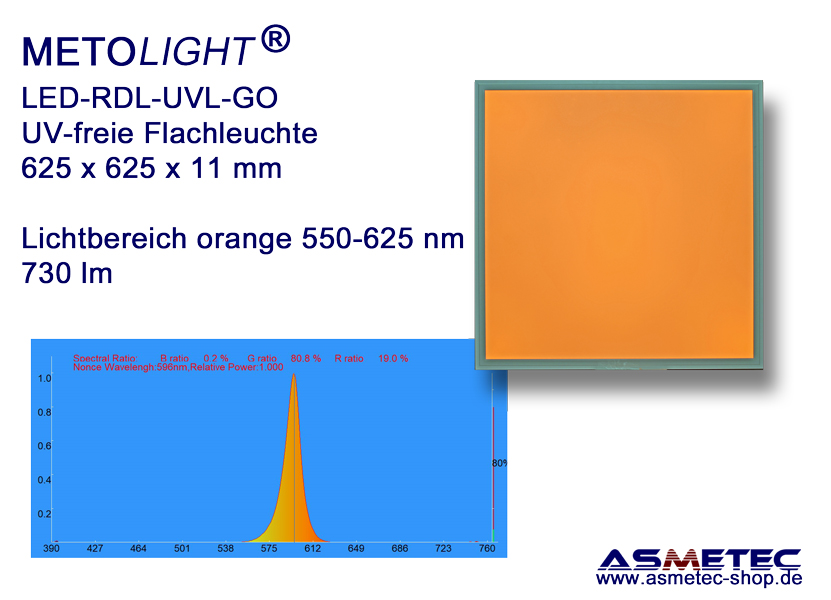

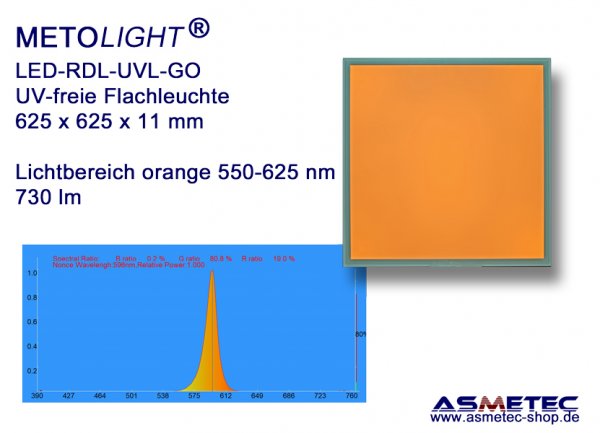

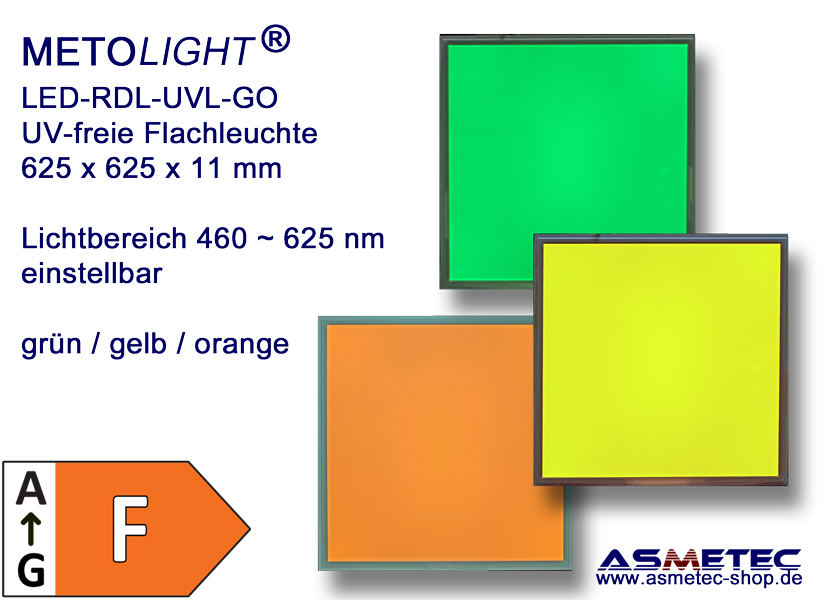

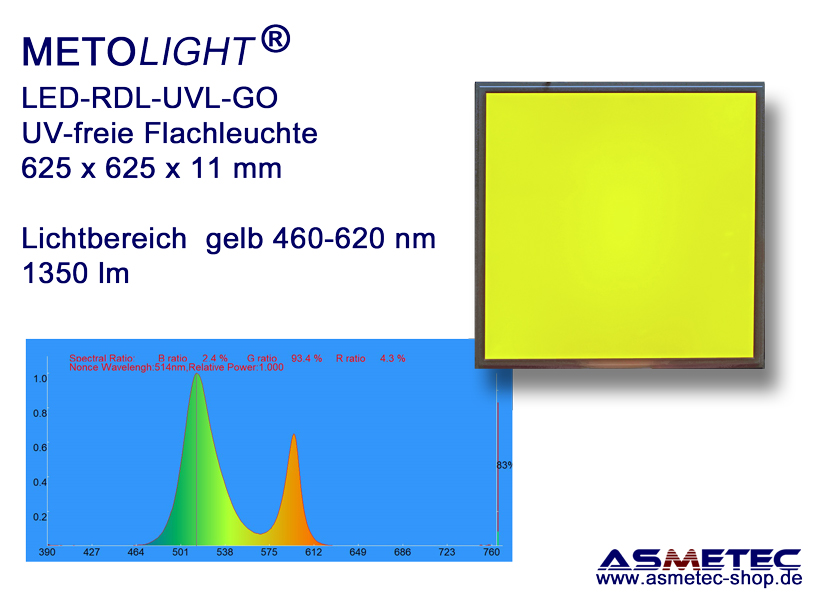

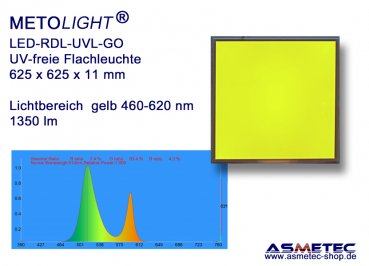

Yellow room LED luminaire, adjustable to your specifications between 460 nm (green) to 625 nm (orange)

The new 625 mm adjustable LED luminaire for grid ceilings 625 mm, developed by Asmetec, is special LEDs whose light spectrum can be adjusted continuously between 460 nm and 625 nm. This luminaire covers the light range from green to yellow to orange, which is required in so-called yellow rooms but also in laser rooms. At Asmetec, we set the light color exactly to your specifications, so that even with several luminaires all emit the same light color. The lights can also be changed at any time via an optional remote control in the light color. However, we recommend testing the light color using a spectrometer.

The LED grid ceiling light UVL is designed for lighting in so-called gel cells, e.g. in the photo technology, printing technology chip production, PCB exposure, in laboratories and production areas, in which UV-free lighting is needed to treat / process UV-polymerizing products. Although such products are usually exposed in areas between 360 and 380 nm, the paints, lacquers, resins, etc., often have a further sensitivity level between 420 and 460 nm, which means they are exposed to "normal" LED bulbs, at least the pot life strongly is reduced.

With METOLIGHT UVL luminaires and UVL LED tubes, you get a UV-free illumination in which you can safely process such UV-sensitive products. The light is glare-free, even, shadow-free and is emitted at an angle of about 110 °. The lamp can also be adjusted via the optional remote control. The RDL 6262 UVL luminaire is suitable for installation in grid ceilings with 625 mm pitch. It replaces conventional luminaires with 4 fluorescent tubes with largely the same brightness.

LEDs with an efficiency of 100 lm / W are used, the lamp is operated with the enclosed constant current power supply to 230 VAC. The effective luminous flux changes depending on the set light color.

For grid ceilings 600 mm we offer corresponding luminaires.

Important: Due to the lack of blue light a meaningful light measurement acc. LM79 can not be performed, as it refers to the complete visible light. The lumen data can therefore only be approximated.
The same luminaire with complete light spectrum has a luminous efficacy of 3800 lm. Due to the lack of blue light, of course, no full color reproduction is possible - everything appears in yellowish light.

Alternatives: If you want to convert existing grid ceiling luminaires with fluorescent tubes to LED technology, we offer matching T8 LED tubes with integrated UV filter. Asmetec manufactures these special LED lights in Kirchheimbolanden, based on our Patent No. 20 2010 001098.5

Warranty:
For this luminaire we provide a 3 year warranty (see warranty terms in the shop download area)

Asmetec Quality:
Each luminaire is checked in Kirchheimbolanden for proper operation prior to shipment with us. You can request for free each batch a test report from our photometry. We create data for light calculation also in our own laboratory light - IES.
