Yellow Room Tri-Proof Luminaire DAL-UVL470-150, 60 Watt, 470-780 nm, 2400 lm, IP66

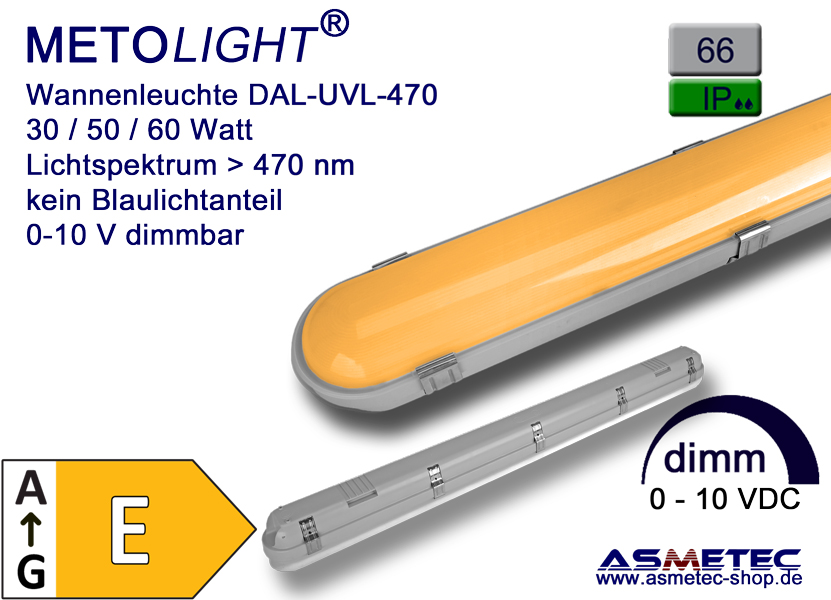

METOLIGHT Tri-Proof LED fixture DAL-UVL470, 60 Watt, 150 cm, 2400 lm

Compact LED luminaire with UV-free light 470 - 780 nm, IP66

Yellow room luminaire to be usewd in so called yellow rooms where UV-free light is required

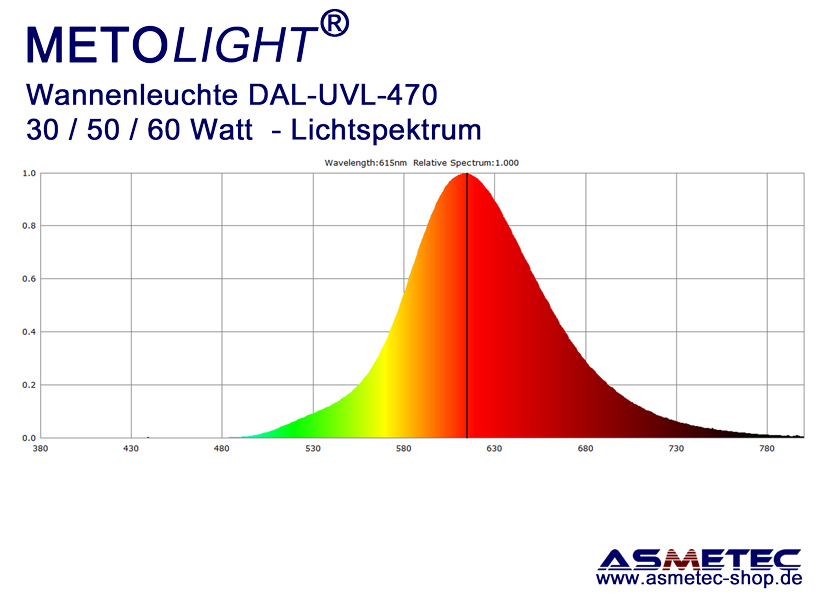

The METOLIGHT® DAL-UV-470 LED luminaires are designed for use in so-called yellow rooms, even in humidity chambers or refrigerated / freezer rooms, where no light with blue levels or in the UV range may be present. Thanks to special LEDs, the DAL-UV470 only emits light in the range between 470 and 780 nm - absolutely UV-free illumination. The housing is made of impact-resistant polycarbonate and corresponds to the classes IP66 / IK08. The matt prism diffuser made of polycarbonate distributes the light to approx. 160 °. The aluminum core PCB is equipped with special high-performance Epistar SMD LEDs. The Ledfriend integrated power supply is designed for input voltages between 100 - 277 V AC 50/60 Hz for long-lasting, low-maintenance operation up to approximately 30,000 hours (L70B50), it can be dimmed via 0-10V signal or 10 kOhm potentiometer.

The mounting clips for the diffuser and the mounting brackets for the lamp are made of stainless steel. The LED circuit board is built into the removable diffuser. Thus, the LEDs are protected against accidental contact, in addition, the installation is significantly simplified: The tub housing with the integrated power supply (optional with motion and / or emergency) is attached via the supplied mounting clips to the ceiling or wall, the power cable connected to the terminal , finally, the LED panel is only connected to the power supply via a plug and clipped onto the tub support.This LED light does not emit UV light. Plastics therefore do not become brittle, insects are not attracted by the light.

The light is yellow-orange to the human eye, so objects can not be seen in their natural colors. Due to the lack of blue and green components in the light spectrum, a correct lumen measurement according to LM79 / LM80 is not possible. The series DAL-UV-540 is available in lengths of 60 cm (30 W), 120 cm (50W) and 150 cm (60W). The efficiency of the special LEDs is approx. 90-110 lm / W.Areas of application: Special lighting in gel rooms, in the laboratory, in electronics, printed circuit boards. Chip, PV production, also usable in damp rooms, sheltered outdoor area, cold room, freezer and others.

Technical Data:
Type: Metolight DAL-UV470-150
Input voltage: 100-277 VAC 50/60 Hz
Power: 60 Watt
Light power about. 2400 lm - 470-780 nm
Protection classes: IP66 / IK08
Dimmable: 0-10 VDC / 10 kOhm
Sizes: 150 x 9 x 8 cm

Areas of application:
The yellow-room diffuser luminaires are mostly used in the industrial manufacturing sector, where UV-curing inks, lacquers, resins, emulsions, films, etc. are processed.
Typically, the manufacturing areas are electronics, PCB chip, wafer, solar panel manufacturing, in the area of ​​printing and laser, in the exposure area of ​​films, diazo films, solder resists, protective coatings, etc.
The yellow light - free of blue, green and UV below 400 nm - ensures that the UV-sensitive materials do not prematurely polymerize and thus can no longer be processed.

Delivery options:
We deliver the lamp METOLIGHT DAL-UV540 in the lengths 60 cm - 30 Watt / 120 cm -50 Watt and 150 cm - 60 Watt
Customized packaging: Upon customer request, we assemble the lights with cable, switch, sensors - just ask at to us - info@asmetec.de

IES data files for light calculation in Dialux or Relux are available upon request.

Synonyms
Such yellow room lights are also known as: yellow light, yellow lumiraire, gelbraum light, uv-free light etc
