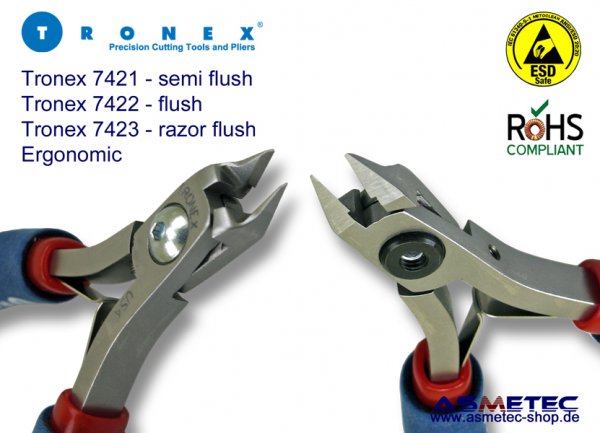

Tronex 7421 - Mini Taper Relief, ergonomic - Semi-Flush
Tronex 7421 - Mini Taper Relief - Semi-Flush
ESD-safe Miniature Taper Relief cutters are used only for exceptionally fine cutting work.
Long ergonomic handle
Usually access to the cutting area is difficult, requiring the very low profile of this cutter with full relief.
| Modell | Tronex 7421 | Model |
| Flacher Spitzkopf Seitenschneider / Relief Mini Taper | ||

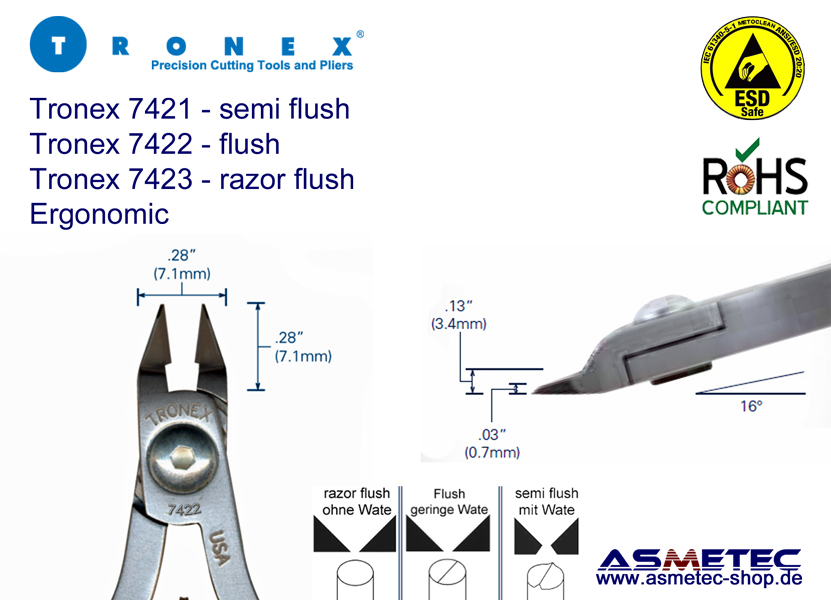

| Kopfbreite | 7,1 mm | Head width |
| Backen | 7,1 mm | Jaw |
| Backenhöhe | 3,4 mm | Jaw height |
| Schneide | 4,4 mm | Edge |
| Winkel | 16° | Angle |

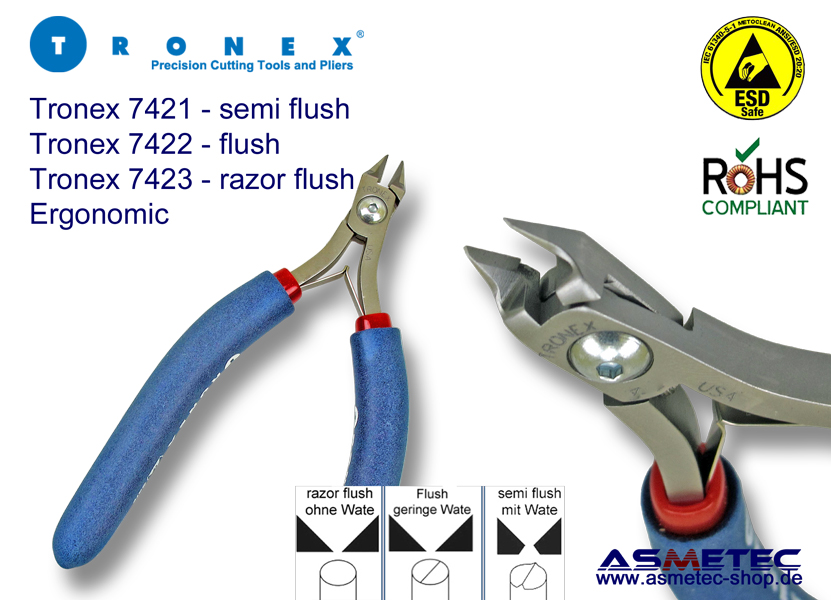

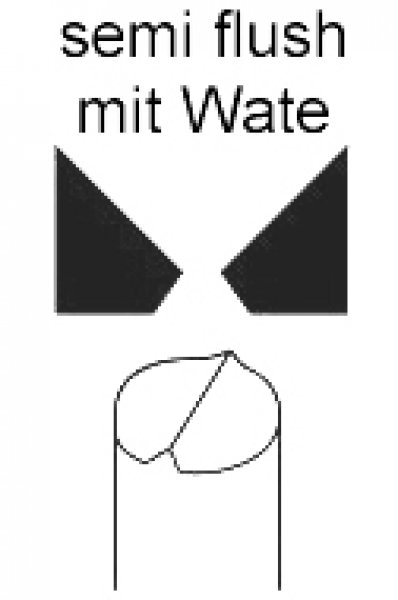

| Schnittart | mit Wate / Semi-Flush | Cutting edge |
| für Cu-Draht | 0,2 - 1,1 mm Ø | for soft wire |
| Griff | ergonomisch / ergonomic | Handle |
| Griffkissen | ESD, austauschbar / exchangeable | Cushion Grips |
| Option | Standard: Tronex 5421 | Option |
Industry Applications:
- Electronics
- Wire Harness
