Zoom-Microscope Touptek ZOPE-B-01200KPA, 1.2 MPix, monochrome, 0.7~5.6x

Touptek Zope-B-01200KPA, Zoom microscope, 1.2 MPix, monochrome, 0.7 ~ 5.6x

METOCHECK edition with tightest tolerances, with Asmetec accessories

OEM-No: ToupCam ZOPEB01200KPA
  The ToupTek ZOPE series is a combination of a USB camera, zoom lens and adjustable stand with integrated LED lighting.
Depending on the camera model, data is transferred via USB or HDMI. The focus is automatic, regardless of the magnification set on the zoom lens.

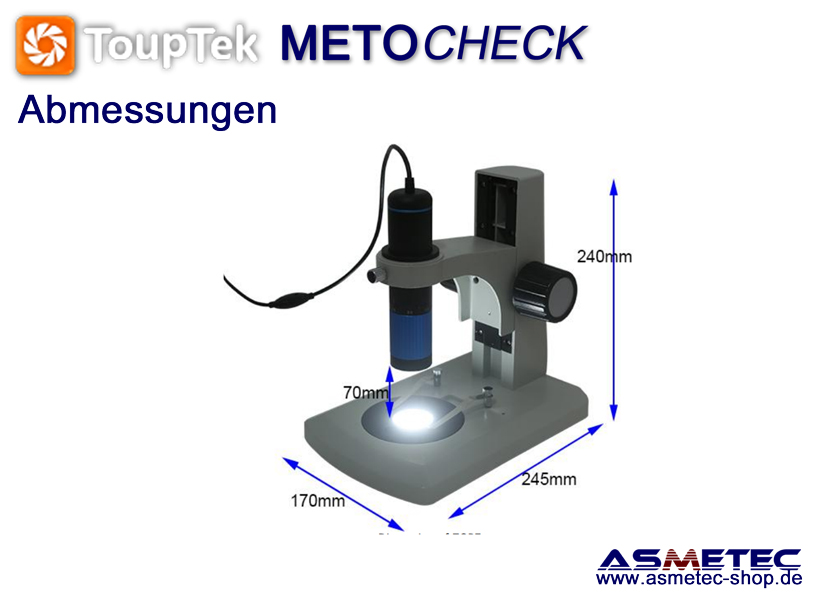

The working distance is constant at 70 mm or 32 mm, depending on the lens .
There are 2 camera models (5.1 MP color, 1.2 MP monochrome) and 2 zoom lenses (ZLA: 0.25 ~ 1.6x, ZLB: 0.7 ~ 5.6x) available.

The supplied ToupView software is easy to use, (menu language German can be set) allows single images and film recordings, as well as various measurement options and image comments.
The operating system is Windows / Linux / OSX, SDK; Native C / C ++, C # / VB.NET, Direct Show, Twain Control API;

Basic Characteristic of ZOPE
• The ZOPE stays in focus when magnification/focal length is changed
• True continuous zoom that most of the handheld USB microscopes do not have
• Digital microscope with USB2.0 to computer or HDMI interface to HDMI display
• Compact and professional optical performance

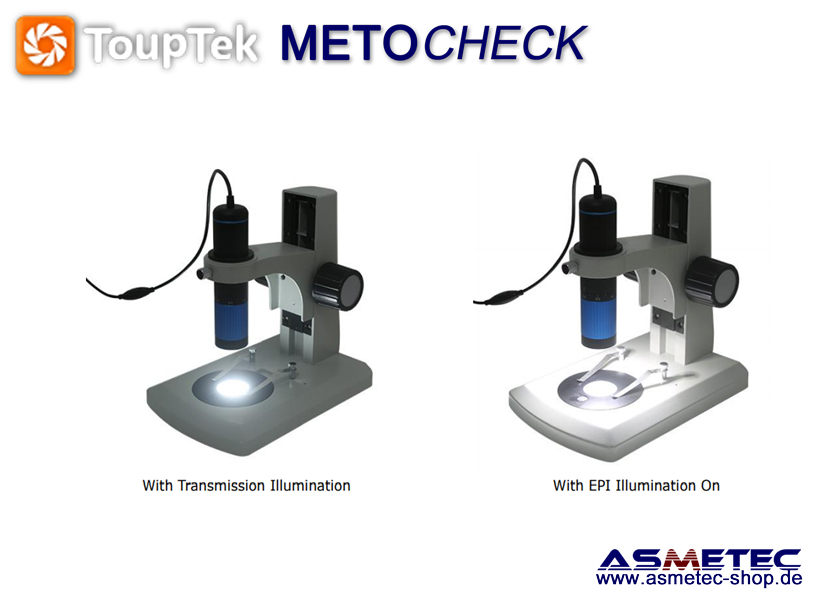

• With compact inner 8 high power LEDS for the reflective illumination and uniform LED transmission illumination with battery as the power
• Long and fixed working distance up to 70mm for all zoom positions
• CNC mechanical body ensure smooth zooming operation
• Wide range of resolutions from 1.2M~5M
• Ultra-FineTM color engine with perfect color reproduction capability
• With advanced video & image processing application ToupView
• Providing Windows/Linux/Mac OS multiple platforms SDK
• Native C/C++, C#/VB.NET, DirectShow, Twain Control API
• USB Power, no extra source required

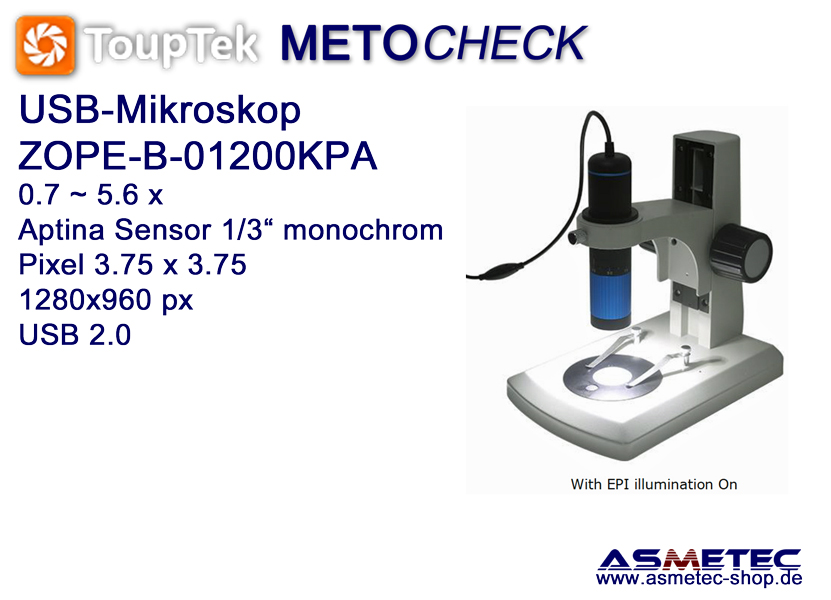

Version Zope-B-01200KPA:
The integrated Aptina CMOS sensor 1/3" (4.80 x 3.60 mm) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 3.75 x 3.75 µm. The USB 2.0 port is for data transfer and power supply. An integrated IR filter protects the sensor. The camera operates with no moving parts. It is embedded in a robust plasic housing and is in precision and robustness many other industrial cameras clearly superior.

The stand is adjustable in height and has 8 integrated LEDs, powered by batteries (not included).

The Zoom-Optic ZLB offers stepless magnification fom 0.7 to 5.6x, working distance 32 mm, field of view 10.8 ~ 1.36 mm


The complete carefree package - only available at Asmetec:
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service

Main technical data:
Sensor: Aptina, CMOS, 1.2 MPix, monochrome
G-Sensivity: 6,5 V /lux-sec
Dynamic range: 66,5 dB
SNR-max 40 dB
FPS/Resolution 28 fps - 1280x960 px
Exposure: 0.4 ~ 2000 ms
Pixel size: 3.75 x 3.75 µm
Binning: 1x1
Spectral range: 380 - 650 nm
Power supply: USB-Port 5 VDC
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

Supply:
USB-camera
Zoomn lens
stanbd
USB-cable
Software
manual
