USB-Camera Touptek XCAM-4K16MPA, 4k-HDMI, LAN, SD-Card
Touptek-XCAM-4K16MPA, 4k-HDMI, LAN, SD-Card, USB 3.0
METOCHECK edition with tightest tolerances, with addidional Asmetec accessories
OEM-No. ToupCam XCAM4K16MPA

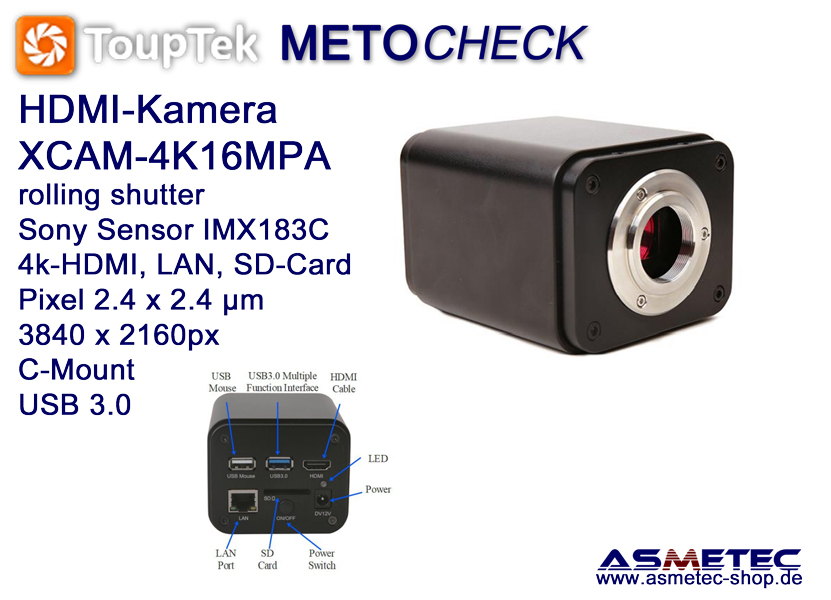

comes with C-mount, Sony CMOS sensor, LAN + HDMI-Output
The Touptek USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The supplied software with a English user interface enables measurements (lengths, areas, angles, circles, etc.) and image comments, single images and film recordings - ideal for quality control and assurance, use as teaching aids, for demonstration purposes and presentations, school, hobby and job.
The integrated Sony CMOS sensor IMX183C - 1/1.06 "(13.06 x 7.34 mm) with greatly improved image geometry, contrast and sensitivity shows even edge areas absolutely sharp with a pixel size of 2.4 x 2.4 µm. Image storage is optional via LAN or SD card (not included in delivery)

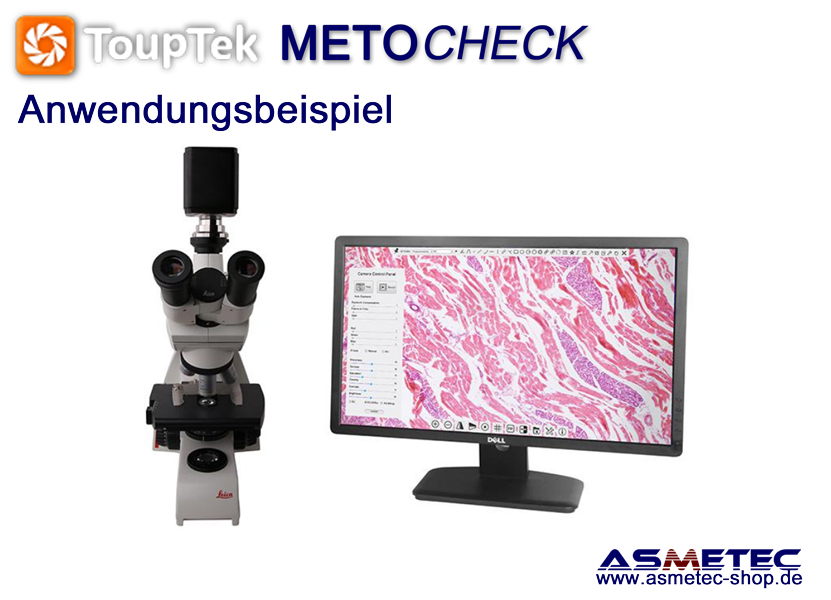

The camera can be connected directly to an HDMI monitor, the XCam-View software superimposes the monitor image with the controls, which are then controlled via the mouse on the camera's USB port. For wireless transmission, Wireless via optional adapter, LAN and HDMI can be operated in parallel. Signal via USB 3.0 at 5 Gpbs.
Windows (from XP), Linux, Android and MacOS are suitable as operating systems for the supplied software. The camera is supplied with energy via the supplied 12 V power adapter.

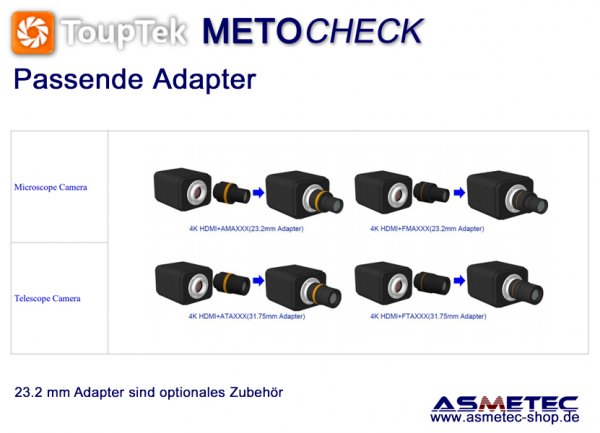

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series.
Camera adapters you can find here We recommend adapter 0,75x
Benefits:
- Auto/Manual focus with the movement of the sensor
- Sony Exmor/STARVIS back-illuminated CMOS sensor
- 4K HDMI/USB/LAN/ multiple video outputs
- 4K/1080P auto switching according to monitor resolution
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- Embedded XCamView for the control of the camera and image processing
- Excellent ISP with local tone mapping and 3D denoising
- ToupView/ToupLite software for PC
- iOS/Android applications for smart phones or tablets
The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
free after sale service
Main technical data:
Sensor: Sony IMX 183C, CMOS, 4k/1080p 1/1.06"
USB-Port 3.0 , LAN
G-Sensivity: 461 mV - 1/30 s
Dark signal: 0.21 mV - 1/30 s
FPS resolution: 30 fps - 3840 x 2160 (HDMI + LAN) - 15 fps - 3840 x 2160 (LAN / USB)
Exposure: ERS (electronic rolling snap) 0.04 ~ 2000 ms
Pixel size: 2.4 x 2.4 µm
Binning: 1x1
Power supply: 12V / 1 A
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Scope of delivery:
USB-Camera with C-Mount
Power adapter 12 VDC
HDMI-cable
USB-Mouse
Software on CD
Technical Data

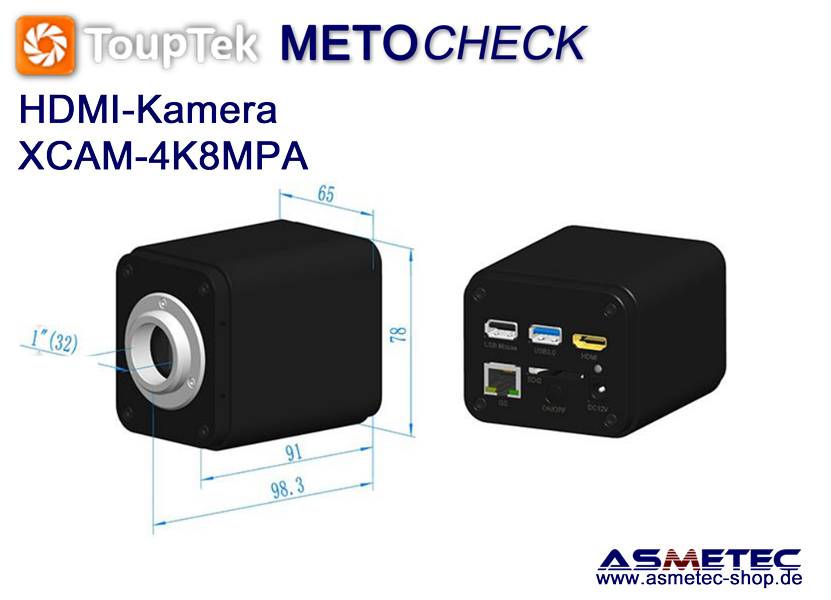

| Beschreibung | Daten / Data | Description |
| Markenname | Touptek | Brand name |
| Modell | XCAM4K16MPA | Model |
| Gewinde | C-Mount | Thread |
| USB | USB 3.0 | USB |
| Pixel | 3840 x 2160 4k-HDMI | Pixel |
| Pixelgröße | 2.4 x 2.4 µm | Pixel size |
| Sensor | Sony CMOS IMX183-C | Sensor |
| Sensor Größe | 1/1.06" - 13.06 x 7.034 mm | Sensor size |
| G-Empfindlichkeit | 461 mv with 1/30s | G-Sensivity |
| Dunkelsignal | 0.21 mv with 1/30s | Dark signal |
| FPS | 30 - 3840x2160(HDMI + LAN) / 15 - 3840 x 2160 (USB) | FPS |
| Binning | 1x1 | Binning |
| Belichtung | 0.04 ms ~ 2000 ms | Exposure |
| Spekralbereich | 380 - 650 nm (mit IR-Filter) | Spectral range |
| Weißabgleich | ROI / Manuell / Temt-Tint | Whie balance |
| Capture | Native C/C++, C#, Directshow, Twain, Labview | Capture |
| Aufnahme | Einzelbild, Film - still picture, movie | Recording |
| Kühlung | Umgebungsluft | Cooling |
| Betriebsbereich | -10~+50°C, 30-80% rH | Operating environment |
| Lagerbereich | -20~+60°C, 10-60% rH | Storage |
| Spannungsversorgung | 12VDC via power adapter | Power supply |
| Abmessungen | 65 x 78 x 98 mm | Sizes |
| Betriebssystem | Microsoft Windows ab XP ~ Win10, (Mac OS X), Linux, Android | Operating system |
| PC-Anforderungen | CPU > 2.8 GHz, USB 2.0, Monitor > 17", CD-Rom | PC-Requirement |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Vergrößerung | Elektronische Vergrößerung = Pixels des Monitors/ Pixel des Sensors, Optische Vergrößerung = Objektivvergrößerung x Reduktionslinse, Systemvergrößerung = elektronische x optische Vergrößerung - Electronic magnification= pixels of full screen monitor/ pixel of sensor, Optical magnification= objective magnification x reduction lens magnificaion, system magnification = elextronic x optical maginification | Magnification |
| Hinweis | Die tatsächliche Vergrößerung ist abhängig von vorhandenen Objektiven, Adaptern, Abständen und der Monitorgröße - The magnification is determined by used objectives, adapters, distances and monitor size. | Notes |
| Technische Daten | basieren auf Herstellerangaben, können ohne Voranzeige geändert werden, Irrtum vorbehalten - based on manufacturers data, may be changed without prior notice, Errors and omissions excepted | Technical data |
