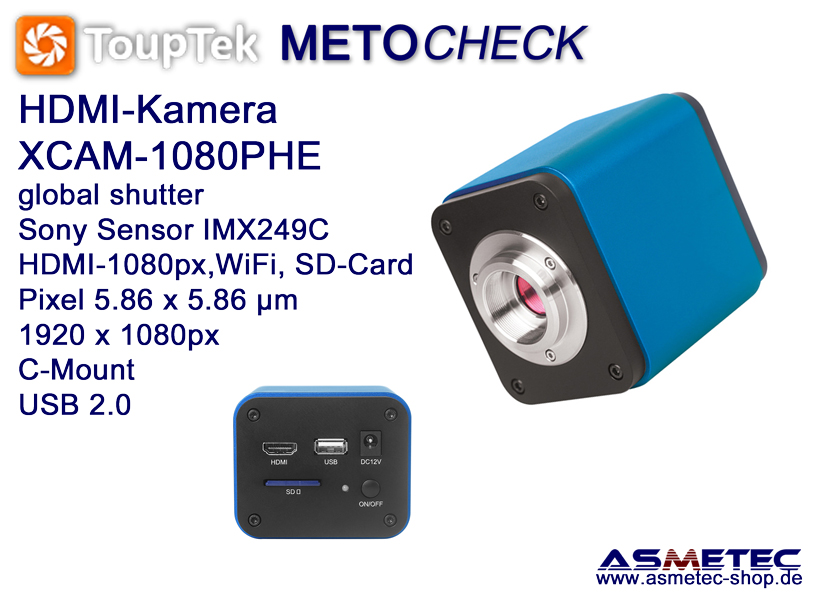

USB-Camera Touptek XCAM-1080PHE, HDMI-1080px, Wifi, SD-Card, global shutter

comes with C-mount, Sony CMOS sensor, HDMI-Output and Wifi-Adapter

The Touptek USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The HDMI camera replaces or supplements the standard eyepiece of a microscope. The supplied software with a English user interface enables measurements (lengths, areas, angles, circles, etc.) and image comments, single images and film recordings - ideal for quality control and assurance, use as teaching aids, for demonstration purposes and presentations, school, hobby and job.

The integrated Sony CMOS sensor IMX249C - 1/1.2 "(11.25 x 6.33 mm) with greatly improved image geometry, contrast and sensitivity shows even edge areas absolutely sharp with a pixel size of 5.86 x 5.86 µm. Image storage is optional via USB or SD card (not included in delivery)

The camera can be connected directly to an HDMI monitor, the XCam-View software superimposes the monitor image with the controls, which are then controlled via the mouse on the camera's USB port. For wireless transmission, the WiFi adapter supplied is connected to the camera instead of the mouse and the computer is then connected to this adapter. Wireless via optional adapter, USB and HDMI can be operated in parallel.

Windows (from XP), Linux, Android and MacOS are suitable as operating systems for the supplied software. The camera is supplied with energy via the supplied 12 V power adapter.

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series.

Camera adapters you can find here  We recommend adapter 0,75x


Benefits:

• All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor
• For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XcamView
• 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application
• For HDMI application, 5.04M resolution image(2592*1944 XCAM1080PHB) or 2.0M resolution image(1920*1080 XCAM1080PHD/PHE(Global Shutter for PHE)) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved
• With the USB WiFi adapter, the XCAM1080PHB/PHD/PHE can be used as WiFi camera, the ToupView/ToupLite advanced image processing software is used to display the video and capture image. support plug and play application
• Ultra-Fine Color Engine with perfect color reproduction capability(WiFi)
• With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB)
• XCAM1080PHB/PHD/PHE can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
free after sale service

Main technical data:
Sensor: Sony IMX 249C, CMOS, 1080p 1/1.2"
USB-Port 2.0
G-Sensivity: 1116 mV - 1/30 s
Dark signal: 0.15 mV - 1/30 s
FPS resolution: 30 fps - 1920 x 1080 (HDMI) - 25 fps - 1920 x 1080 (WiFi)
Exposure: ERS (electronic global snap) 0.043 ~ 1000 ms
Pixel size: 5.86 x 5.86 µm
Binning: 1x1
Power supply: 12V / 1 A
PC-System: Windows/Linux/Mac OS multiple platforms SDK


Scope of delivery:
USB-Camera with C-Mount
Power adapter 12 VDC
HDMI-cable
WiFi Adapter
USB-Mouse
Software on CD
