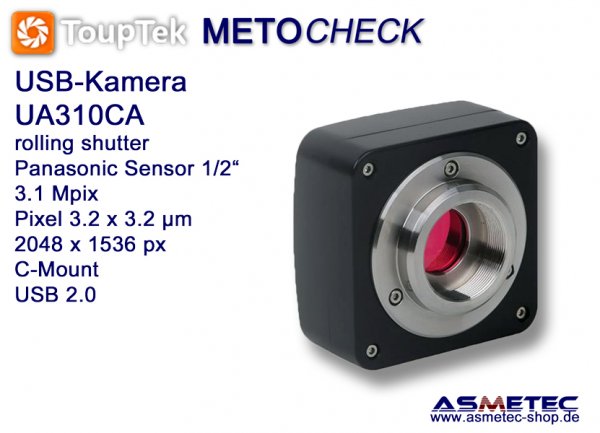

USB-Camera Touptek-UA310CA, 3.1 MPix, USB 2.0
Touptek-UA310CA, USB 2.0 microscope camera 3.1 MPix
METOCHECK edition with tightest tolerances, each camera comes with Asmetec accessories
OEM-No: ToupCam UA310CA
comes with C-mount, Panasonic CMOS sensor, USB2.0 interface.
The Touptek USB camera series UA with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The software supplied with multi lingual user interface allows measurements (lengths, areas, angles, circles etc.) as well as image comments, frame and movie captures - ideal for quality control and assurance, use as a teaching tool for demonstration purposes and presentations, school, hobby and profession.The integrated Panasonic CMOS sensor MT9T001C, 1/2" (6.55 x 4.92 mm) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 3.2 x 3.2 µm. Through USB 2.0 fast comes data transfer and power supply via a single cable. An integrated IR filter protects the sensor. The camera operates with no moving parts. It is embedded in a robust cast aluminum housing and is in precision and robustness many other industrial cameras clearly superior. The UA can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.

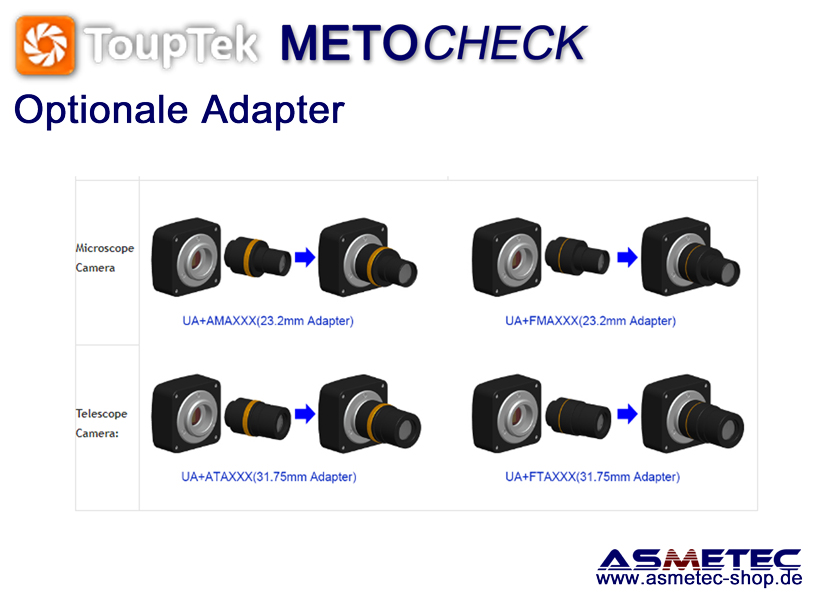

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series.
Camera adapters you can find here we recommend adapter 0.50x
UA cameras come with the integrated CNC aluminum alloy compact housing and come with advanced video & image processing application ToupView, Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API.
The complete carefree package - only available at Asmetec:
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service
Main technical data:
Sensor: Panasonic, CMOS, 3.1 MPix
USB-Port 2.0 (also suitable for 3.0)
G-Sensivity: 1 V/lux-sec
Dynamic range: 61 dB
SNR-max 43 dB
FPS/Resolution 12 fps - 2048 x 1536 px / 32 - 1024 x 768 px / 45 fps - 680 x 510 px
Exposure: 0.244 ~ 2000 ms
Pixel size: 3.2 x 3.2 µm
Binning: 1x1, 2x2, 3x3
Spectral range: 380 - 650 nm
Power supply: USB-Port 5 VDC
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

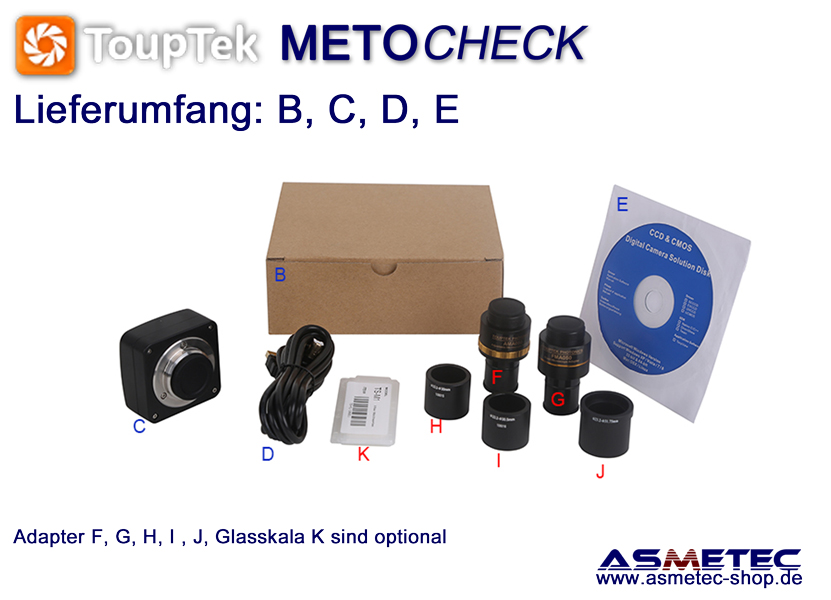

Supply:
USB-camera with C-Mount
USB-cable
Software
manual
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | Touptek | Brand name |
| Modell | UA310CA | Model |
| Gewinde | C-Mount | Thread |
| USB | USB 2.0 | USB |
| Pixel | 3.1 MPix | Pixel |
| Pixelgröße | 3,2 x 3,2 µm | Pixel size |
| Sensor | Panasonic CMOS | Sensor |
| Sensor Größe | 1/2" - 6.55 x 4.92 mm | Sensor size |
| G-Empfindlichkeit | 1 V/lux-sec | G-Sensivity |
| Dynamikbereich | 61 dB | Dynamic range |
| FPS | 12 fps - 2048 x 1536 px / 32 - 1024 x 768 px / 45 fps - 680 x 510 px | FPS |
| Binning | 1x1, 2x2, 3x3 | Binning |
| Belichtung | 0.244 ms ~ 2000 ms | Exposure |
| Spekralbereich | 380 - 650 nm (mit IR-Filter) | Spectral range |
| Weißabgleich | ROI White Balance/ Manual Temp Tint Adjustment/NA | Whie balance |
| Capture | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | Capture |
| Aufnahme | Einzelbild, Film - still picture, movie | Recording |
| Kühlung | Umgebungsluft | Cooling |
| Betriebsbereich | -10~+50°C, 30-80% rH | Operating environment |
| Lagerbereich | -20~+60°C, 10-60% rH | Storage |
| Spannungsversorgung | 5 VDC via USB-Port | Power supply |

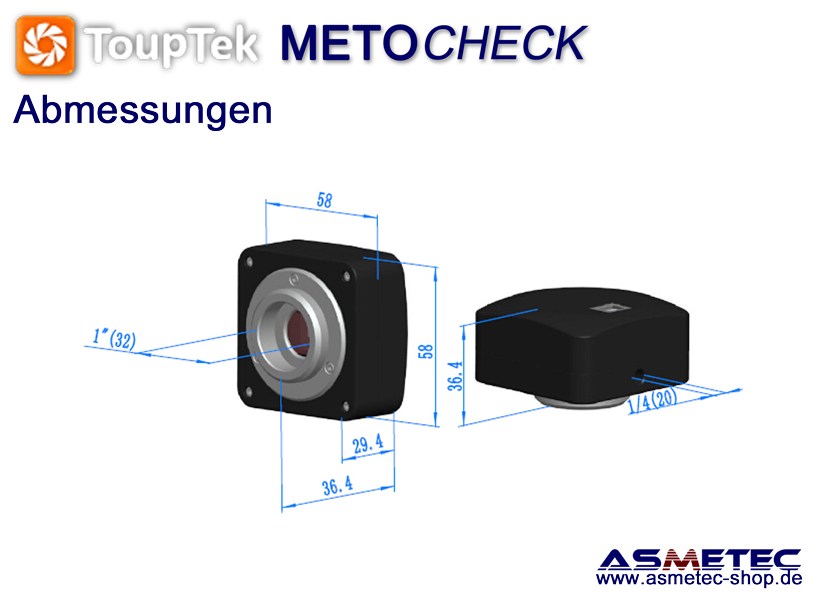

| Abmessungen | 58 x 58 x 36 mm | Sizes |
| Betriebssystem | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux | Operating system |
| PC-Anforderungen | CPU > 2.8 GHz, USB 2.0, Monitor > 17", CD-Rom | PC-Requirement |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Vergrößerung | Elektronische Vergrößerung = Pixels des Monitors/ Pixel des Sensors, Optische Vergrößerung = Objektivvergrößerung x Reduktionslinse, Systemvergrößerung = elektronische x optische Vergrößerung - Electronic magnification= pixels of full screen monitor/ pixel of sensor, Optical magnification= objective magnification x reduction lens magnificaion, system magnification = elextronic x optical maginification | Magnification |
| Hinweis | Die tatsächliche Vergrößerung ist abhängig von vorhandenen Objektiven, Adaptern, Abständen und der Monitorgröße - The magnification is determined by used objectives, adapters, distances and monitor size. | Notes |
| Technische Daten | basieren auf Herstellerangaben, können ohne Voranzeige geändert werden, Irrtum vorbehalten - based on manufacturers data, may be changed without prior notice, Errors and omissions excepted | Technical data |
