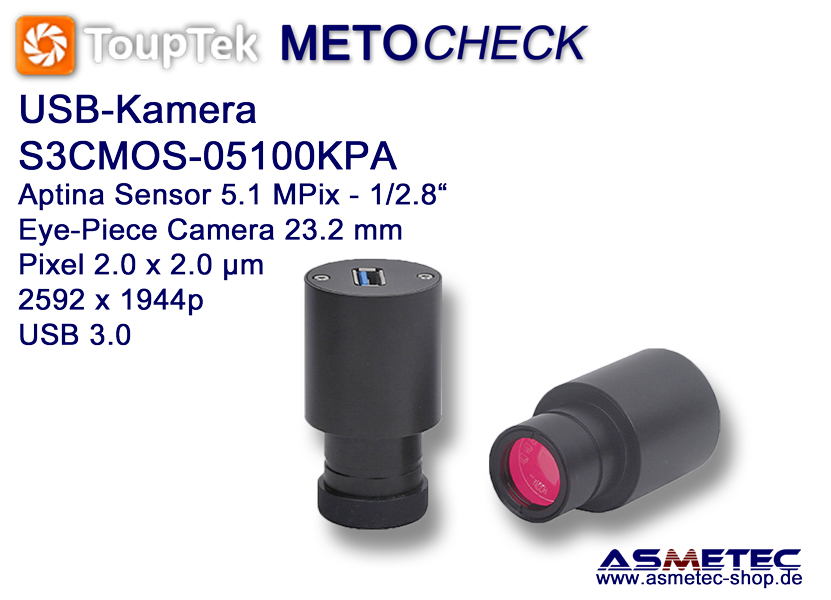

USB-Camera Touptek-S3CMOS-05100KPA, 5.0 MPix, USB 3.0
Touptek-S3CMOS-05100KPA, USB 3.0 eyepiece camera 5,1 MPix
METOCHECK edition with tightest tolerances, each camera is tested inhouse at Asmetec
OEM-Code: ToupCam S3CMOS05100KPA
comes with 23,2 mm eyepiece diameter to directly fit to microscope eyepiece tubus als also for PEAK 2034 / 2054 / 2064 microscopes and also to METOCHECK YM 7504 microscopes, USB3.0 interface.
The Touptek USB-3.0 camera with eyepiece diameter 23.2 mm is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The software supplied with multi lingual user interface allows measurements (lengths, areas, angles, circles etc.) as well as image comments, frame and movie captures - ideal for quality control and assurance, use as a teaching tool for demonstration purposes and presentations, school, hobby and profession.The integrated Aptina CMOS sensor 1/2.5" (5,7x4,28) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 2.2 microns x 2.2 microns. Through USB 3.0 fast comes data transfer and power supply via a single cable. An integrated IR filter protects the sensor. The camera operates with no moving parts. It is embedded in a robust cast aluminum housing and is in precision and robustness many other industrial cameras clearly superior.
Optionally, a plurality of adapters and extenrion sings for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for C-Mount. Thanks to the fast USB 3.0 the camera has a high frame rate.
Camera adapters you can find here
U3CMOS cameras come with the integrated CNC aluminum alloy compact housing and come with advanced video & image processing application ToupView, Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API.
The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service
Main technical data:
Sensor: Aptina, CMOS, 5.0 MPix, 1/2.5"
USB-Port 3.0 (not suitable for 2.0)
G-Sensivity: 0,53 V/lux-sec
Dynamic range: 66,5 dB
SNR-max 40,5 dB
FPS/Resolution 15 fps - 2560x1920 px / 15 fps - 2048x1936 px - 30 fps - 1920x1080 px
Exposure: auto
Pixel size: 2.2 x 2.2 µm
Binning: 1x1, 2x2
Spectral range: 380 - 650 nm
Power supply: USB-Port 5VD
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

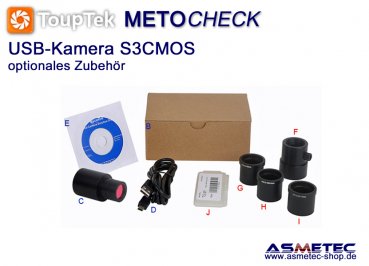

Supply:
USB-camera
USB-cable
Software
manual
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | Touptek | Brand name |
| Modell | Touptek-S3CMOS05100KPA | Model |
| Gewinde | eye piece 23,2 mm | Thread |
| USB | USB 3.0 | USB |
| Pixel | 5.1 MPix | Pixel |
| Pixelgröße | 2.0 x 2.0 µm | Pixel size |
| Sensor | Aptina CMOS | Sensor |
| Sensor Größe | 1/2,8" - 5.18 x 3.89 mm | Sensor size |
| G-Empfindlichkeit | 505 mV | G-Sensivity |
| Dynamikbereich | 70 dB | Dynamic range |
| FPS | 20 - 2592x1944 / 20 - 1280x960 / 20 - 640x480 | FPS |
| Binning | 1x1 | Binning |
| Belichtung | auto | Exposure |
| Spekralbereich | 380 - 650 nm (mit IR-Filter) | Spectral range |
| Weißabgleich | ROI / Manuell / Temt-Tint | Whie balance |
| Capture | Native C/C++, C#, Directshow, Twain, Labview | Capture |
| Aufnahme | Einzelbild, Film - still picture, movie | Recording |
| Kühlung | Umgebungsluft | Cooling |
| Betriebsbereich | -10~+50°C, 30-80% rH | Operating environment |
| Lagerbereich | -20~+60°C, 10-60% rH | Storage |
| Spannungsversorgung | 5VDC via USB-Port | Power supply |

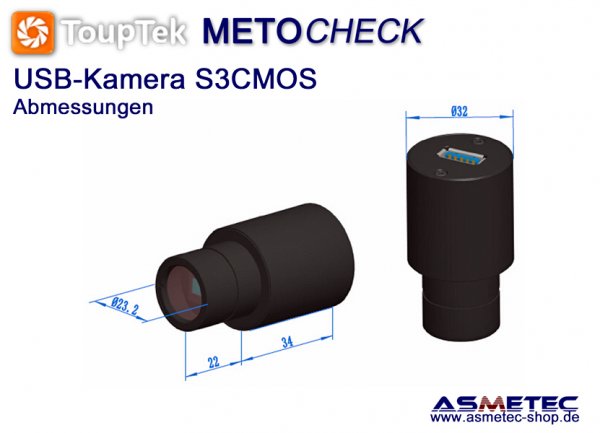

| Abmessungen | 32 mm dia / 23,2 mm dia x 56 mm | Sizes |
| Betriebssystem | Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit) OS X (Mac OS X), Linux | Operating system |
| PC-Anforderungen | CPU > 2.8 GHz, USB 3.0, Monitor > 17", CD-Rom | PC-Requirement |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Vergrößerung | Elektronische Vergrößerung = Pixels des Monitors/ Pixel des Sensors, Optische Vergrößerung = Objektivvergrößerung x Reduktionslinse, Systemvergrößerung = elektronische x optische Vergrößerung - Electronic magnification= pixels of full screen monitor/ pixel of sensor, Optical magnification= objective magnification x reduction lens magnificaion, system magnification = elextronic x optical maginification | Magnification |
| Hinweis | Die tatsächliche Vergrößerung ist abhängig von vorhandenen Objektiven, Adaptern, Abständen und der Monitorgröße - The magnification is determined by used objectives, adapters, distances and monitor size. | Notes |
| Technische Daten | basieren auf Herstellerangaben, können ohne Voranzeige geändert werden, Irrtum vorbehalten - based on manufacturers data, may be changed without prior notice, errors and omissions excepted | Technical data |
