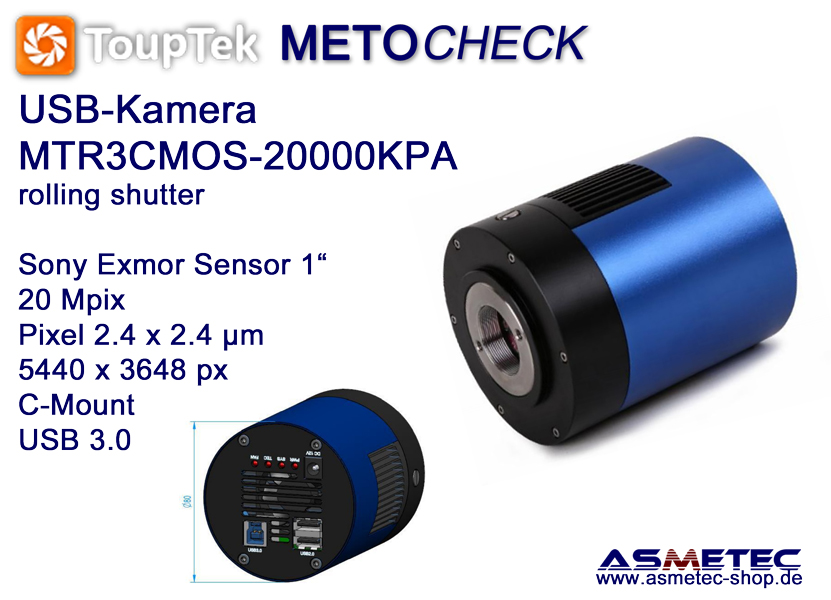

USB-Camera Touptek MTR3CMOS-20000KPA, 20 MPix, USB 3.0

Touptek MTR3CMOS-20000KPA, USB 3.0 microscope camera, 20 MPix

METOCHECK edition with tightest tolerances, comes with Asmetec accessories

OEM-Code ToupCam MTR3CMOS20000KPA


comes with C-mount, Sony Exmor CMOS sensor, USB3.0 interface.

MTR3CMOS camera adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate. With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed. USB3.0 is used as the data transfer interface to increase the frame rate.

MTR3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The MTR3CMOS can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
This camera is available with cylindric housing (standard) or square housing (special order) .

The integrated Sony Exmor CMOS sensor IMX183-C, 1" (13.05 x 8.76 mm) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 2.4 x 2.4 µm. Through USB 3.0 fast comes data transfer and power supply via a single cable. An integrated IR filter protects the sensor. The camera has an integrated electric fan. It is embedded in a robust cast aluminum housing and is in precision and robustness many other industrial cameras clearly superior.

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series. Thanks to the fast USB 3.0 the camera has a high frame rate, the data transmission can be shifted from 8bit, to 12/14bit.

Camera adapters you can find here  We recommend 1.0x adapters

C3CMOS cameras come with the integrated CNC aluminum alloy compact housing and come with advanced video & image processing application ToupView, Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API.


The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service

Main technical data:
Sensor: Sony Exmor CMOS, 20 MPix, 1"
USB-Port 3.0 (not suitable for 2.0)
G-Sensivity: 462 mV - 1/30 s
Dark Signal: 0,21 mV - 1/30 s
FPS/Resolution 5 fps - 5440x3648 / 10 fps - 4096x2160 / 15 fps - 2736x1824 /30 fps - 1824x1216 px
Exposure: 0.1 ms ~ 3600 s
Pixel size: 2.4 x 2.4 µm
Binning: 1x1, 2x2, 3x3
Spectral range: 380 - 650 nm
Power supply: USB-Port 5VDC / 12 VDC via power adapter supplied
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

Supply:
USB-camera with C-Mount
USB-cable
Power adapter
Software
