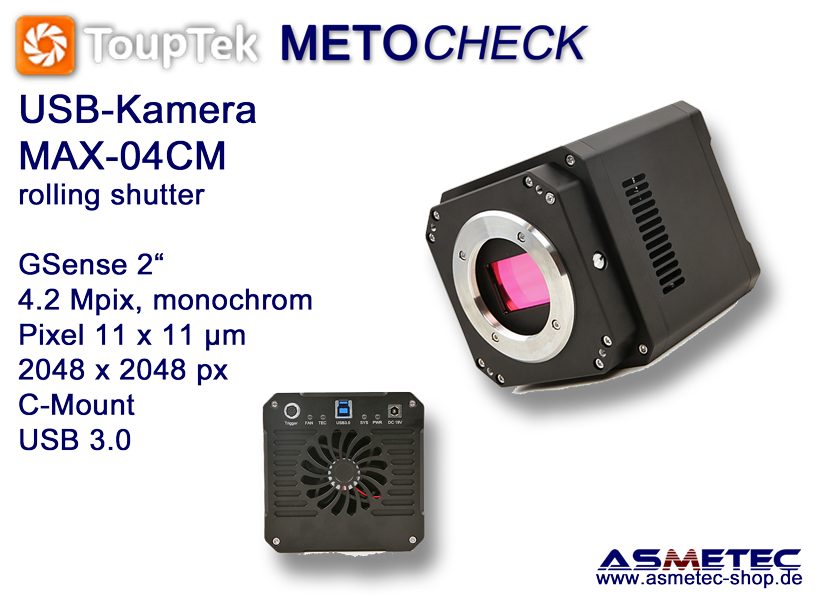

USB-Kamera Touptek MAX-04CM, 4.2 MPix, monochrome, USB 3.0, C-Mount

TUSB-Kamera Touptek MAX-04CM, 4.2 MPix, monochrom, USB 3.0, C-Mount

METOCHECK edition with tightest tolerances, comes with special Asmetec accessories

OEM-Code ToupCam MAX04CM


comes with C-mount, GSENSE CMOS sensor, USB3.0 interface.

The MAX series cameras were newly developed by Touptek in 2021. They are very high quality cameras with large sensors, integrated, active cooling technology to reduce sensor noise, USB 3.0 for fast data transfer. These cameras are ideally suited for dark field recordings, astro photography, UV recordings, etc. in the scientific and technical field.

The cameras can optionally be supplied with an M52x0.75 mm thread (suitable adapters can be found in the area of ​​our camera adapters) or with the standard C-mount connection (please state in the comments when ordering, because these cameras are only manufactured according to customer orders.

The integrated GSense CMOS sensor 400BSI-M-UV, 2 "(22.53 x 22.53 mm) with greatly improved image geometry, contrast and sensitivity shows even edge areas absolutely sharp with a pixel size of 11 x 11 µm. Depending on the model, the spectral range extends from 200 to 1000 nm . The sensor is cooled by a Peltier element to up to 40°C below the ambient temperature, which results in significantly improved noise behavior. An integrated fan improves the exchange of air and also prevents possible moisture problems. Active cooling is powered by an external 19 VDC power adaptor supplied.

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.l) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be installed on most copmmon professional microscopes ansd telescopes. Thanks to the fast USB 3.0 the camera has a high frame rate, the data transmission can be shifted from 8bit, to 12/14bit.

Camera adapters you can find here   With M52x0,75 we recommend adapter M52 - 2.25x

MAX cameras come with the integrated CNC aluminum alloy compact housing and come with advanced video & image processing application ToupView, Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API.

The basic characteristic of MAX can be summarized as follows:

• Standard C-Mount camera with SONY Exmor or GSENSE CMOS sensors from 4.2M to 61M
• Big pixels or full-frame CMOS sensor
• two-stage TE-cooling with controllable electric fan
• Sensor chip cooling up to-40°C below ambient temperature
• Working temperature can be regulated to specified temperature in 5 minutes
• Smart structure to assure the heat radiation efficiency and avoid the moisture problem
• IR-CUT/AR coated windows(Optional)
• M52 x0.75 or C-mount
• USB3.0 5Gbit/second interface ensuring high speed data transmission
• Up to 1000 seconds long time exposure
• Embedded up to 16bit hardware ISP module
• Including 2-D denoising and sharpening
• Ultra-Fine TM color engine with perfect color reproduction capability
• Support the capture of video and image in software / hardware trigger mode
• With advanced video & image processing application ToupView
• Support both video and trigger modes
• Providing Windows/Linux/Mac OS multiple platforms SDK
• Native C/C++, C#/VB.NET, DirectShow, Twain control API;

​
free after sale service

Main technical data:
Sensor: GSense 400BSI-M-UV, CMOS, 4,2 MPix, 2"
USB-Port 3.0
G-Sensivity: 3.25x108 (e-/((W/m2).s)) Peak QE 95.3% @560nm 345(e-/s/pix)
Dark signal: 68.5dB / 50 dB
FPS/Resolution 37 fps - 2048 x 2048 px / 37 fps - 1024 x 1024 px
Exposure: 0.1 ms ~ 1000 s
Sensisivity: 200 ~ 1000 nm
Pixel size: 11 x 11 µm
Binning: 1x1, 2x2
Data rate: 8bit 12/14 bit
Power supply: USB-Port 5VDC + 19 VDC viy power adapter
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

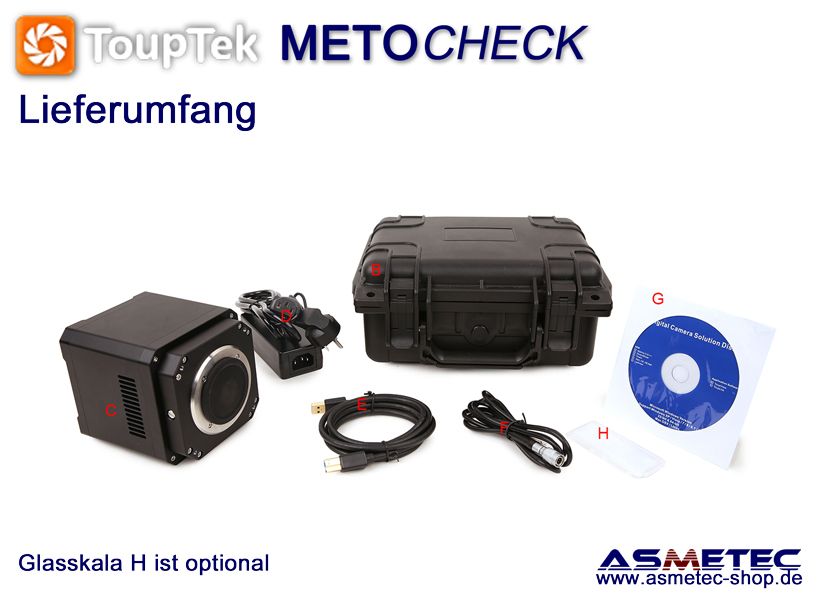

Supply:
USB-camera with C-Mount
transport box
USB-3.0 cable
I/O cable
power adapter 19 VDC
Software
manual
