USB-Camera Touptek EXCCD-00440KMA, USB 2.0, 0.4 Mp, CCD sensor, monochrome

Touptek-EXCCD-00440KMA, USB 2.0, 0.4 Mp, CCD sensor, monochrome

METOCHECK edition with tightest tolerances, comes with Asmetec accessories

OEM-No. ToupCam EXCCD00440KMA


The Touptek USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The supplied software with a English user interface enables measurements (lengths, areas, angles, circles, etc.) and image comments, single images and film recordings - ideal for quality control and assurance, use as teaching aids, for demonstration purposes and presentations, school, hobby and job.

The integrated Sony CCD sensor ICX829AL-M - 1/2" (6.43 x 4.80 mm) with greatly improved image geometry, contrast and sensitivity shows even edge areas absolutely sharp with a pixel size of 8.6 x 8.3 µm. Data transfer via USB 2.0. The EXCCD can be widely used in low field light environment and microscope image capture and analysis with higher frame rate.

Windows (from XP), Linux, Android and MacOS are suitable as operating systems for the supplied software. The camera is supplied with energy via USB 2.0.

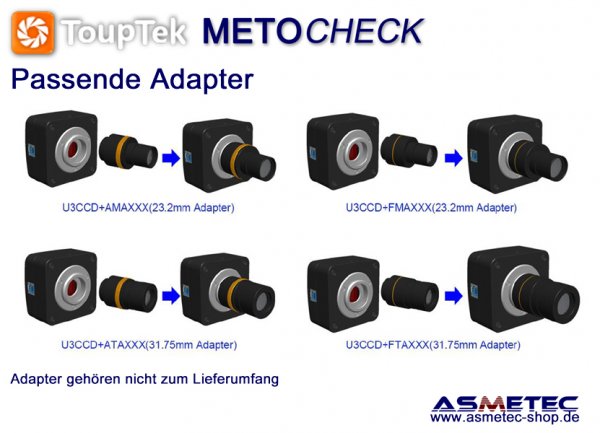

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series.

Camera adapters you can find here  We recommend adapter 0.50x


Benefits:

• Standard C-Mount camera with SONY ExView HAD CCD sensors from 0.3M ~1.4 MPix
• IR-CUT Coated Windows
• Up to 3600s long time exposure (depending on version)
• USB 2.0 interface ensuring high speed data transmission
• Ultra-Fine TM color engine with perfect color reproduction capability
• With advanced video & image processing application ToupView
• Providing Windows/Linux/Mac OS multiple platforms SDK
• Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
free after sale service

Main technical data:
Sensor: Sony ICX829AL-M, CCD, 1/2"
USB-Port 2.0
G-Sensivity: 2800 mV - 1/30 s
Dark signal: 2 mV - 1/30 s
FPS resolution: 46 fps - 748 x 578 px
Exposure: ERS (electronic rolling snap) 0.2 ms ~ 3600 s
Pixel size: 8.6 x 8.3 µm
Binning: 1x1
Power supply: 5 VDC via USB 2.0
PC-System: Windows/Linux/Mac OS multiple platforms SDK

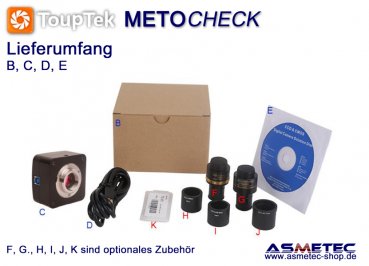

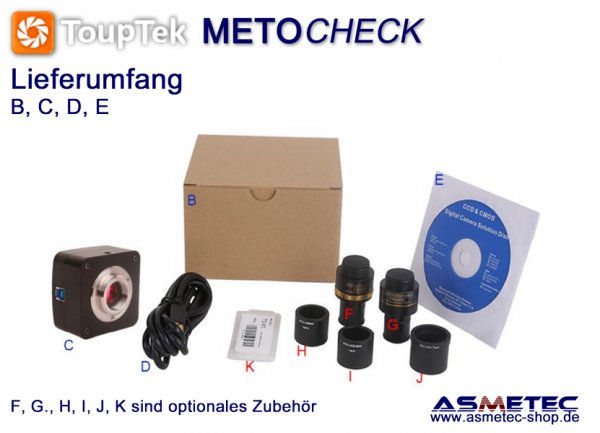

Scope of delivery:
USB-Camera with C-Mount
USB-cable
Software on CD
