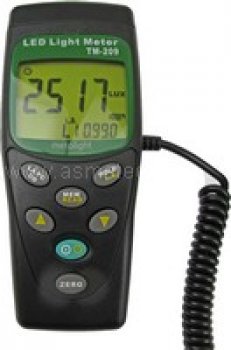

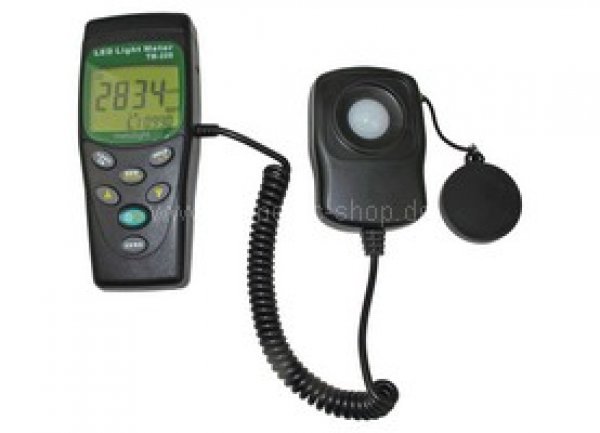

TM-209 Luminous Intensity Measurement
- LED Light
- All Visible Light Source
The Must-Have for all who need to measure the true Lux of any visible light
Other than any commodoty Lux-Meter this new TM209 is calibrated to the sensitivity of human eyes, so it really tells the true pupil lumen of any light source in the range of 380 to 700 nm
The flux of light received in an unit area of a certain side being shown is popularly known as illumination. The measuring unit in both UK and USA is known as footcandles light, but in Europe it is also known as meter candle light. One foot-candles light is the illumination of light that falls on one side which is one foot away from a one foot candle light and exactly intersecting with the light. 1 Fc = 1 Lm/ft, it is also called Lux. The flux of light being received in each square meter is called the illumination of 1 Lumen.
1 Fc = 10.764 Lux, 1 Lux = 0.09290 Fc

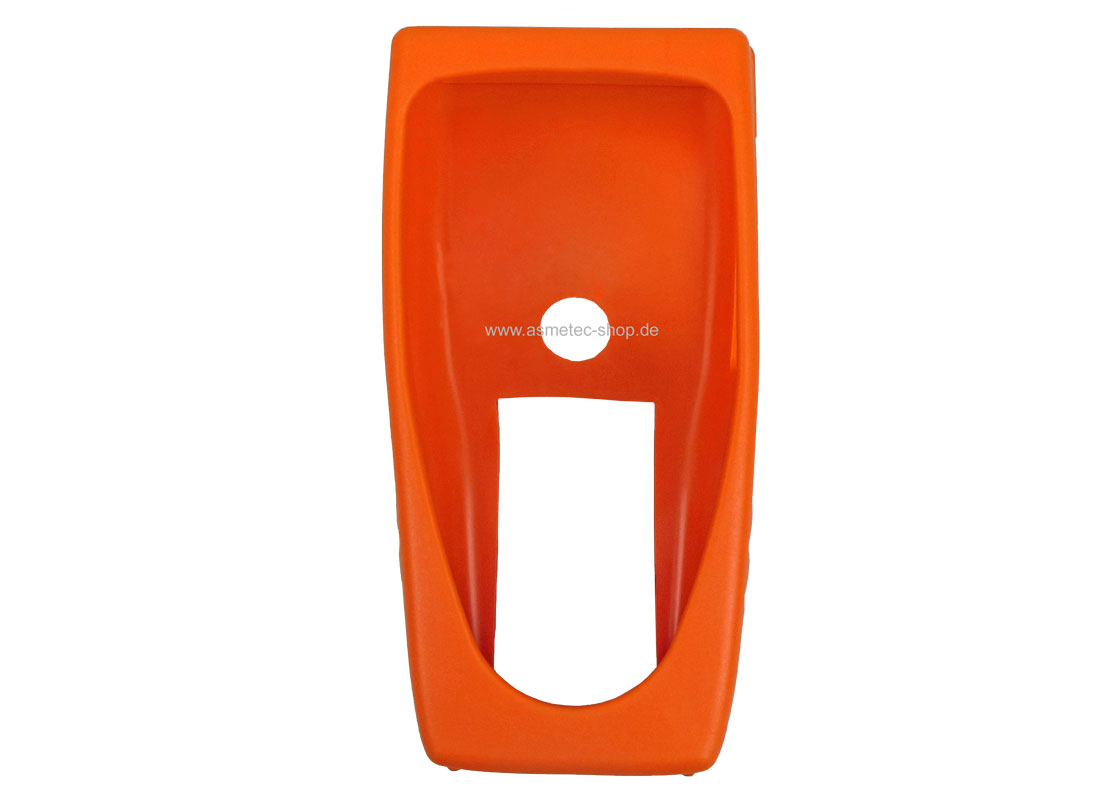

We offer an optional silicone protection polster (please order as extra if required)
Features of the new TM-209 light meter:

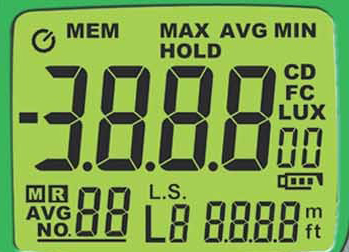

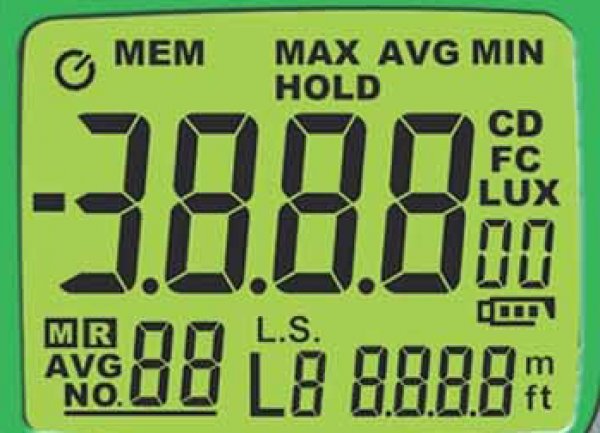

Display:
- 3 3/4 digits LCD with maximum reading 3999.
- Overload indication
- Low battery indication
Functions:
- According to JISC1609:193 and CNS 5119 general A class specifications.
- Sample rate 2.5 times per second for digital display
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range
- 99 records storage (memories)
- Cosine angular corrected.
- Data hold
- measuring light sources: LED white light and all visible light
- Zero adjustment
- Auto power off (about 5 minutes) and disable function
- Auto ranging
Specifications
| Display |
4000 count, max display 3999 |
| Sensor |
Silicon photodiode and filter |
| Measure Range |
40 - 400000 Lux |
| |
40 - 400000 Fc |
| Accuracy |
+/- 3% (calibrated to standard incandescent lamp 2856°K and corrected LED day white in white, amber, green, blue, red..
6% other visible light source
|
| Angle deviation |
| 30° |
+/- 2% |
| 60° |
+/- 6% |
| 80° |
+/- 25% |
|
| Power supply |
9 V battery |
| Battery life |
about 200 hours |
| Dimensions |
| Meter |
38 x 55 x 130 mm |
| Sensor |
25 x 55 x 80 mm |
|
| Weight |
250 g |
| Accessories |
User manual, carrying case, 9V battery |
| Light correcting facors |
adjustable by user |
| L0 - standard white light source A |
1.000 |
| L1 - LED white day light |
0.990 |
| L2 - Neon blue light |
1.286 |
| L3 - Neon green light |
1.167 |
| L4 - Neon pink light |
0.760 |
| L5 - Neon purple light |
0.804 |
| L6 - Neon red light |
0.671 |
| L7 - Neon yellow light |
0.840 |
| L8 - Neon white light |
0.870 |
| L9 - Standard light source A |
1.000 |
