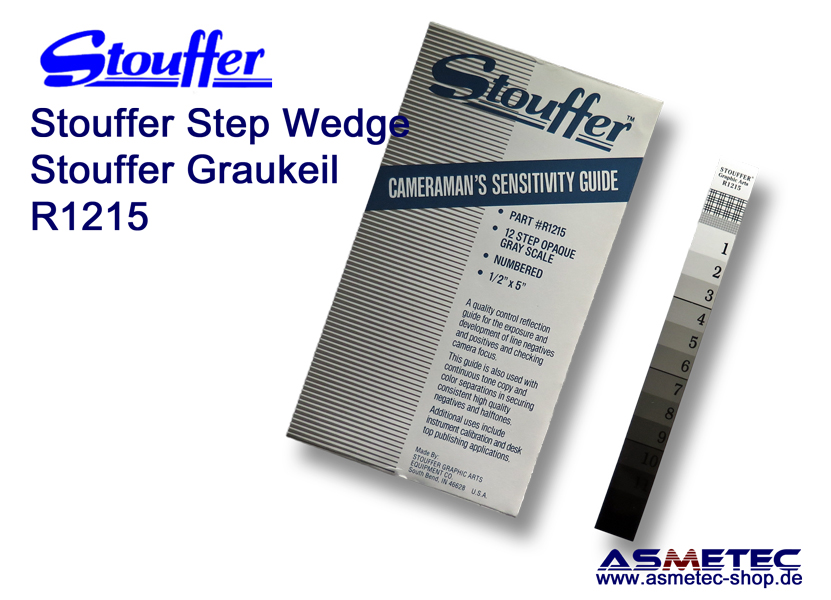

Stouffer R1215CLC, 12-step reflection guide, color calibrated
12 steps, increment 0.15, 1/2 x 5", Dmax 2.05
Step-Wedge R1215CLC-Data
12 steps, increment 0,15, Dmax: 2.05, size 12,7 x 127 mm
The R2110CLC Reflection Color Calibrated Guide incorporates traditional with digital imaging by offering optical density CMYK and L*a*b readings in calibrated documentation. By using calibrated data it becomes easy to create a workable reference for Levels and/or Curves in photo-editing software.
The Cameraman's 12-step guide is designed primarily for copy camera use. Like other Stouffer reflection step tablets it can also be used for scanning, densitometry and other quality control applications
RoHS-Compatibility:
Products manufactured and sold by Stouffer Industries are RoHS compliant. All step wedges, step tablets, gray scales, and any other photosensitive quality control device made contain no or less than agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
Longlivety:
Stouffer Step Tablets and Gray Scales are made under controlled conditions to meet or exceed the requirements for archival permanence following procedures recommended by the manufacturers of the materials. Archival permanence is usually defined up to 10 years or more. Studies at the National Institute of Science and Technology have shown that the densities of this kind of step tablet will remain stable for at least four years when handled and stored with care.
The primary causes of degradation are use, followed by ( in no particular order) heat, humidity, fingerprints, splashes including spittle, chemical fumes and vapors, attempts to clean the emulsion with anything other than a soft camelhair brush, and abuse.A quality control device that is handled 40 times a day will degrade faster than one that is handled once a week. The user should set a routine to determine the frequency of replacement based upon factors occurring in-house and the foregoing discussion.
We recommend to change the step wedge after 3-6 months and immediately at visual damage
