METOLIGHT LED lamp SLG381 - 60 Watt , IP64 , 8800 lm, nature white
HiPower LED lamp modern technology with 180° beam angle and 150 lm/W efficacy
This LED lamp is an ideal replacement for HQI / HQL street lamps for use in lanterns, canopy lights, wall lights, etc. for side, standing or pending mounting. It replaces 250 Watt HID / MH / HPS / HQL lamps. The clear cover assures brightes possible light at 180° beam.
It is equipped with Samsung LED SMD 2835, 150 lm/W, CRI < 85 and has E40 base. We can also supply this lamp with E27 base.
It easily meets energy class A++ (EU 2012) D (EU 2019)
Please note to remove the existing ballast, since the LED-SLG-versions are designed to be connected tio 230 VAC directly. Witjh side mounting please assure the suppliued pölastic holde is attached to the lamp head to supprt the base.
The lamp housing meets IP64, the built-in constant current power supply is double insulated, completely sealed, with integrated protection against overtemperature and overvoltage. Unlike similar-looking lamps METOLIGHT SLG381 ( eg fan.) there are no moving parts. All electronic components are of highest quality, such as Japan Rubycon capacitors, First MOS (USA) and MPS IC (USA) chips, flame retardant, sealed special PMMA housing, ceramic isolated base etc. The this all assures long llife time of this bulb.
This new LED bulb is available in these light colours:
1900 - 2200K, extra warm, for downtown illumination, similar like sodium lamps
3000 - 3500K, warm white, like traditional bulbs40
3800 - 4200K, nature white, a full bright colourful light, esp. for shop lighting
4800 - 5500K, pure white, extra bright for warehouse / parking lot lighting
5800 - 6300K, cold white, extra bright for warehouse lighting
The LED light attracts insects significantly less than UV-emitting high-pressure lamps.
This LED lamp stands for Green Technology , extremely energy- efficient, environmentally friendly and modern lighting of streets, squares , corporate campuses , parking and indoor areas.
Installation:
The LED lamp can easily replace former high pressure bulbs with E40 base. Existing electronic ballasts must be removed before installing the LED lamp. Please note that this type of lamp is expressivly only for standing or pendant installation. In case of angled installation you need to support the lamp head by e.g. cable tie to reduce the weight pressure on the lamp socket.
Compared with high-pressure bulbs METOLIGHT SLG LED lamps save up to about 80 % of energy and deliver to a true-color , flicker-free light that also (unlike mercury vapor lamps ) are free of UV radiation is.
Warranty:
We grant 5 years limited warranty on this LED-Bulb
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-SLG381-60W | Model |
| EAN | EAN 4251192809568 | EAN |
| Betriebsspannung | 100-255 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | ~ 60,2 Watt | Input Power |
| Leistungsfaktor | Pf > 0,90 | Power factor |
| Klasse | IP64 | IP-Grade |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | Samsung SMD 2538, 150 lm/W | Light Source |
| Energieklasse | D | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 180° | Beam Angle |
| Lichteffizienz | > 150 lm/W | Light Efficacy |
| Warmweiss | 2700 - 3000K - 8500 lm - Ra > 85 | Warm White |
| Neutralweiß | 3800 - 4200K - 8800 lm - Ra > 85 | Neutral White |
| Tagweiß | 4800 - 5200K - 9000 lm - Ra > 85 | Pure White |
| Kaltweiß | 5800 - 6200K - 9100 lm - Ra > 85 | Cold White |
| Entspricht Glühlampe | ~ 640 Watt | Compares to Inc. Bulb |
| LED-Lebensdauer | < 40.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 120.000 | Switch Cycles (on/off) |
| Sockel | E40 | Base |
| Lampenkörper | PMMA | Bulb Body |

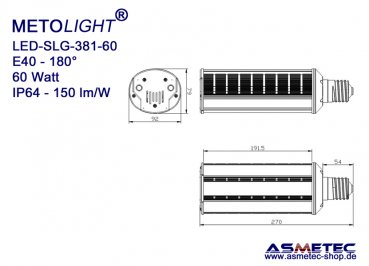

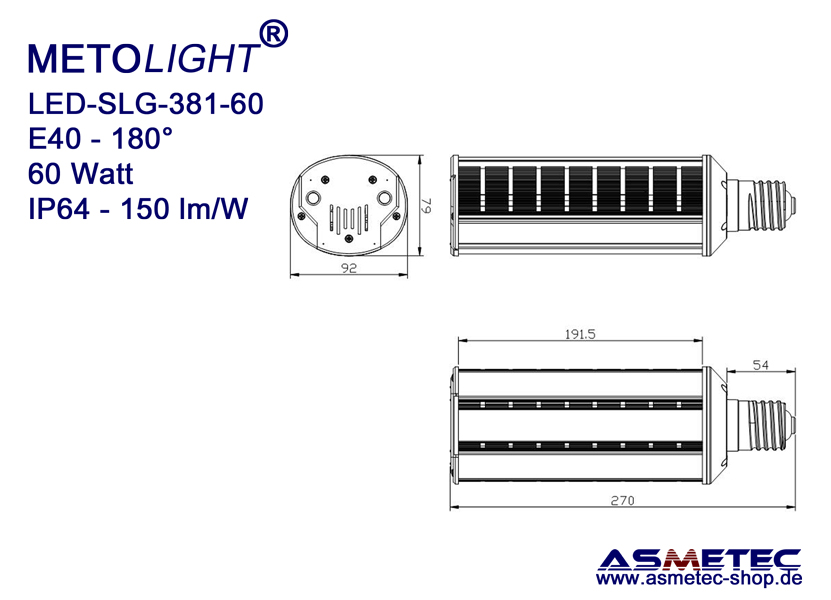

| Abmessung | 92 mm Durchmesser x 275 mm hoch (diameter x height) | Sizes |
| Gewicht | 1180 gr | Weight |
| Normen | EN 50581:2012, EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2008, EN62321:2013, EN62471:2008, EN62493:2010, EN62560:2012 | Standards |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweise | Zur Verwendung in entsprechenden Straßenlaternen oder -Leuchten bei stehender oder hängender Montage des Leuchtmittels, Vorhandene Vorschaltgeräte müssen entfernt werden / For use in street lights and lanterns with standing or pendant mouting of bulb, existing ballast must be disconnected | Notes |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Lampe für allg. Beleuchtungsaufgaben in entsprechenden Leuchten, zumeist Straßenleuchten und Laternen | LED-bulb for common lighting applicaions in suitable luminaires, mainly street lights and lanterns |
| Besonderheiten | Specials |
| LED-SMD mit hoher Effizienz und Farbwiedergabetreue, 180° Lichtwinkel, IP64, gekapseltes Netzteil, kurzschlußfest mit Übertemperatursicherung | LED-SMD, high effficacy and CCT, IP64, 180 degree light beam, encapsuled driver, short break protected and over temperature protected |
| Installation | Installation |
| In Leuchten mit entsprechender Fassung anstelle bisheriger Glühlampen oder Hochdrucklampen. Lampenwechsel nur bei stromfrei geschalteten Leuchten vornehmen, vorhandene Vorschaltgeräte müssen von Elektrofachkraft entfernt werden. | In luminaires with suitable sockets to replace common incandescent bulbs or high pressure bulbs. Change bulbs only when power is off, Existing ballast must be removed by expert. |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
| Technische Daten | Technical Data |
| Technische Daten können ohne Vorankündigung geändert werden, wenn sie zur Produktverbesserung dienen. Bitte beachten Sie unsere technischen Datenblätter zu den einzelnen Produkten. | Technical data are subject to change without prior notice to improve the product. Please note our technical data sheets provided for each product. |
