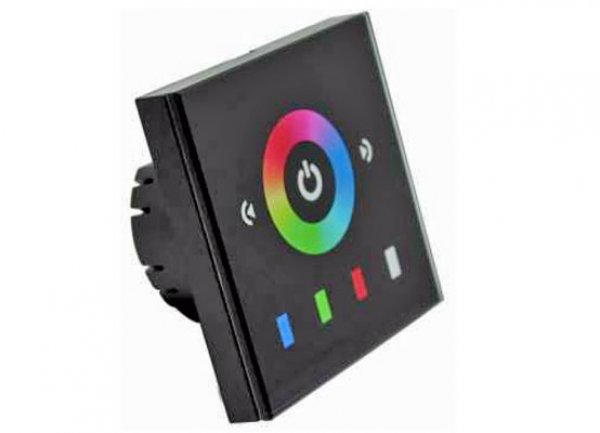

RGB-controller TM08ERS- 12 Volt / 24 Volt , max 288W
METOLIGHT Touch panel controller TM08ERSs a new high-end controller for 3colour (RGB) LEDstrip and RGB LED panels.
Benefits:
- adopts glass panel design, is beautiful and fashionable in appearance.
- white controller body
- in-wall mounting
- adopts high precision capacitance touch control chip, increases the touch sensitivity
- reduces trigger which caused by mistake.
- used for controlling a variety of lamp whose source of light is LED 12 Volt to 24 Volt DC, such as
LED-Strip or LED-Panel light
- 19 dynamic and 20 static light programs
Technica Data
| Touchpad |
Glass |
| Input voltage |
12 - 24 V DC |
| Output voltage |
12 - 24 V DC |
| Output channels |
3 |
| Connection mode |
common Anode |
| Output current per channel |
4 A max. |
| Output power at 12 V |
144 W max. |
| Output power at 24 V |
288 W max. |
| Static power consuption |
< 1 W |
| Working temperature |
- 20 ~ 60°C |
| |
|
| Static mode |
20 colours, brightness adjustable |
| Static mode steps |
0-255 |
| Dynamic mode |
19 programs, speed adjustable |
| Dynamic mode steps |
10 |
| |
|

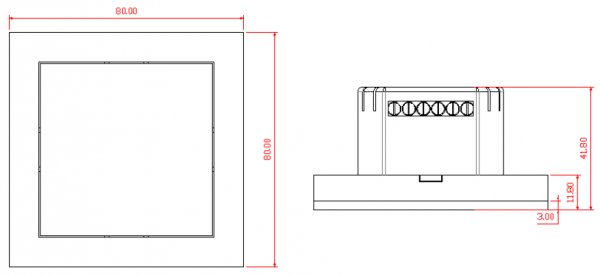

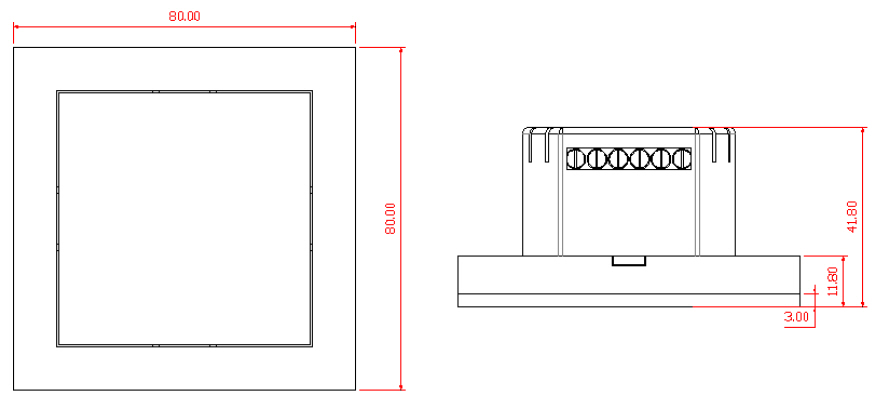

| Outer size |
80 x 80 x 42 mm |
| Suitable for |
60 mm outlet socket |
| Weight |
130 g |
| Note |
Installation only by expert, do not overload |

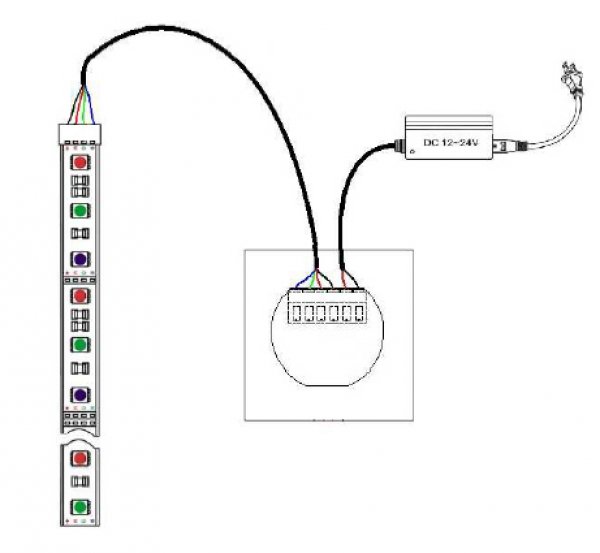

installation only by expert, correct lectrical polarity needs to be observed, else led strips will be damaged
please ensure that the wattage of the power supply and (optional) controller is enough to supply the LED-strips.
Damaging by wrong connection or corrosion will not be honoured as materials defect.
