Peak Glas Scale 1983-10W -white printing
Glas scale PEAK 1983-10W - white
Replacement scale for PEAK scale loupe 1983
Replacement scale with white printing for measures on dark background.

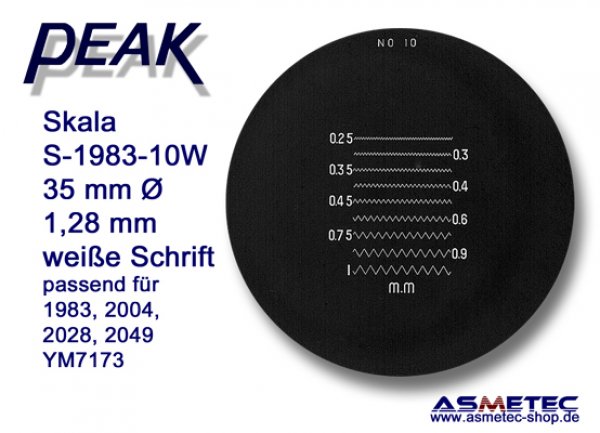

Note: for a better view of the printing the scale was taken with a black background. However this glas scale is glass clear and with a white printing
The precise glas scale is suitable for these scale loupes:
Peak 1983, 2004, 2028, 2049
Metocheck YM 7173, 7173-LED
and other scale loupes with scale diameter 35 mm and 10x magnification.
This glas scale also can be used as calibration scale for video-microscopes with metrology options.
Optionally we offer at extra cost a calibration certificate acc. to VDI/VDE/DGQ 2618 Blatt 27 Ü
Due to the calibration your delivery time would be expanded to 4-6 weeks
Diameter: 35 mm
Thickness 1,28 mm
