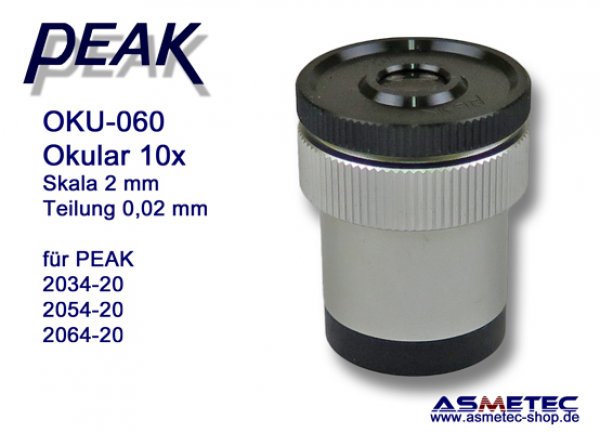

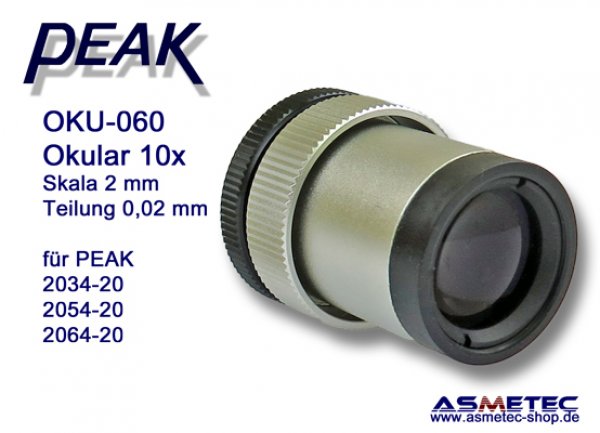

PEAK-Optics OKU-060, Eyepiece with scale 2 mm

PEAK OKU-060, Exepiece 10x

Eyepiece 10 x with scale 2 mm

The PEAK eyepieces series OKU match the peak microscopes of series 2034, 2054 and 2064. They are simply inserted into the tube of the microscope. An existing microscope can quickly be converted to a different magnification using suitable lenses type OJ. The eyepieces have always a 10x magnification, but different scales. The lens can be moved by turning of the adjusting ring, so that the scale can be adjusted to the diopters of the viewer. The for each magnification (lenses series Peak OJ) associated eyepieces with built-in measuring scales can be easily replaced by pulling it out. If additional objectives are used only for visual inspection, you need no further eyepieces. To measure in various magnifications, however, the lens and the right eyepiece must be inserted into the microscope. The eyepieces are supplied without the rubber eyecup. This is also available as a spare part.

Peak-OKU-060 is originally supplied with these microscopes:
Peak 2034-60-Series, Peak 2054-60-Series, Peak 2064-60-Series

These combinations are needed for correct measures:

OKU-020 - OJ-020 - 20x magnification
OKU-040 - OJ-040 - 40x magnification
OKU-060 - OJ-060 - 60x magnification
OKU-100 - OJ-100 - 100x magnification
OKU-150 - OJ-150 - 150x magnification
OKU-200 - OJ-200 - 200x magnification
OKU-300 - OJ-300 - 300x magnification


PEAK OKU-060
Magnification: 10x
Focus: via adjusting ring
Scale length: 2 mm
Scale division: 0,02 mm
Sizes: 23 x 35 mm (diameter x height)
Weight: 60 gr
