PEAK-Optics OJ-200, lens 20x for Peak 2034, 2054, 2064

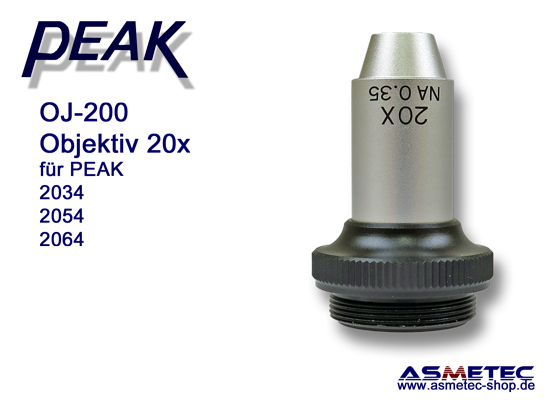

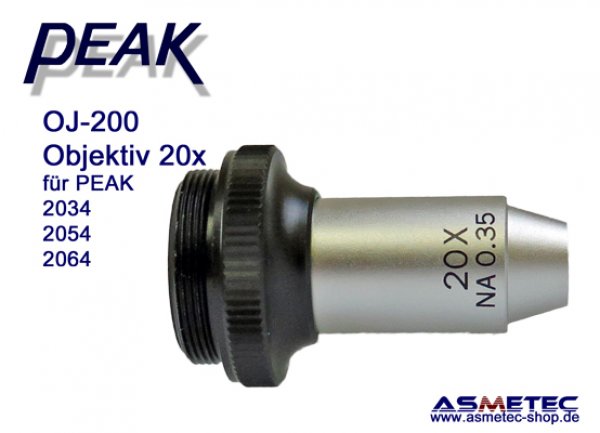

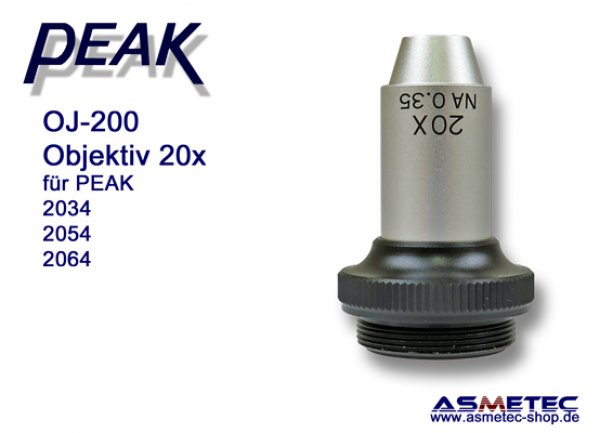

PEAK OJ-200, lens 20x

objective (lens) with screw connection

The PEAK objectives series OJ match the peak microscopes of series 2034, 2054 and 2064. They are simply screwed into the tube of the microscope. An existing microscope can quickly be converted to a different magnification. The eyepieces type OKU have always a 10x magnification but different scales. In combination with the objectives the final magnification is achieved by multiplying both magnifications. For each magnification (lenses series Peak OJ) associated eyepieces type OKU with built-in measuring scales can be easily replaced. If additional objectives are used only for visual inspection, you need no further eyepieces. To measure in various magnifications, however, the lens and the right eyepiece must be inserted into the microscope.

Peak-OJ-200 is originally supplied with these microscopes:
Peak 2034-200-Series, Peak 2054-200-Series, Peak 2064-200-Series

These combinations are needed for correct measures:

OKU-020 - OJ-020 - 20x magnification
OKU-040 - OJ-040 - 40x magnification
OKU-060 - OJ-060 - 60x magnification
OKU-100 - OJ-100 - 100x magnification
OKU-150 - OJ-150 - 150x magnification
OKU-200 - OJ-200 - 200x magnification
OKU-300 - OJ-300 - 300x magnification


PEAK OJ-200
Magnification: 20x
Focus: via microscope
Sizes: 23 x 32 mm (diameter x height)
Weight: 60 gr
