PEAK-Optics 2036-25 scale pen microscope, 25x
ask for quotation

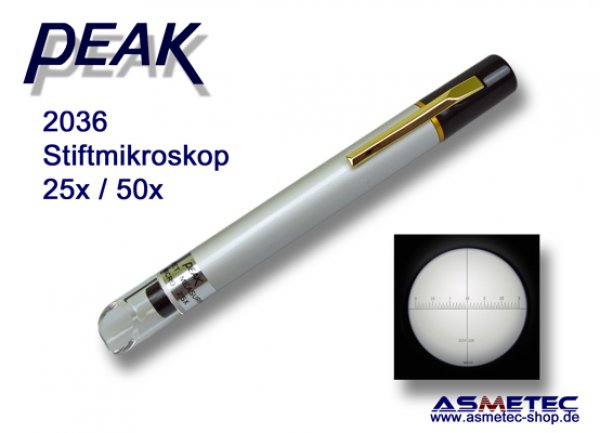

PEAK 2036-25 Pocket Microscope, 25x
pen microscope with scale 3 mm - 0,05 mm division
The PEAK 2036 series is available with magnification factors of 25x and 50x. They are equipped with a metric scale.

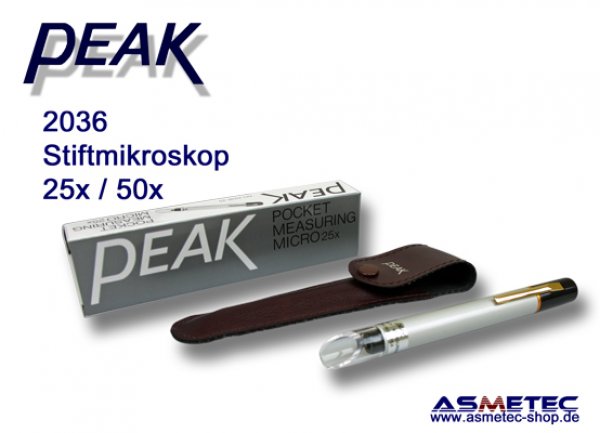

The microscope can be focussed by setting it down on the screw-on acrylic tip. Pivoting around the set-down point focuses the measuring point. Representation in ocular is a mirror image. The diameter of only 12.4 millimetres allows inspection at points where other microscopes have no chance whatsoever. The high luminosity lenses require no further illumination. Synthetic leather case included.
Accessories and spare parts:
Spare parts for microscopes you can find here:
USB-camera 1008XS is available to turn this microscope into a video microscope.
Magnification: 25x
Field of view: 3,3 mm
Focus: via set point angle

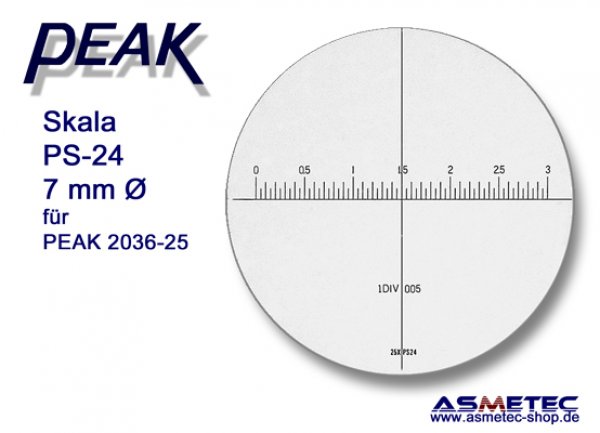

Scale: 3 mm long - 0,05 mm division
Optic: aplanat, distortion free
Sizes: 12,4 x 124 mm (diameter x length)
Weight: 12 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2036-25 | Model |
| Vergrößerung | 25x | Magnification |
| Fokussierbar | über Aufsetzwinkel - via set point angle | Focussable |
| Linsenart | Glas | Lens type |
| Sichtfeld | 3,3 mm | Field of view |
| verzeichnungsfrei - distortion free | ||
| Skala | ja - yes | Scale |
| Skalenlänge | 3,3 mm | Scale length |
| Skalenteilung | 0,05 mm | Scale Grid |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 12,4 x 124 mm | Sizes |
| Gewicht | 13 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Mikroskopen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Mikroskope nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
