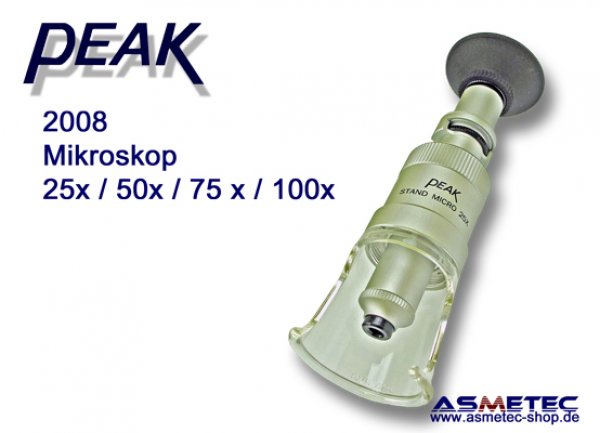

PEAK-Optics 2008-100, Stand Microscope, 100x

PEAK 2008-100 Scale Microscope, 100x

Stand microscope, high resolution

All Series 2008 scale microscopes are focused by the coaxial rotation of the barrel.
Versions with enlargements of 25 x, 50 x, 75 x and 100 x are available.
The ocular can be focused to the scale, which in contrast to the Series 2034 is not built into the ocular.

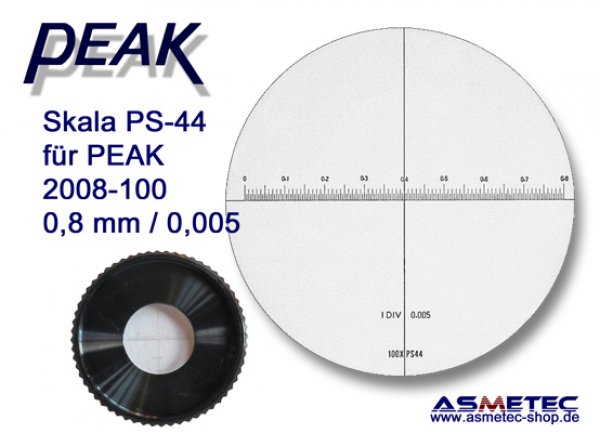

The measuring scale is separately fitted above the cylinder in a receptacle. The measuring scale can be easily changed by unscrewing the top of the barrel.
Since the scale can be rotated within the microscope, you do not have to revolve the whole instrument during the measuring process. In addition two other templates are available.
These can be used for measuring angle designations as well as making simple length measurements. No exchangeable objectives are available for the measuring microscopes.

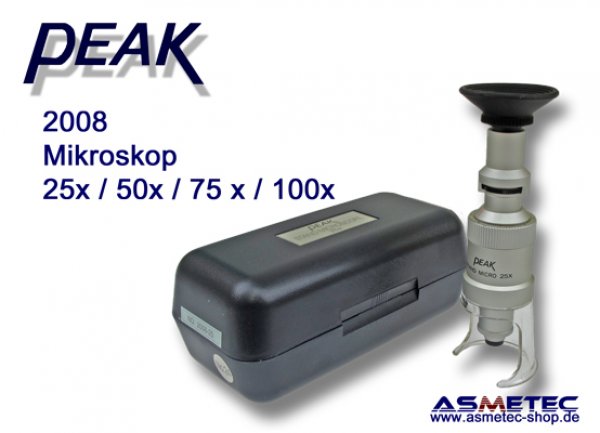

A transport box protects device against damage.


Accessories and spare parts:
here.

Optionally a USB-camera 1008XS is available to turn this microscope into a video microscope.


Magnification: 100x
Field of view: 0,84 mm
Working distance: 11,6 mm
Focus: focussable
Scale: 0,8 mm, division 0,005 mm
Optic: aplanat, distortion free
Sizes: 42 x 122 mm (diameter x height)
Weight: 82 Gramm
