PEAK 1985-7, Stenheil Loupe, colour corrected

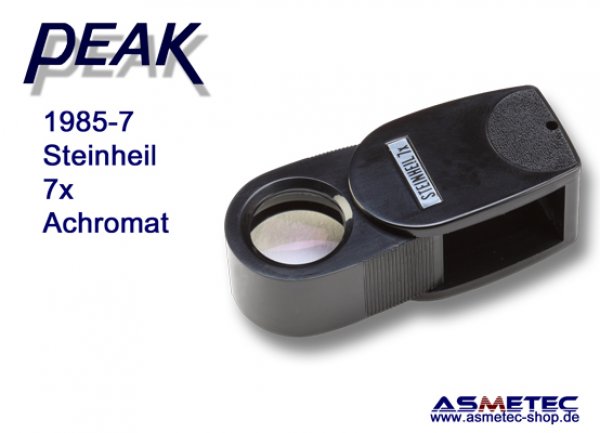

PEAK 1985-7 Steinheil-Loupe 7x
achromatic inspection loupe
Steinheil magnifiers consist of a bi-convex crown glass lens with high curvature and two negative, flint glass meniscus lenses cemented to both sides in the middle of the positive section.
These magnifiers with various magnification factors have been in protracted and extensive use for preliminary examination of microscopic specimens.
They are mounted on stands designed specifically for this purpose, which can be replaced as required.

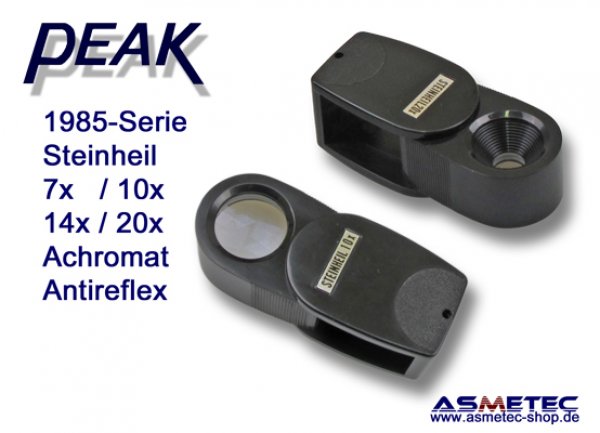

Our PEAK Steinheil magnifiers are available with magnification factors of 7x, 10x, 14x and 20x. The cemented lenses are mounted in a light weight, black plastic tube with a cover of the same material to protect the surface of the lens from dust and scratching. In use the cover serves as a handle for the magnifier. These lenses are coated to prevent reflection
Magnification: 7x
Field of view: 15 mm
Focus: with working distance
Scale: none
Optic: bikonvex, achromatic
Sizes: 39 x 24 x 22 mm (l x w x h)
Weight: 22 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 1985-7 | Model |
| Vergrößerung | 7x | Magnification |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 16 mm | Lens diameter |
| Sichtfeld | 16 mm | Field of view |
| Optik | achromat- bikonvex | Optic |
| Skala | nein / no | Scale |
| Messlänge | - | Scale Length |
| Skalenteilung | - | Scale division |
| Lupenkörper | Kunststoff -plastic | Lupe Body |
| Abmessung | 39 x 24 x 22 mm | Sizes |
| Gewicht | 22 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
