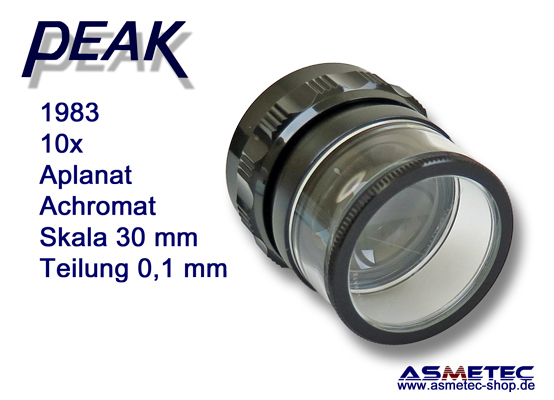

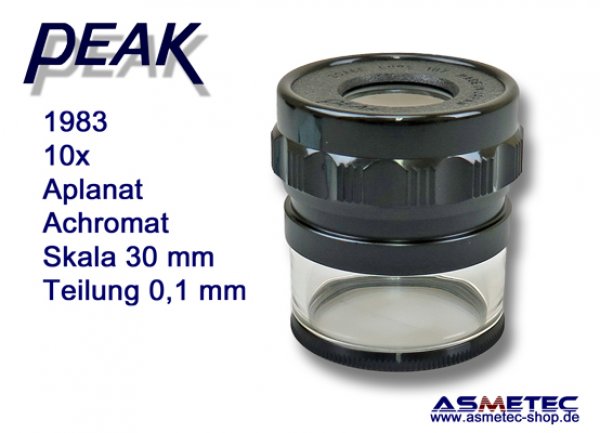

PEAK-Optics scale loupe 1983, 10x, scale 0,1 mm
PEAK 1983, scale loupe 10x
scale loupe with glas scale, aplanat, achromat, focussable
The PEAK measuring magnifier 1983, 10x is one of the best-selling measuring magnifiers.
The lens system consists of 4 elements in 2 groups. The lenses with an antireflective coating are distortion free whereby a precise measurement is possible.

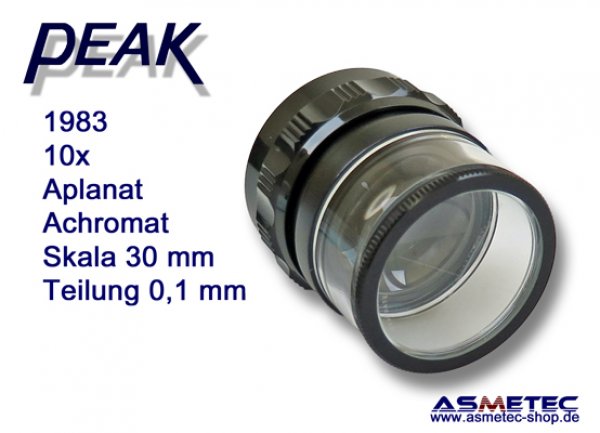

The magnifying glass can be focused by turning the magnifier head.

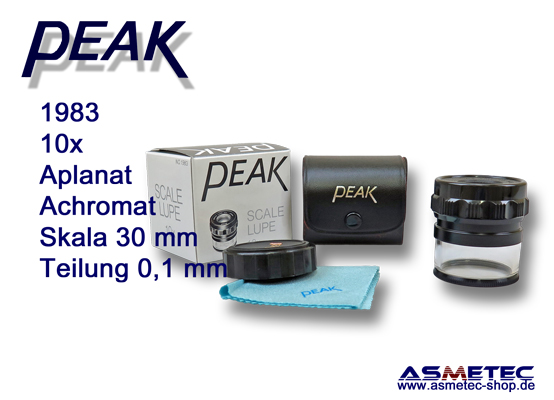

We supply this scale loupe in standard with a metric scale, length 30 mm with 0.1 mm division in a synthetic leather bag

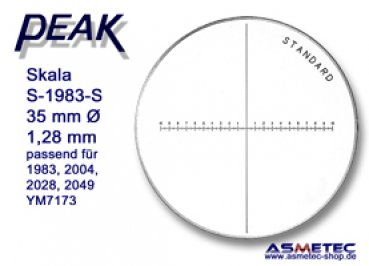

Optionally we offer 15 different scales in black and 14 scales in white.
Replacement scales and accessories can be found here:
Of course we offer at extra cost a calibration certificate according to VDI / VDE / DGQ 2618 page 27 Ü.
Due to the calibration your delivery time would be expanded to 4-6 weeks
This magnifier is also available with lighting kit as PEAK 2028 or as set with 5 scales as PEAK 2004.
Magnification: 10x
Field of View: 32 mm
Focus: yes
Scale: 30 mm, division: 0,1 mm
Optic: aplanat, achromat, distortion free
Sizes: 46 x 44 mm (diameter x height)
Weight: 74 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 1983 | Model |
| Vergrößerung | 10x | Magnification |
| Fokussierbar | ja - yes | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 20 mm | Lens diameter |
| Sichtfeld | 32 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei - distortion free | ||
| Skala | ja / yes | Scale |
| Messlänge | 30 mm | Scale Length |
| Skalenteilung | 0,1 mm | Scale division |
| Lupenkörper | Kunststoff -plastic, Acryl | Lupe Body |
| Abmessung | 46 x 44 mm | Sizes |
| Gewicht | 74 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Skalen | Ersatzskalen in schwarzer und weißer schrift lieferbar - replacement scales with black and white printing available | Scales |
| Kalibrierung | Kalibierschein / calibration report acc to VDI/VDE/DGQ 2618 Blatt 27 Ü / DAkkS gegen Aufpreis - at extra cost | Calibration |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
