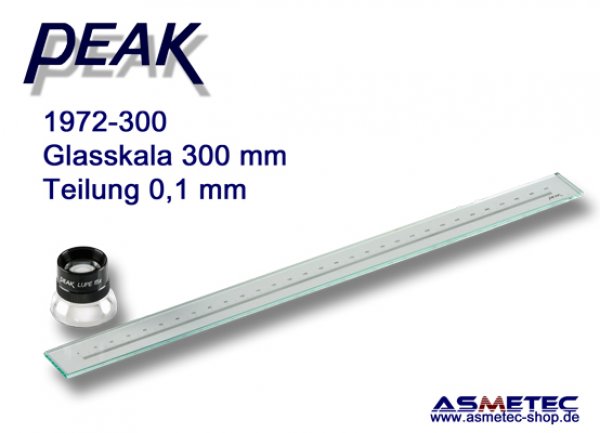

PEAK 1972-300 glass scale with magnifier

PEAK 1972-300 Glas scale 300 mm, incl. loupe 15x

Precise glass scale with increments 0,1 mm

The glass scales ( glas measuring rods) of the series PEAK 1972 and 1972-S are ideally suited for quick and easy measurement of larger distances. In contrast to conventional scale loupes, lengths up to 1000 mm can be measured exactly according to the type of the glass scale.

The Peak 1972 series is supplied with a magnifier Type Peak 1962 (aplanat, 15x) and is available in these measuring lengths: 50/100/200/300/400 mm. It is supplied with a stable box.

The glass body made of soda-lime glass has a good optical transmission, width 25 mm, thickness 2.8 mm, the length varies with the scale version.
For the measurement please be aware that the glass scale is positioned parallel to the sample to avoid measuring errors. The applied divisions are black, sharp but not scratch-resistant. The plot thickness is 0.020 mm.

All glass scales are manufactured to international standards and are delivered without a calibration certificate. On request, a certificate can be issued for a surcharge. VDI / VDE / DGQ 2618, sheet 27Ü (for lengths up to 300 mm), whereby the delivery time is then extended by approx. 2 weeks.

Cleaning:
Recommended cleaning: isopropanol, soft lint-free cloths, distilled water. Pre-wipe with IPA soaked cloth on the mask side without pressure. Do not use acids, alkalis, normal water, abrasive or linting wipes

Technical Data Peak 1972-300
Scale length 300 mm
Division: 0.1 mm
Magnification of loupe: 15x
Field of view: 15 mm
Focus: not focusable
Optics: aplanat, distortion-free
Glass body Dimension: 320 x 25 x 2,8 mm (L x W x H)
Weight: 75 grams
