PEAK 1964-L loupe, 22x with light set
PEAK 1964-L Stand Magnifier, 22x
Stand Magnifier with illumination device, achromatic

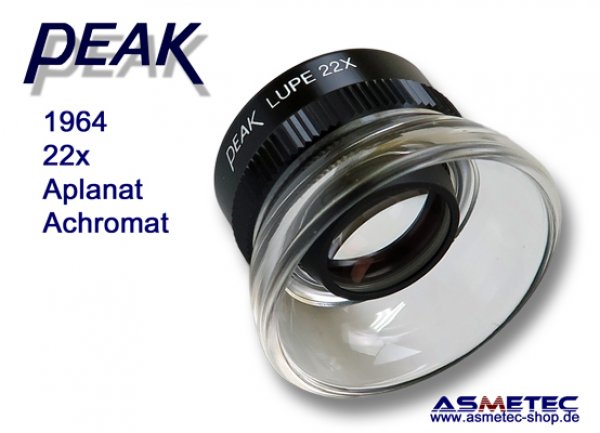

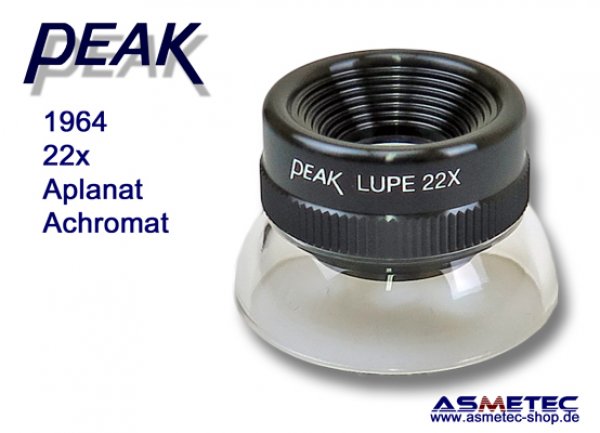

This PEAK stand magnifier is equipped with an achromatic, aplanatic, scratch resistant lens system of 2 components and 3 elements for largely distortion-free image of the surface to be examined.

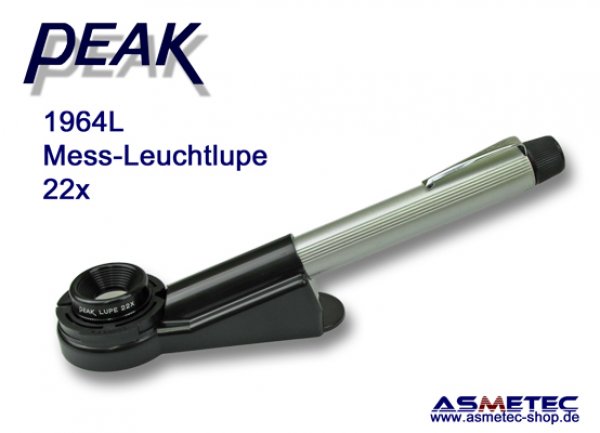

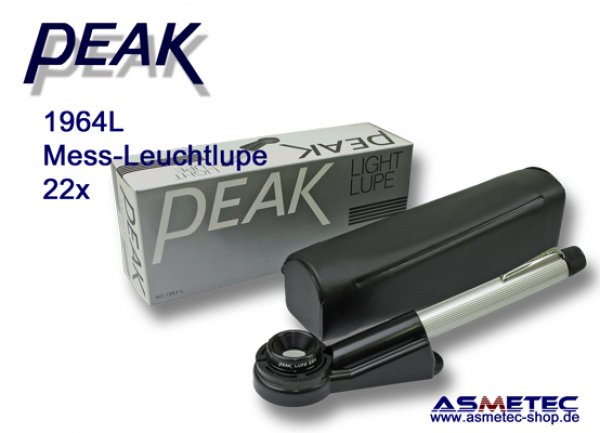

It comes with a detacheable illumination device with pen torch type LHM, powered by 2 x UM3 Mignon batteries (not included).
At 22x magnification with fixed focus a field of view of 10 mm is achieved.
Magnification: 22x
Field of view: 10 mm
Focus: non focussable
Scale: no scale
Optic: aplanat, distortion free
Sizes: 43 x 65 x 184 mm (diameter x height x length)
Weight: 55 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 1964-L | Model |
| Vergrößerung | 22x | Magnification |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsensystem | 2-Komponent- 3-Element | Lens system |
| Linsendurchmesser | 12 mm | Lens diameter |
| Sichtfeld | 10 mm | Field of View |
| Optik | aplanat - achromat | Optic |
| verzeichnungsfrei / distortion free | ||
| Skala | ohne / none | Scale |
| Messlänge | - | Scale Length |
| Skalenteilung | - | Scale division |
| Lupenkörper | Acryl | Lupe Body |
| Beleuchtung | Stablampe / pen torchLHM | Illumination |
| Batterien | 2 x 1,5 V UM3 - Mignon | Batteries |
| Abmessung | 43 x 65 x 184 mm | Sizes |
| Gewicht | 55 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
