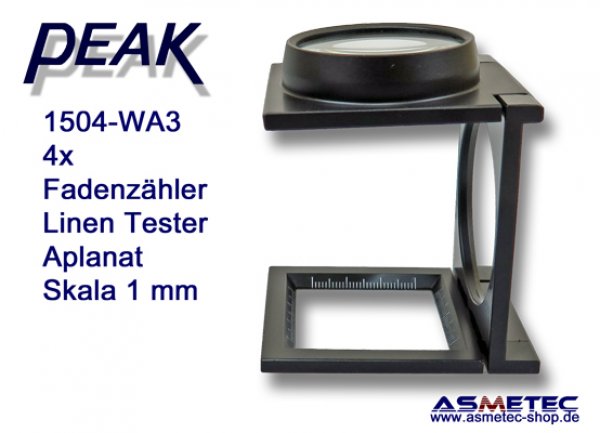

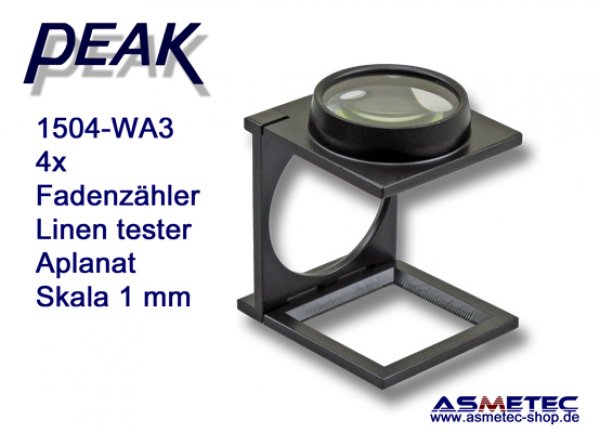

PEAK 1504-WA3, Linen tester 4x, aplanat
PEAK 2003-1504-WA3 Linen tester, 4x
Robust metal body thread counter, aplanat, black
This PEAK 1504-WA3 linen tester is a big scale thread counter, equipped with a 2 element aplanat glass lens for 4x maginfication with a bright image and low distortion. The black body made of robust aluminium alloy reduces unwanted reflexions.
The body bears a 40 mm scale, division 1 mmThe field of view is about 40 mm
Magnification: 4x
Field of view: 40 mm
Focus: non focussable
Scale: 40 mm / 1 mm division
Optic: aplanat, distortion free
Sizes: 68 x 57 x 79 mm (l x w x h)
Weight: 87 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2003-1504-WA3 | Model |
| Vergrößerung | 4x | Magnification |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 40 mm | Lens diameter |
| Sichtfeld | 40 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei - distortion free | ||
| Skala | ja / yes | Scale |
| Messlänge | 40 mm | Scale Length |
| Skalenteilung | 1 mm | Scale division |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 68 x 57 x 79 mm | Sizes |
| Gewicht | 87 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
