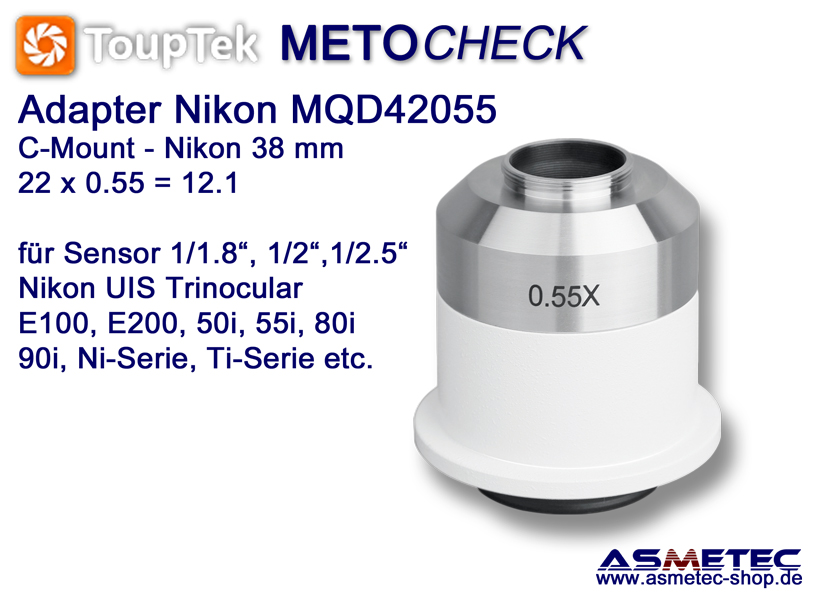

Nikon TV Adapter MDQ42055, 0,55x
Converts Nikon Trinocular microscope photo tube/head/port 38 mm to C-Mount 25,4 mm
This adapter made of stainless steel comes with built in reduction lens 0,55x to achieve a better field of view from the microscope trinocular head.
This adapter is specially designed for Nikon microscopes.
Suitable for: UIS Trinocular Nikon E100, E200, 50i, 55i, 80i, 90i, Ni-series, Ti-series, SMZ-800, SMZ-1000, , SMZ-15000
Also suitable for Nikon UPRIGHT-series, Alphaphot-2, ECLIPSE-Series (requires YT-Tube 92306), Labophot-2, Optiphot-2, Optiphot-100, 200, 300,
Stereo SMZ-10A, SMZ-U, SMZ-1000, SMZ-1500
Metallurgical: Epiphot 200 / 300, Measuring: MM-40, MM-60,
Inverted: Diaphot 200 / 300, TS-100-F, TE-2000
It is suitable for CMOS / CCD cameras with sensor size 1/1.8", 1/2" and 1/2.5".
Please watch the sensor size of your existing camera or choose the correct adapter if you buy one of our C-Mount cameras. We always mention the sensor size with each camera model.
Specials:
Adapter for Nikon microscope with tubus 38 mm
Built in reduction lens 0.55x
made of stainless steel for the C-Mount part + spray painted for the phototube end.
Telecentric optic with low light deficiency
Parfokal with different microscope objective lenses
Diffraction limited MTF
Aperture totally coupled with Nikon UIS microscope objective's exit pupil
