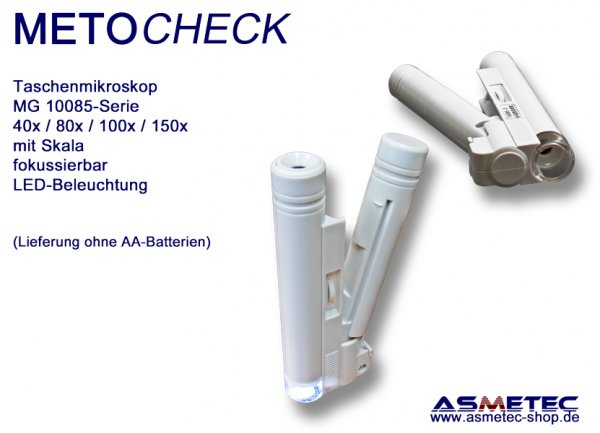

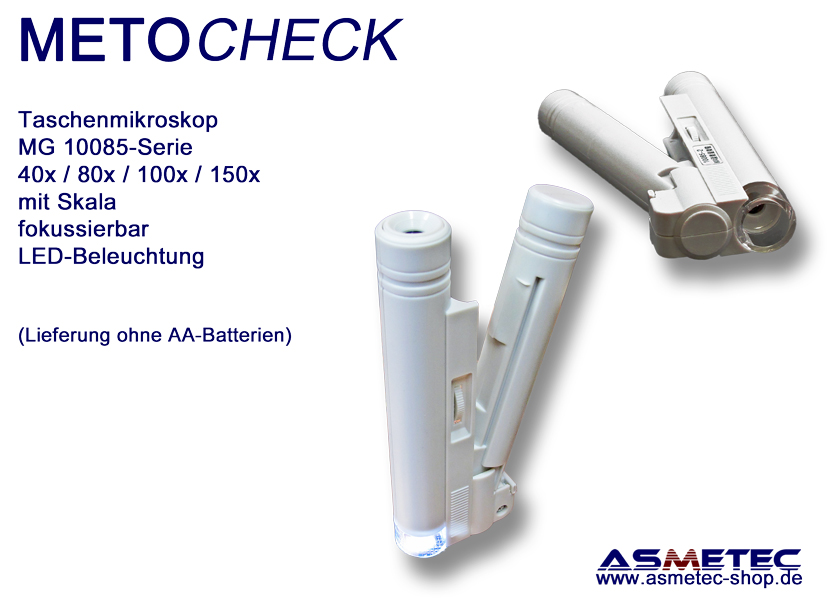

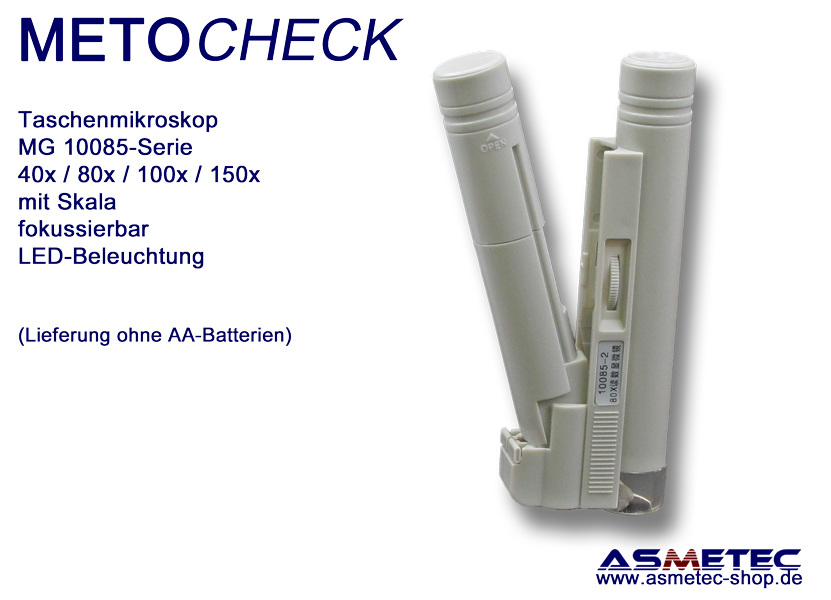

Pocket Scale Microscope MG-10085-80, 80x, with LED and scale, grid 0.01 mm

METOCHECK MG-10085-80S, pocket microscope, 80x

handy pocket microscope with scale 2 mm long, 0.01 mm grid

This handy measuring microscope in pocket size is an ideal helper in all technical areas.
Only 14 cm long and 60 g light, it fits in every pocket and to every workplace.
By opening the two parts, the LED lighting switches on, operated by 2 standard AA mignon cells (not included).
Turn the side wheel to focus.
The built-in LED illuminates the object very brightly with day white light 5000K.
We deliver this microscope in 4 magnification levels 40x / 80X / 100x / 150x each with a built-in measuring scale in a synthetic leather protective bag.

• Type MG 10085-40, 40x, scale division 0.05 mm, scale length 4 mm
• Type MG 10085-80, 80x, scale division 0.01 mm, scale length 2 mm
• Type MG 10085-100, 100x, scale division 0.02 mm, scale length 1,6 mm
• Type MG 10085-150, 150x, scale division 0.005 mm, scale length 1.2 mm
• Dimensions: 140 x 50 x 22 mm

Inserting the batteries (not included):
You need 2 type AA, Mignon batteries
Battery compartment (hinged part) inserted with the positive pole facing down.
The battery compartment has a lid that is pushed up with light pressure.
The LED cannot be exchanged.


Handling the microscope:
Open the microscope, the LED lights up (with charged batteries).
Place the sample to be examined under the microscope.
Look through the eyepiece with one eye and adjust the focus with the focus ring.
Fold up after use (the LED switches off)
If the microscope is not used for a long time, the batteries must be removed (risk of battery leakage)


Areas of application:

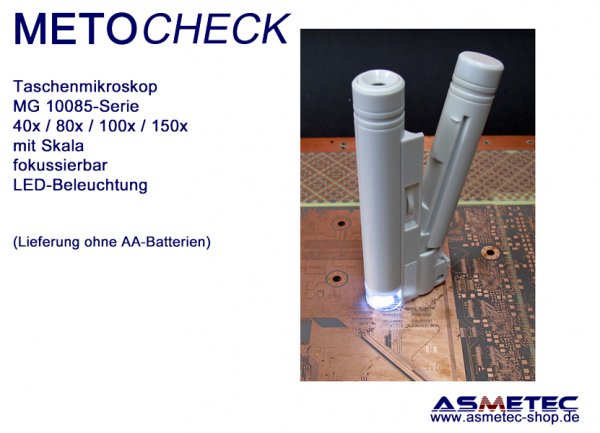

Industry, electronics, circuit board production, medical technology, gardening, coins and postage stamps, office, hobby
