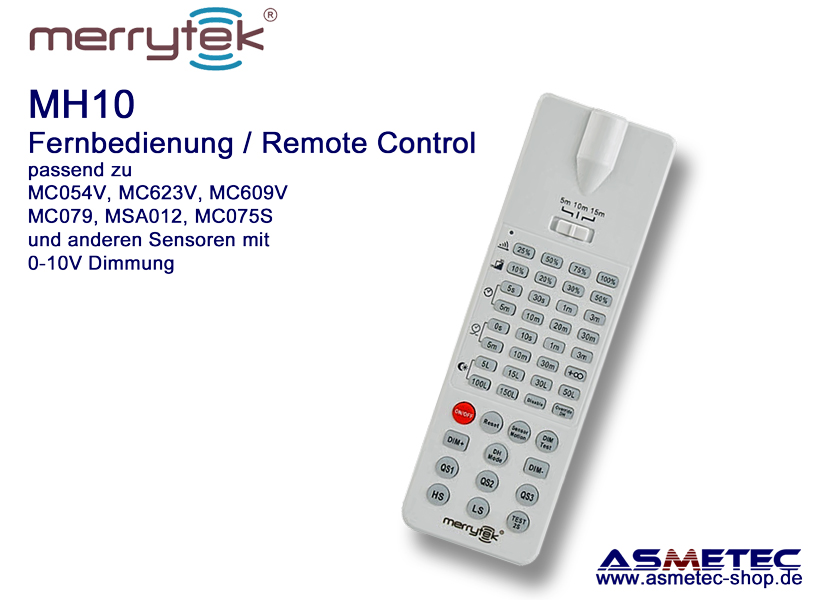

Merrytek MH10 - IR-Remote control for Merrytek RC-Sensors
Convenient adjustment of all Merrytek motion sensors with IR receiver (e.g., MC054V RC C)
This Merrytek remote can work with Merytek sensors such as MC054V, MC623V, MC609V, MC079, MSA012, MC075S and others.
With the IR-based handheld remote control you can conveniently set all Merrytek sensors with integrated IR module.
The easy-to-understand labeling of the buttons on the remote control is self-explanatory.
No matter how many MC054V RC sensor switches you want to control, you only need to buy ONE IR remote control.
“Override DH”, “DIM- DIM+”, and “DH Mode” that the three functions are not applicable for MC054V RC.
Remote control and code setting conversion
1.DIP switch setting convert to remote control Press any button except ”RESET” on the remote control, and the sensor settings convert to the function currently selected by remote control (No function button settings invaild)
2.Remote control convert to DIP switch setting A.
Press the “RESET”button on the remote control, and all settings return to the DIP switch settings of the sensor.
Turn off the power, toggle any DIP switch, connect to the power, and all settings return to the DIP switch settings when supply power again.

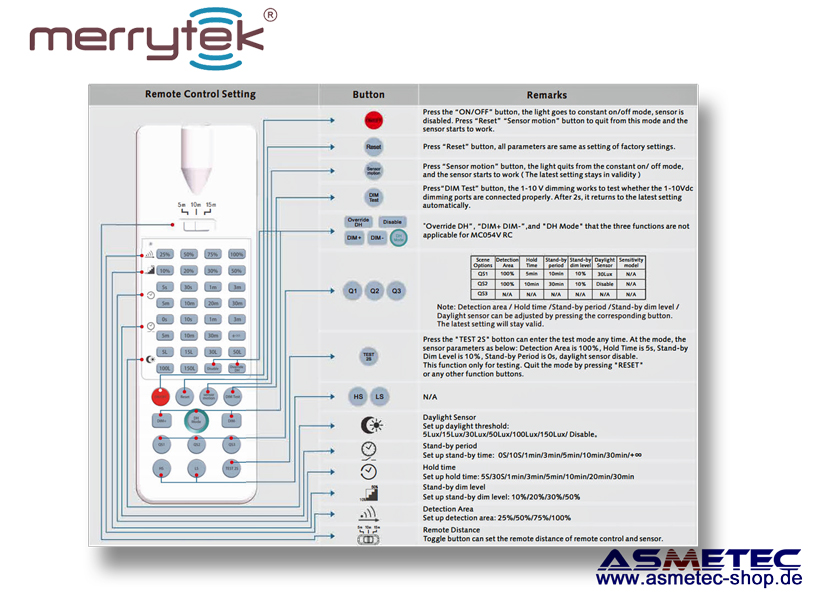

Button description ON/OFF: Press the “ON/OFF”button , the light goes to constant on/off mode, sensor is disabled.
Press “RESET””Sensor motion”button to quit from this mode and the sensor starts to work.
Reset: Press “Reset”button, all parameters are same as setting of factory settings.
Sensor motion: Press “Sensor motion”button, the light quits from the constant on/off mode, and the sensor starts to work (The lastest setting stays in validity).
DIM Test: Press “DIM Test”button, the 1-10V dimming works to test whether the 1-10Vdc dimming ports are connected properly. After 2s, it returns to the latest setting automatically.
TEST 2S: Press “TEST 2S”button can enter the test mode any time. At the mode, the sensor parameters as below: Detection Area is 100%, Hold Time is 5s, Stand-by Dim Level is 10%, Stand-by Period is 0s, Daylight sensor disable. This function only for testing. Quit the mode by pressing “Reset” or any other function buttons. The keypads are divided into:
- Quick Settings
- detection range
- hold time
- Stand-by Dim Level
- Stand-by Period
- Daylight Sensor
You can then use the preset keys to quickly set the desired settings. The remote control is powered by 2 AAA batteries (not included), which are inserted behind the cover on the back.
Advantages:
• Easy adjustment of the RC sensors
• Integrated IR transmit LED
• Compact dimensions
Technical specifications:
• IR remote control suitable for all Merrytek sensors with integrated IR reception
• Operating voltage: 3 V via 2 x AAA battery

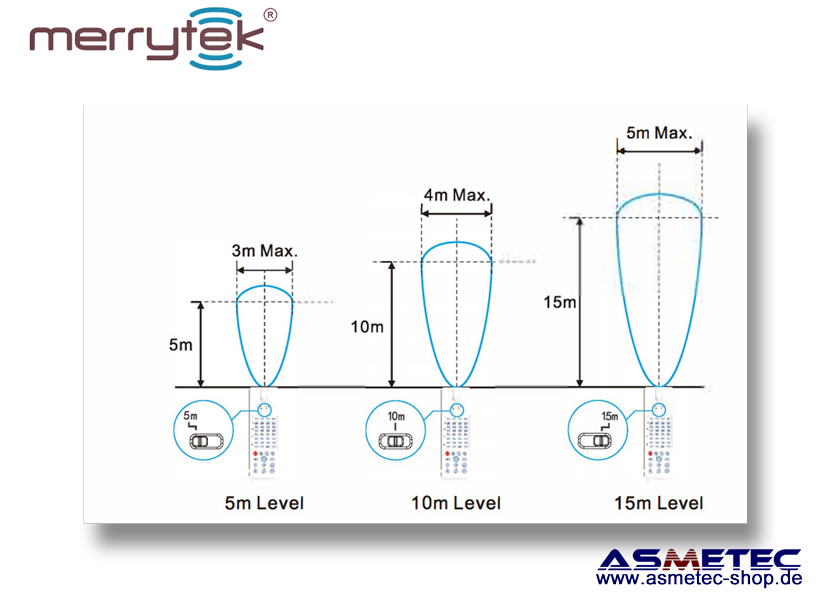

• Range approx. 20 m (depending on local conditions and battery level)
• Dimensions: 175 x 55 x 22 mm (L x W x H)
