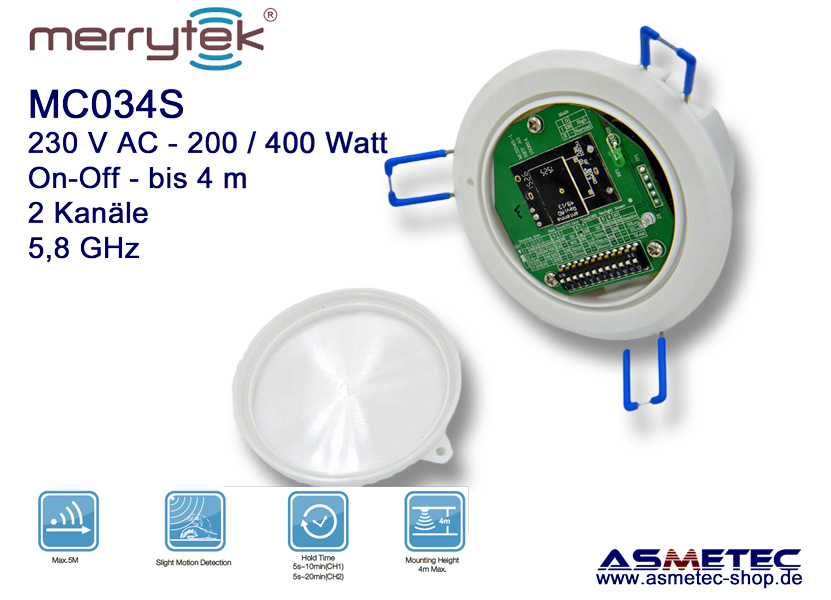

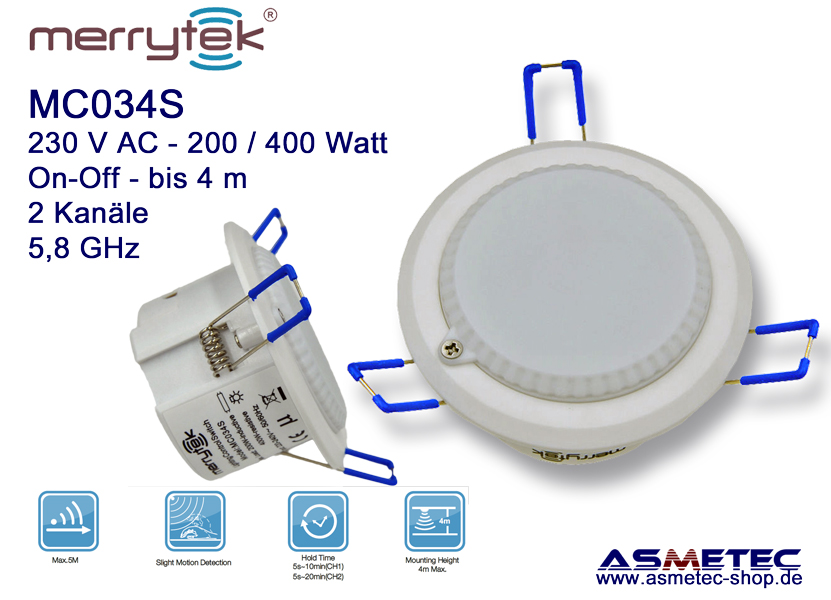

Merrytek MC034S - Microwave Motion Sensor, 2 channel

Merrytek MC034S - Microwave Motion Sensor, 2 channel

HF sensor switch 5.8 GHz, for automatic switching of lights up to 400 Watt

The Merrytek MC034S is an innovative motion sensor with switch-on function for motion detection and adjustable hold time up to 20 minutes after last motion detection. An integrated daylight sensor can also be used to set the ambient brightness from which the sensor is to respond via DIP switches.
The special feature of this sensor switch is the 2-channel version. Thus 2 switching channels (e.g. for light and fan) can be set separately in the follow-up time - ideal for damp rooms such as showers, toilets, bathrooms, etc.
The MC034S can be installed in dry interior walls and ceilings. The sensor is suitable for switching LED lights and light sources.It makes sense to install the sensor behind a ceiling made of wooden panels or grid ceiling panels near a downlight, because this makes it easy to reach the sensor when changing the dip switches or replacing them. You can connect 2 sensors in parallel for switching in the stairwell.
Advantages:

• Automatic switching on motion detection depending on ambient light
• zero-crossing circuit
• 2 separately adjustable channels
• Sensor 5.8 GHz
• Built-in daylight sensor
• Detection by glass, plastic, non-metallic materials
• 4-pole pressure terminals L - N - N - L'
• DIP switch for setting the parameters
• Compact dimensions

Hint:
Please note that the maximum switching loads of ohmic loads (e.g. incandescent lamp, halogen lamp) and inductive loads (e.g. LED luminaires) are different. For inductive loads, as a thumb rule is only half the switching load for ohmic loads.
Technical data:

• input voltage 220 - 240 VAC - 50/50 Hz
• For resistive up to 400 Watt (e.g. incandescent lamps, halogen lamps)
• For inductive loads up to 200 watts (e.g. LED power supplies, LED luminaires)
• Hold time Channel 1: 5 s / 90 s / 3 min / 10 min
• Hold time Channel 2: 5 s / 5 min / 10 min / 20 min
• daylight sensor: 5 lux / 15 lux / 50 lux / off
• Detection angle: 150° (wall mounting) / 360° (ceiling mounting)
• Recognition range: 10 m max.
• Mounting height: 4 m max
• motion detection: 0.5 ~ 3 m/s

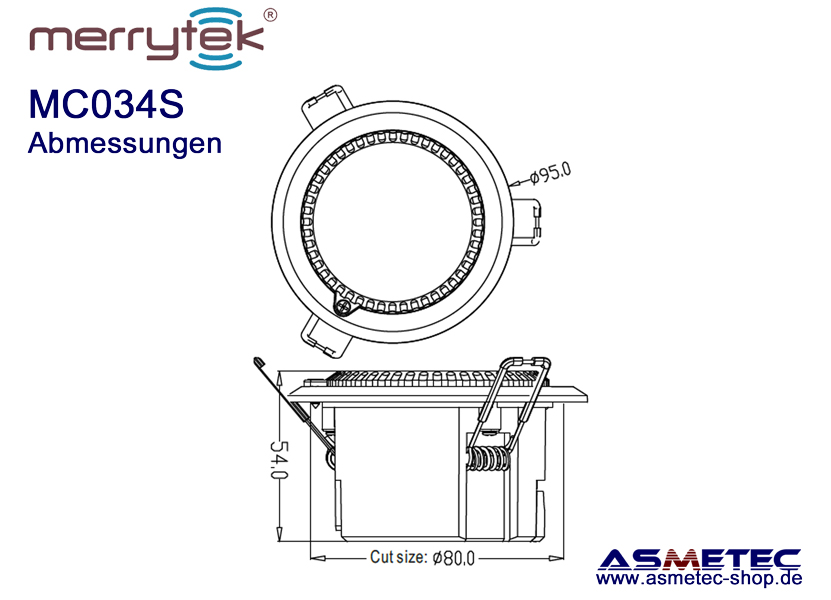

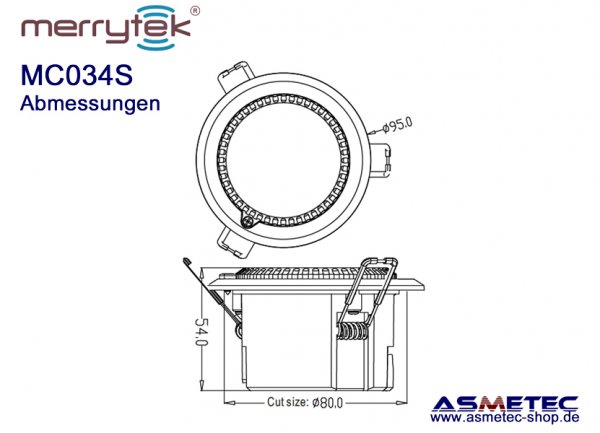

• Ceiling cut out: 80 mm
• Dimensions: 95 x 54 mm (D x H)
