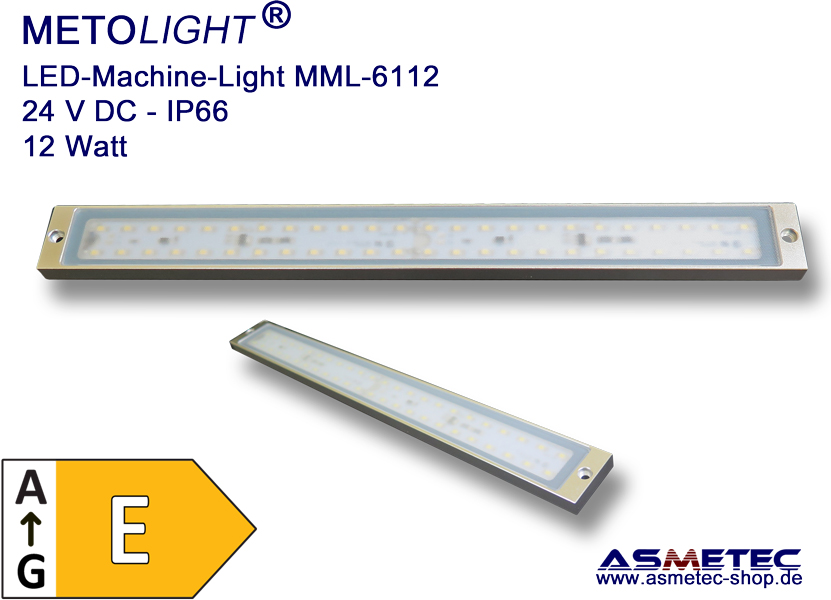

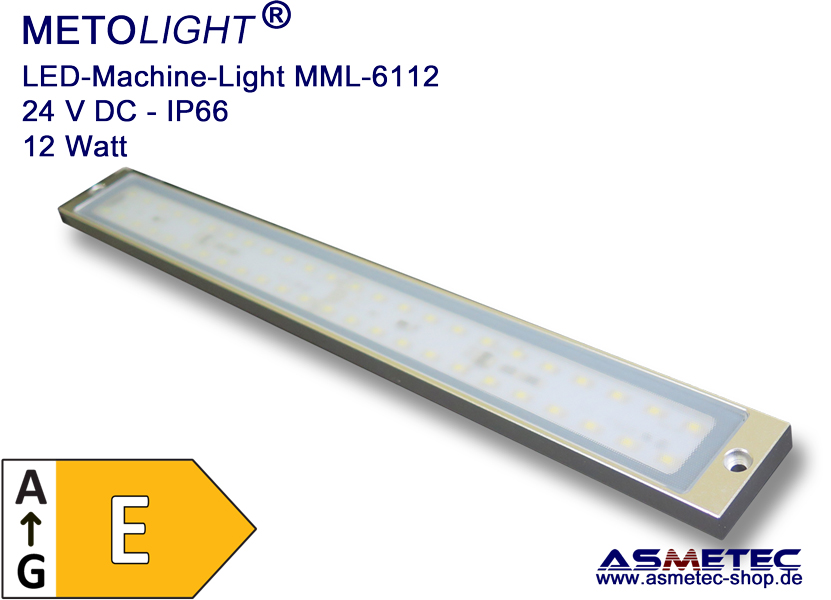

METOLIGHT LED machine light MML-6112-CWS, 24 V DC, 12 Watt, 1400 lm
LED linear light, IP66, for installation in machines and control cabinets
This newly developed extra flat LED machine light is ideal for illuminating workbenches and workpieces within a machine room, a cabinet or other open and closed work areas. The luminaire body is made of sturdy, anodised aluminum.
The front glass is hardened and sealed, the complete luminaire corresponds to IP66. Optionally, this machine can also be supplied with a matt front glass or with a diffuser glass, which considerably reduces glare. In the standard version, we supply the luminaire with clear front glass and light angle of approx. 110°.
The input voltage is 24 V DC, which means that this LED luminaire can be operated by the most usual on-board voltage. Optionally we also supply the light for connection to 230 VAC.
For direct control by a PLC, we optionally offer a suitable solid-state relay.
The LED machine light has the light color 5800-6200K cold white, CRI Ra> 80, efficiency 110 lm / W, optionally also available with 130 lm/W.
Applications:
The LED machine luminaire is designed for lighting in machines, control cabinets, workstations, trucks, busses, camping, caravan, but also for emergency lighting and solar systems / batteries.
Options:
Optional connection to 230 VAC
Optional Solid-state relay 3-32 VDC input - (Article 103804)
Warranty:
We grant a 2-year limited warranty on the LED machine light M9R (see warranty conditions for download area)
Technical specifications:
Power supply voltage: 24 V DC - 300 mA
Power consumption: 12 Watts
Light color: 5800-6200K - CRI Ra> 80
Luminous flux: 1400 lm
Energy class: E (EU 2019)
IP class: IP66
Sizes: 375 x 18 x 60 mm (L x H x D)
Weight: approx. 0,8 kg
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | MML-6112-CWS | Model |
| EAN-Code | EAN 4251192848307 | EAN-Code |
| Betriebsspannung | 24 V DC +/- 2 V | Input Voltage |
| Gesamtleistung | 12 Watt | Input Power |
| Leistungsfaktor | Pf > 0,90 | Power factor |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | LED-SMD 2835 | Light Source |
| Energieklasse | E | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 90° | Beam Angle |
| Lichteffizienz | 100 lm/W | Light Efficacy |
| Warmweiss | n/a | Warm White |
| Neutralweiß | n/a | Nature White |
| Kaltweiß | 5500 - 6500K - 1400 lm | Cold White |
| CRI | CRI Ra > 80 | CRI |
| LED-Lebensdauer | 30.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 120.000 | Switch Cycles (on/off) |
| LED-Versorgung | Konstantstrom - constant current 300 mA | LED-Supply |
| Klassen | IP66, IK08, Iso-II | Classes |
| Gehäuse | Aluminium, eloxiert - aluminium anodised | Housing |
| Abmessungen | 375 x 60 x 18 mm (H x B x T ( H x W x D) | Sizes |
| Besonderheiten | Specials | |
| Gewicht | ~ 0,8 kg | Weight |
| Betriebsbereich | -20°C - + 40°C – 5-95% rH | Work Conditions |
| Hinweise | nur an 24 V DC betreiben, nicht an Dimmern betreiben - only connect to 24 V DC, do not connect to dimmers | Notes |
| Normen | CE-Konformität / CE-conformity nach / acc to: EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012, ErP 2009/125/EU, NRS 2014/358/EU, EMV 2014/30/EU, RoHS 2011/65/EU | Standards |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Maschinenleuchte für allg. industrielle Beleuchtungsanwendung im Innen- und Außenbereich | LED-machine light for common lighting application indoor and outdoor |
| Besonderheiten | Specials |
| Robuste LED-Leuchte in stabilem Alu-Druckgußgehäuse, IP66, drehbar, bruchfestes Frontglas, zum Anschluss an 24 V DC | Robust LED-light in robust cast aluminium housing IP66, rotable, tensioned front glass, for connection to 24 V DC. |
| Installation | Installation |
| Decken-, Wand- In-Kabinett-Montage | Ceiling- wall- or in cabinet-mounting |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 2019-2015, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 2019-2015, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Hinweis zu den technischen Daten | Technica Data Notes |
| Technische Daten unterliegen den üblichen Schwankungen. Sie können ohne Vorankündigung zur Produktverbesserung geändert werden. Produktabbildungen dienen nur zur näherungsweisen Darstellung. Die Produkte können im Aussehen leicht abweichen. | Technical data subject to the usual deviations. They may be modified for improvement without prior notice. Images are only for the approximate representation. Products may differ slightly. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
