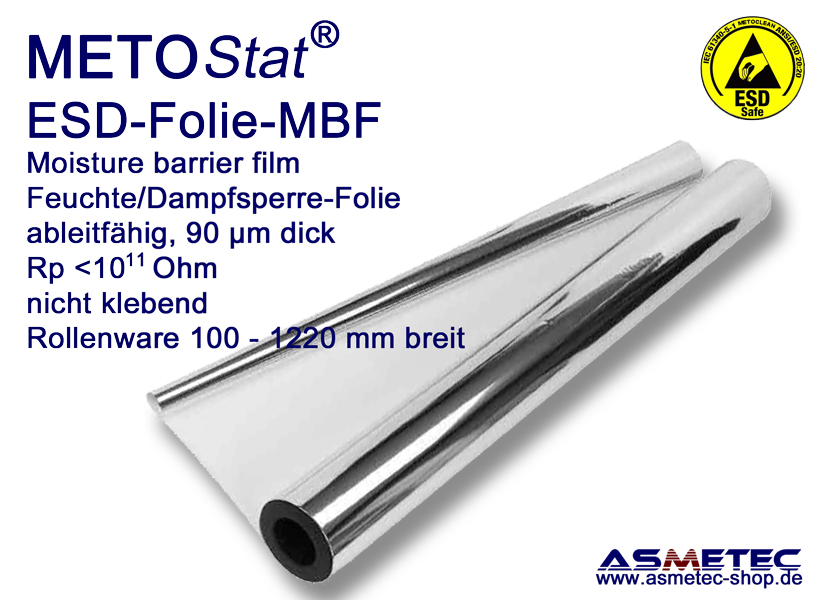

METOSTAT ESD antistatic moisture barrier film MBF-1220-090, Roll 1220 mm wide, 500 m long
ESD foil, roll material 1 m wide, 500 m long, 90 µm thick, silver, non-adhesive
The METOSTAT ESD Film Series MBF is a high-strength, non-transparent polyester film 90 μm thick, aluminum-coated, non-sticky, for use as a vapor barrier and shielding when packaging sensitive electronic equipment. The Rp is below 1011 ohms, the film complies with IEC 61340-5-1; IEC 61340-5-3.
The film has a minimum triboelectric charging behavior and offers a very good electrostatic discharge behavior.
Physical forms:
We supply this film as rollware 122 cm wide, 500 m long (standard)
as customer-specific rollware (lengths up to 3000 meters, 100 mm to 122 cm wide)
Main technical data:
Material: polyester film, 0.09 mm thick
Roll width: 122 cm
Roll length: 500 m (optional lengths up to 3000 m available)
Antistatic coating: both sides, durable, not self-adhesive,
antistatic on both sides
Rp-p (DIN EN 61340-2-3): <1011 Ohm
Synonyms:
This ESD film is also known as ESD film, antistatic film, dissipative film, electrostatic film, dissipative polyester film, clean-room film, dissipative foil
