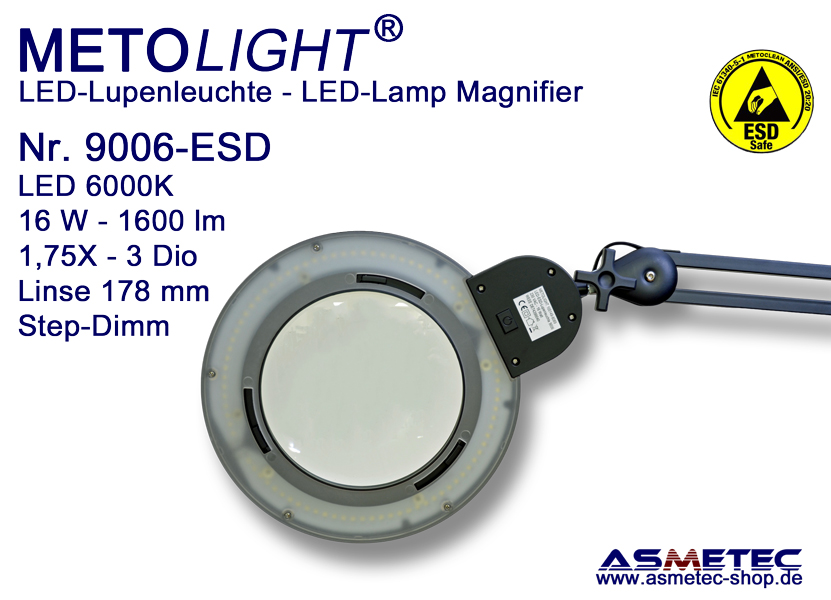

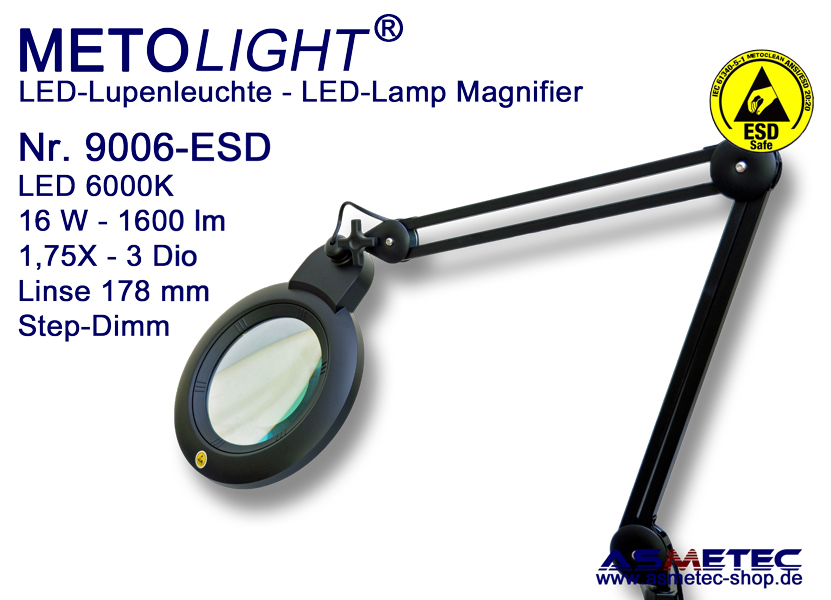

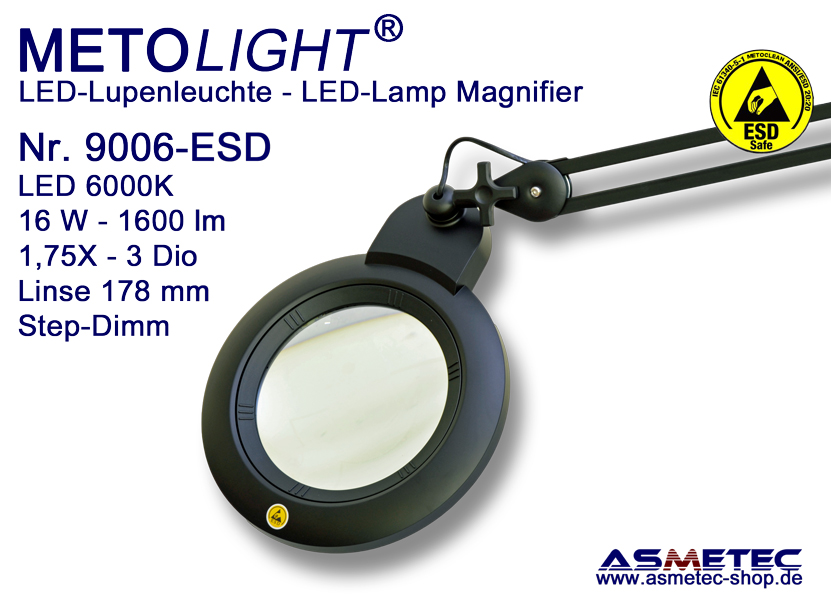

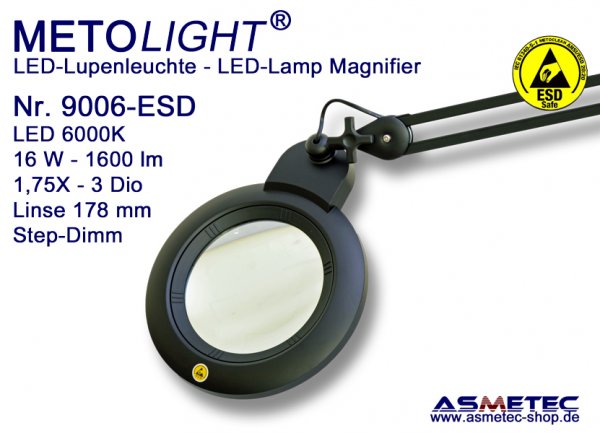

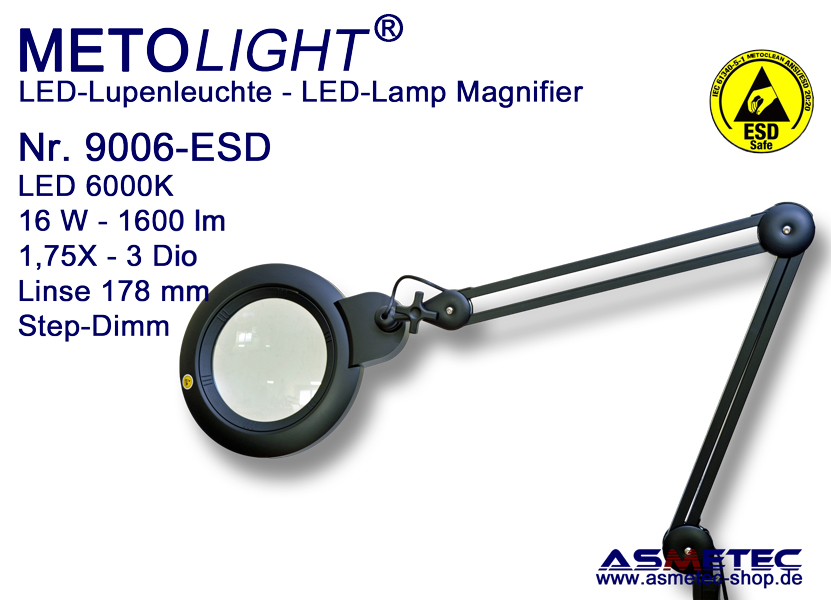

METOLIGHT LED Lamp Magnifier 9006-ESD, 1.75x, 16 Watt, 1600 lm
METOLIGHT LED Lamp Magnifier 9006-ESD, 16 Watt, 1600 lm, 3 Diopter
ESD LED magnifying lamp, extra big lens 178 mm lens, 1,75x
The new METOLIGHT 9006 ESD magnifying lamp (also available as standard, non-ESD magnifying lamp in white) is coated with a dissipative special coating to protect against electrostatic charge. Thus, this magnifying lamp in EPA areas, can be used in electronics manufacturing or repair. This modern, ergonomically designed anti-static magnifying lamp features a big mm lens 178 mm made of quality glass with 3 dioptres (1.75x magnification). 84 ultra bright LEDs in light color 6000K can be dimmed into 4 levels (25%, 50%, 75%, 100% off) simply by pressing the on / off button. The maximum power consumption at 100% LED light is about 16 watts at 1600 lm.
The lamp mmagnifier is connected to the mains via a mains adapter with an input voltage range of 100 - 240 VAC.
The adjustable head joint allows easy alignment of the lamp with just one hand. The long arm with integrated springs also ensures effortless movement and accurate positioning - perfect for all electronic, industrial and inspection environments.
Daylight LEDs provide high-contrast, accurate color matching for easier and less tedious work, and allow for a clear display of the tiniest details. The LEDs never need to be replaced and consume very little energy.
The scope of supply includes a stable table clamp, with which the magnifying lamp is attached to the workplace. Optional floor stands as well as a version with 5 diopters are available.
The magnifying lamp is delivered in a box with a stable molded foam inlet.
Technical specifications:
The lamp mmagnifier is connected to the mains via a mains adapter with an input voltage range of 100 - 240 VAC.
The adjustable head joint allows easy alignment of the lamp with just one hand. The long arm with integrated springs also ensures effortless movement and accurate positioning - perfect for all electronic, industrial and inspection environments.
Daylight LEDs provide high-contrast, accurate color matching for easier and less tedious work, and allow for a clear display of the tiniest details. The LEDs never need to be replaced and consume very little energy.
The scope of supply includes a stable table clamp, with which the magnifying lamp is attached to the workplace. Optional floor stands as well as a version with 5 diopters are available.
The magnifying lamp is delivered in a box with a stable molded foam inlet.
Technical specifications:
- Light source: LED
- Luminous flux: 1600 Lm
- Dimmable: 4 levels + off
- Light color: 6000 ° K
- Energy consumption: 16W
- Color: Black - ESD-compatible

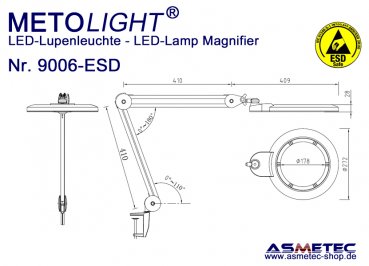

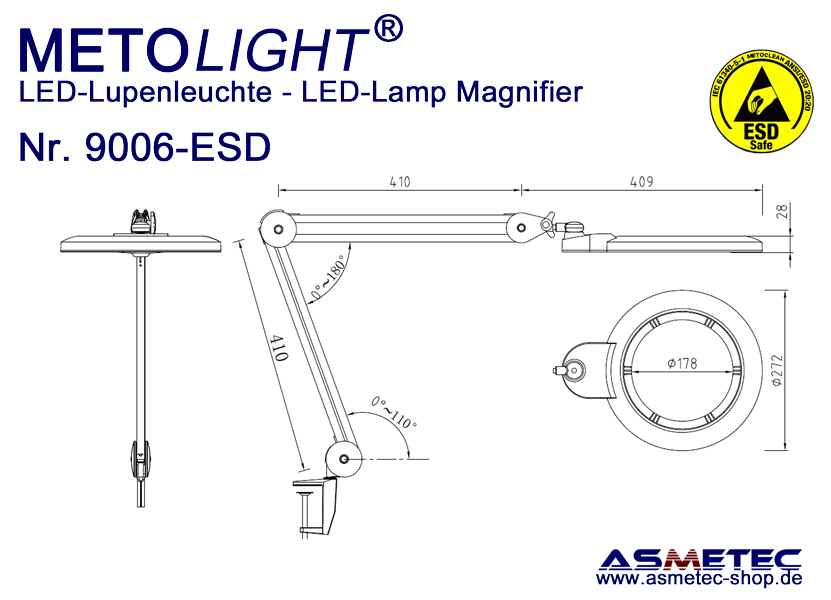

- Arm length: 2 x 410 mm
- Lamp head: 272 mm
- Weight: 3 kg
- Cable length: 2 m
- Lens diameter: 178 mm
- Magnification: 3D (1.75X)
- Optional extra magnification: 5D (2.25x)
- Material of the loupe: Antistatic coated glass
Special features:
Ergonomic and ESD-safe magnifying lamp for professional use.
Suitable for use in electrostatic protected areas according to IEC 61340-5-1 and ANSI / ESD 20: 2060
High-quality LEDs switchable in 4 brightness levels
Free and easy to move luminaire arm and head with wing nut for stable positioning
Robust arm with reinforced joints
