METOCHECK YM 7170 Scale loupe 7x

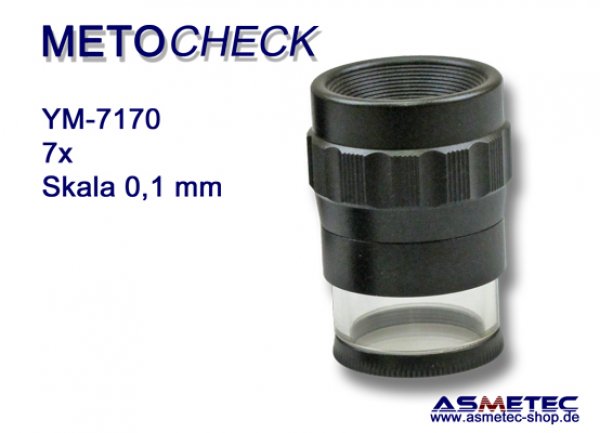

METOCHECK YM-7170, scale loupe 7x
scale loupe with glas scale, aplanat, achromat, focussable
The METOCHECK YM-7170 is a inexpensive alternative to PEAK 1975.The achromatic and aplanat lens is distortion free whereby a precise measurement is possible.

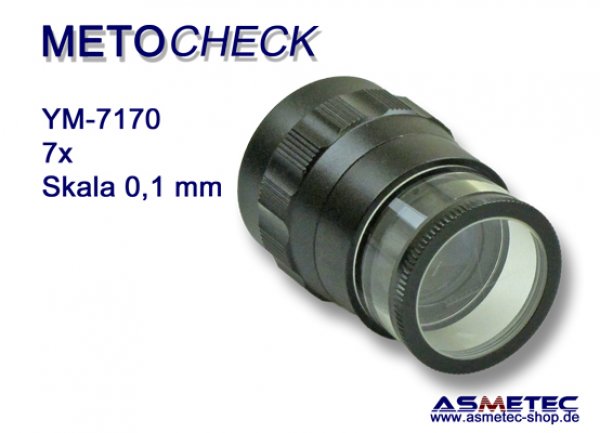

The magnifying glass can be focused by turning the magnifier head.

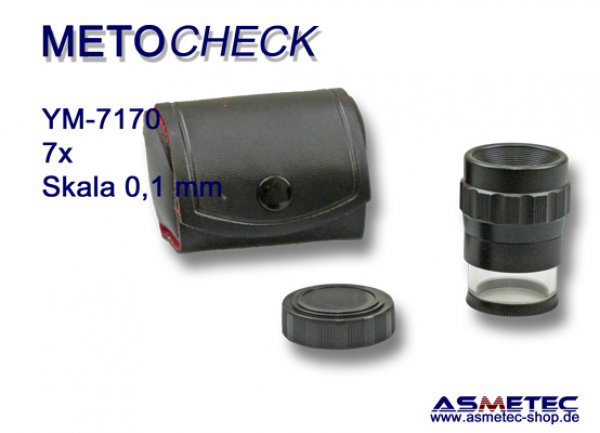

We supply this scale loupe in standard with a metric scale, length 14 mm with 0.1 mm division in a synthetic leather bag
Optionally we offer 13 different scales in black and 3 scales in white.

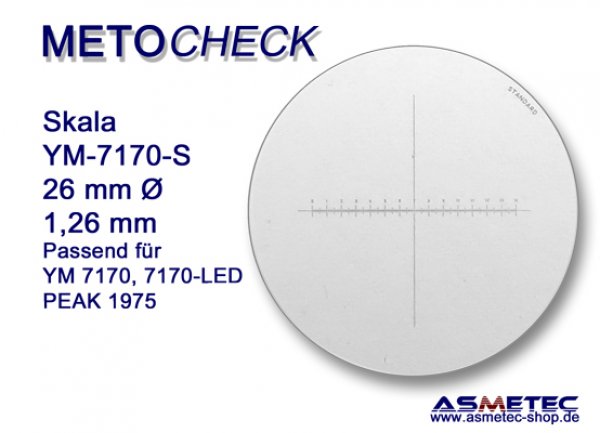

Replacement scales and accessories can be found here:
Of course we offer at extra cost a calibration certificate according to VDI / VDE / DGQ 2618 page 27 Ü.
Due to the calibration your delivery time would be expanded to 4-6 weeks
Magnification: 7x
Field of View: 24 mm
Focus: yes
Scale: 14 mm, division: 0,1 mm
Optic: aplanat, achromat, distortion free
Sizes: 29 x 46 mm (diameter x height)
Weight: 28 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOCHECK | Brand name |
| Modell | YM-7170 | Model |
| Vergrößerung | 7x | Magnification |
| Fokussierbar | ja - yes | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 18 mm | Lens diameter |
| Sichtfeld | 24 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei - distortion free | ||
| Skala | ja / yes | Scale |
| Messlänge | 14 mm | Scale Length |
| Skalenteilung | 0,1 mm | Scale division |
| Lupenkörper | Kunststoff -plastic, Acryl | Lupe Body |
| Abmessung | 36 x 57 mm | Sizes |
| Gewicht | 56 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Skalen | Ersatzskalen in schwarzer und weißer Schrift lieferbar - replacement scales with black and white printing available | Scales |
| Kalibrierung | Kalibierschein / calibration report acc to VDI/VDE/DGQ 2618 Blatt 27 Ü / DAkkS gegen Aufpreis - at extra cost | Calibration |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
