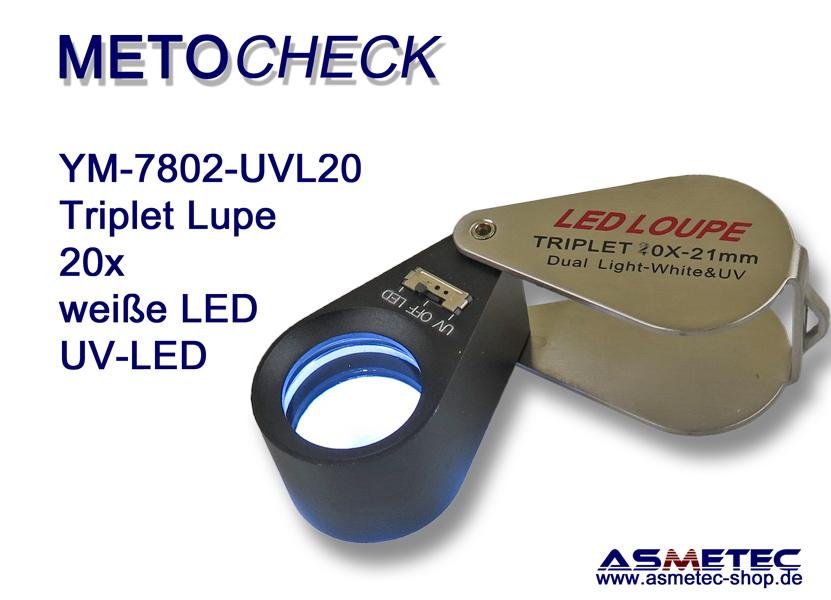

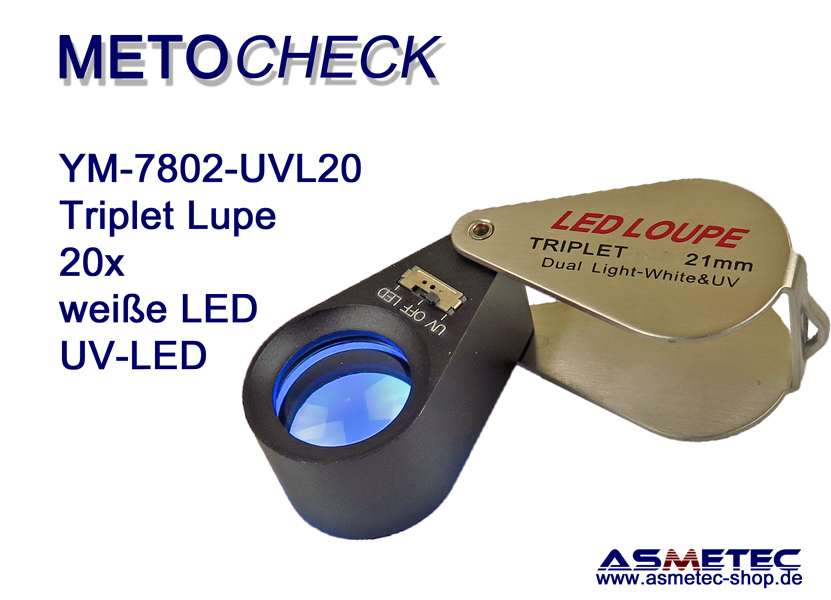

METOCHECK YM7802-UV-LED, foldable loupe 20x with LED
METOCHECK YM-7802-UV-LED, 20x, LED
Foldable Triplet-Loupe with white and UV-LED light 395nm
This METOCHECK triplet loupe YM-7802 equipped with an aplanat glass lens system for 20x maginfication and nalmost distortion free image of the object.

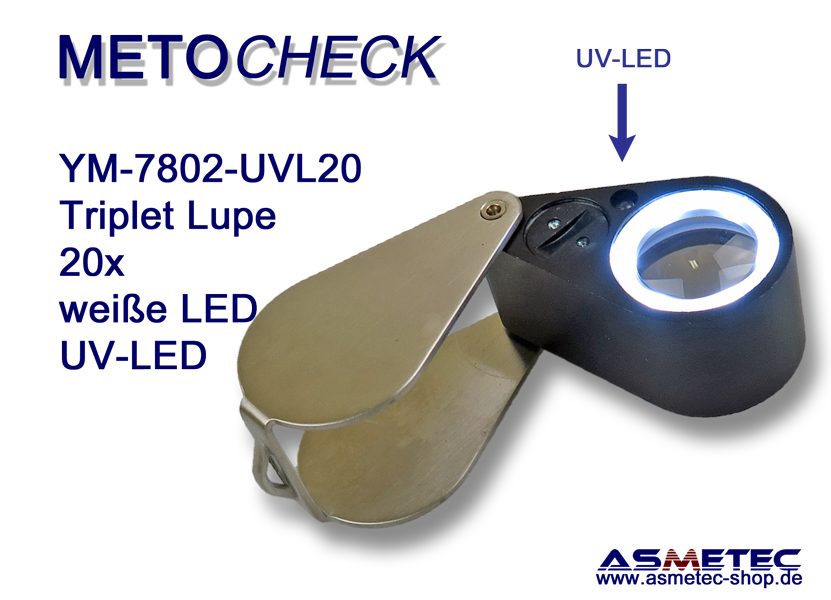

The LED light can be switched from UV-LED to White LEDs powered by 3 x LR927 button cells lights up the object while switched oon.
The field of view is about 10 mm.
This loupe is ideal for inspection of miniatures, printing dots, stamps, SMD and other electronic items, jewellery, watches etc.
Magnification: 20x
Field of view: 10 mm
Focus: focussable by working distance
Scale: none
Optic: aplanat
Light: LED
Sizes: 55 x 38 x 50 mm (l x b x h)
Weight: 100 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOCHECK | Brand name |
| Modell | YM-1021-UV-LED | Model |
| Vergrößerung | 20x | Magnification |
| Beleuchtung | UV-LED. weiße LED | Illumination |
| Batterie | 3 x LR927 | Battery |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 19 mm | Lens diameter |
| Sichtfeld | 15 mm | Field of view |
| Optik | aplanat Triplex | Optic |
| verzeichnungsarm / low distortion | ||
| Skala | nein - no | Scale |
| Messlänge | - | Scale Length |
| Skalenteilung | - | Scale division |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 55 x 22 x 20 mm | Sizes |
| Gewicht | 100 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
