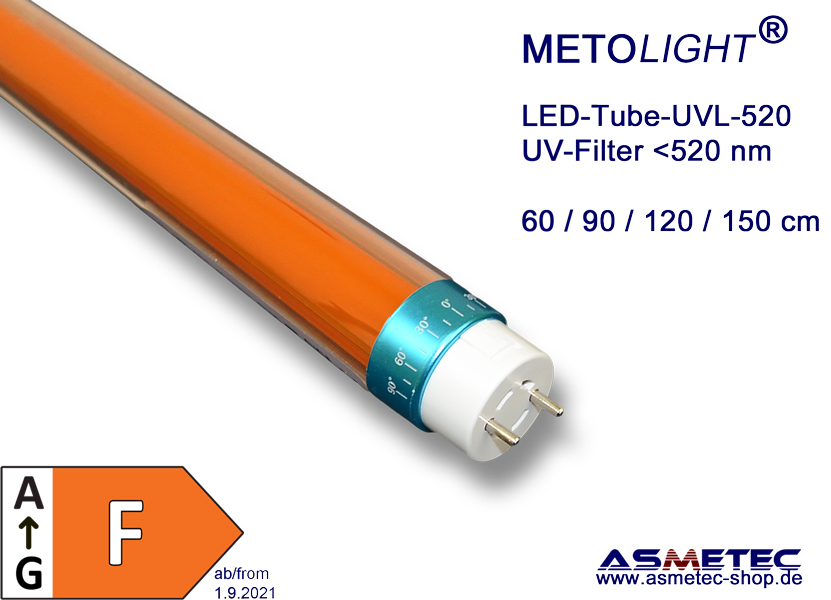

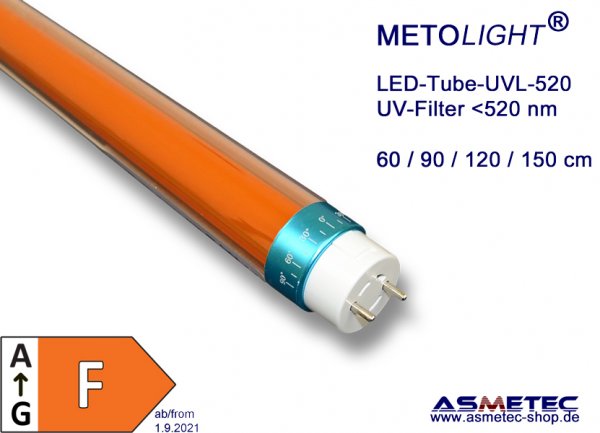

METOLIGHT LED-Tube-UVL-520-060-10-SCE, 60 cm, 10 Watt, 520 nm

METOLIGHT LED-Tube UVL-520-060-10-SCE, 60 cm, 10 Watt, 520 nm

LED Tube single side connected for magnetic ballast and direct 230 Volt AC to be used in yellow rooms

Retrofit for T8 yellow room CFL-tubes, 60 cm - 18 Watt for UV-save room lighting

Extra bright by Epistar SMD with 140 lm/W  with built in UV-Filter 500 nm - no light below 520 nm
Retrofit replacement for fluorescent T8 / T10 - 60 cm, 18 Watt, Socket G13

The METOLIGHT LED tube UVL-520-SCE is significantly brighter than conventional fluorescent tube 60 cm / 18 Watt - T8 - saves about 80% energy at about 10 times longer durability. It is designed to be used in so called yellow rooms where UV curing materials such as inks, laquers, resins, pcb-coating, chip-production etc

The new UVL-520 LED-Tubes come with extra bright SMD-LEDs, double isolated integrated LED driver suitable for magnetic ballast and 230 VAC diect input. The UV-filter is extra thick and long lasting but also can be exchanged easily in case of fading.

We offer a 3 years warranty on the complete LED-UVL-520 tube.

No electrical shock:
The Asmetec SCE-technology ensures that there is no power creep voltage from one end of the tube to the other.

The matted shell ensures anti glare lighting in light beam angle of about 140°.
The optimal mounting height is from 2 - 4 m.
Rewiring of the luminaire or even remove the existing magnetic ballasts is not necessary. The METOLIGHT-UVL-520-SCE works on all conventional magnetic ballasts as well directly to 230V AC. You only need to replace the existing starter by the special fused LED-starter supplied with each tube.(Asmetec item -no.101495). However luminires with tandem circuit (1 ballast drives 2 tubes) must be checked before. Here it may be that the tube does not light up.

Lumen:

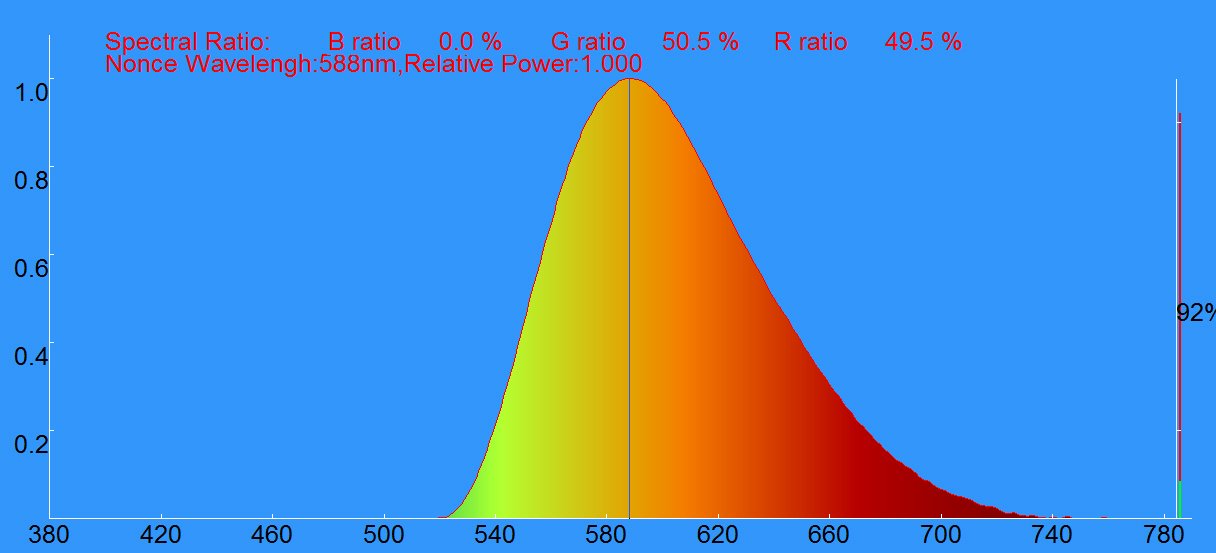

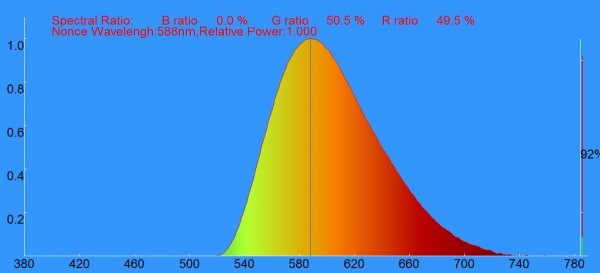

Since the lioght spectrum is limited to only light above 520 lm there is no possibility to measure the lumen output in a correct way acc. to LM79/LM80. The lumen data we offer are based on the white LEDs for full light spectrum

Specials:
The LED tubes include  a dense UV-filter, protected by a special stray lens covering the LED chips to avoid early fading of the UV-filter. Operation on emergency power systems with DC voltage between 180 and 260 V DC is possible. The UV-520 filter can be exchanged easily.

Application:
This LED-tube UVL-520-SCE, UV-filter 520 nm, no light below 520 nm is ideal for use in so called yellow rooms, print shops, chip manufacturing, PCB coatin and many more where no light below 520 nm may be emitted. To block light from windows we also offer special UV-blocking filter foils.

Specials:
High efficiency SMD LEDs 140 lm/W, CRI Ra >85, PC Case, 26 mm - T8 Diameter, rotable-fixed G13 sockets, special-core PCB for best heat dissipation and long lifetime, double isolated, short-break-proof built in driver. Sturdy aluminum heat sink, extra light, unbreakable construction, Creep voltage proof > 3750 volts, High dielectric strength, no flickering through by voltage deviations. 3 years limited warranty (see warranty conditions in download section)

Easy to install:
Switch off luminaire - remove old fluorescent tube and old starter - insert fused METOLIGHT LED-Starter and METOLIGHT LEDtube-UVL-520 - switch on - that's it.

Single reviev at Asmetec:
Each LED-tube undergoes a test routine in our Asmetec-Light-Lab to verify the general function and the main technical data. In addition to this each tube undergoes a 2500 Volt insulation and creep voltage test routine. The tests of all photometric data, ISO-Lines, EMC, switch cycles etc are made for each lot. Customers may receive test reports upon request.

Notes:
The UVL-520-SCE tubes are available in length 60 / 90 / 120 / 150 cm, where 120 cm and 150 cm are available in 2 wattages. As a special we also can add other filter colours.
