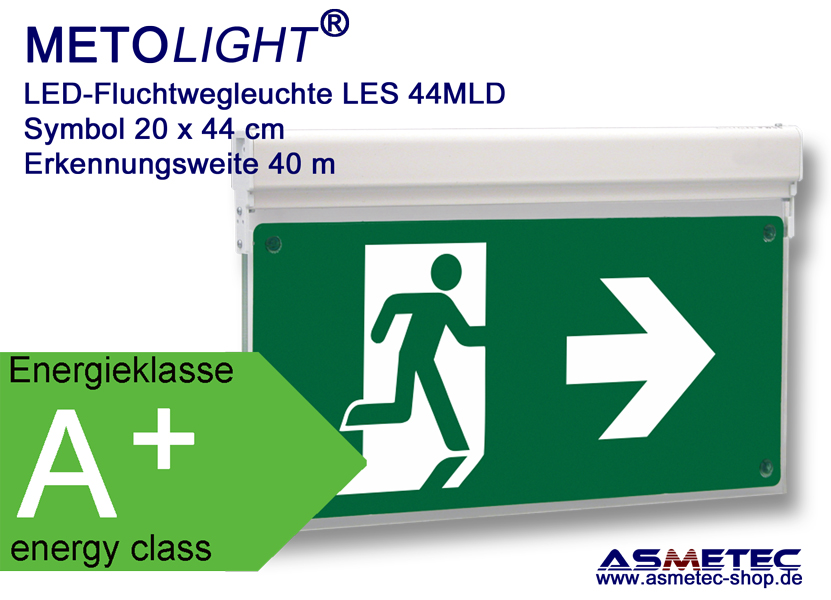

LED Emergency Exit luminaire LES-44-MLD, IP40, double sided
This LED-emergency luminaire is for indoor use only, IP 40, equipped with 15 LEDs providing 90 lm each side, equivalent to 8 Watt CFL-tubes. The built in rechargeable battery powers the LEDs for 3 hours in case of mains off.
Maintained operation (always lights on) for double sided view. The exit symbol (right/left) stick to a 6 mm acrylic glass, edge illuminated
It is designed for ceiling and suspended ceiling mounting.
As option we can supply:
transparent acrylic edge illuminated symbol
The Version LES-34-CBS comes without internal battery for central battery station operation.
A-1021 - Recess mounting base
A-1022 - Set for ceiling installation for 20 cm distance
A-1025 - Set for ceiling installation for 40 cm distance
A-1026 - Set for ceiling installation for 60 cm distance
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LES-44-MLD |
| Light Source |
15 LEDs |
| Light Power |
90 / 90 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
8 VA |
| Battery Data |
3,6 V, 1 Ah |
| Battery Type |
Ni-Cd |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
no |
| Recognitions distance |
34 m |
| Complies with |
EN 60598-1, 60598-2-22 |

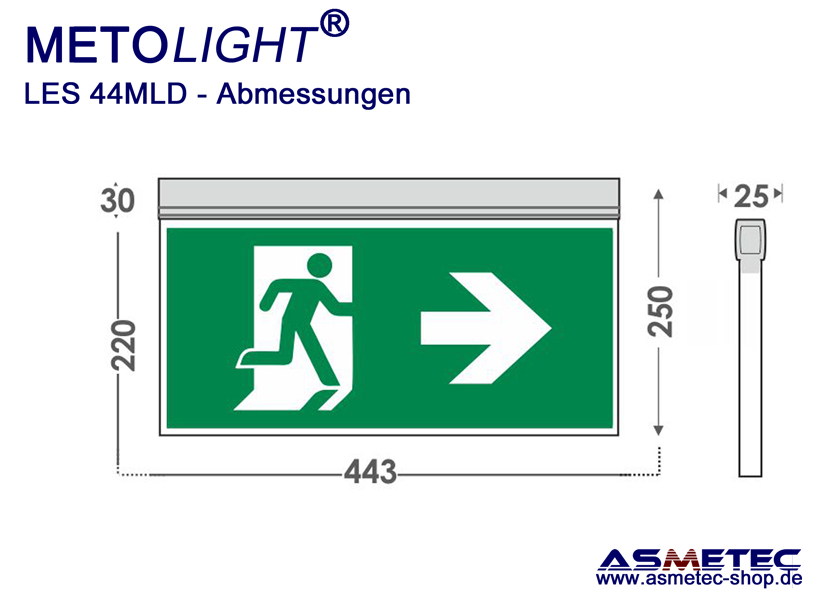

| Base unit dimensions (lwd) |
443 x 250 x 25 mm |
| Housing |
Polycarbonate, ABS |
| Flame retardant |
yes |
| Mounting |
Ceiling |
| Operating temperature |
0° - 50°C |
| Enclosure rating |
IP40 |
| Protection Class |
II |
| Specials |
double sided |
