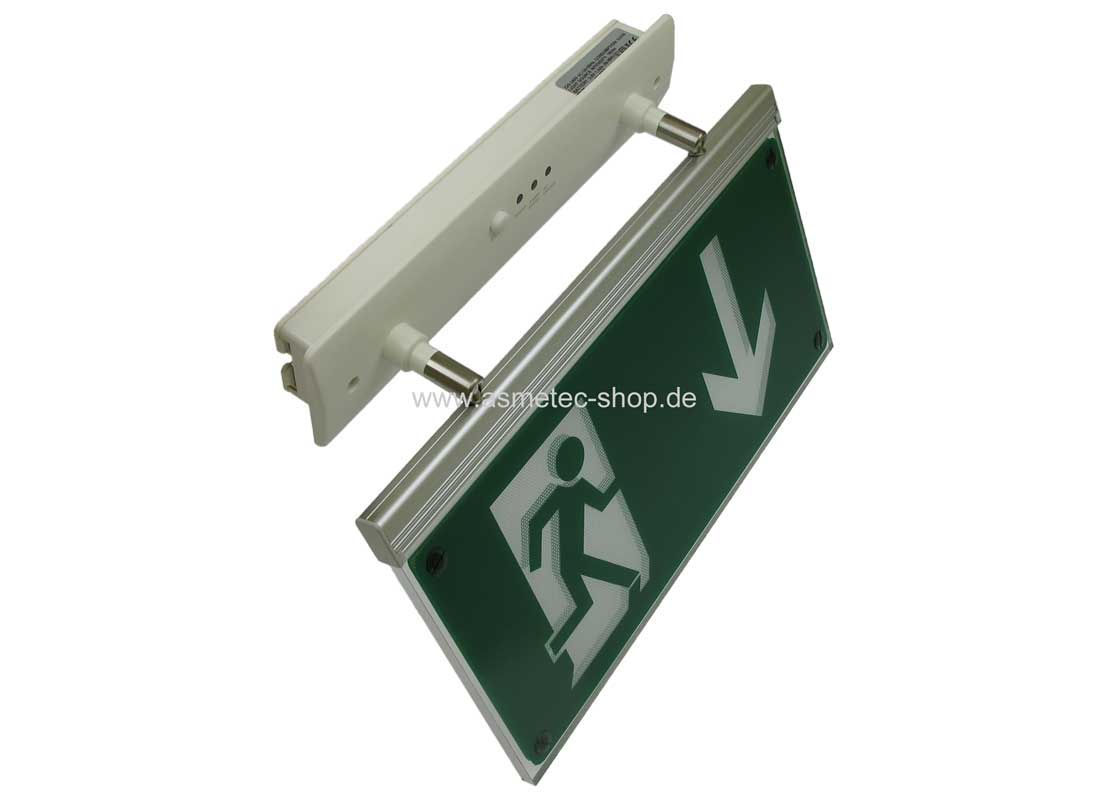

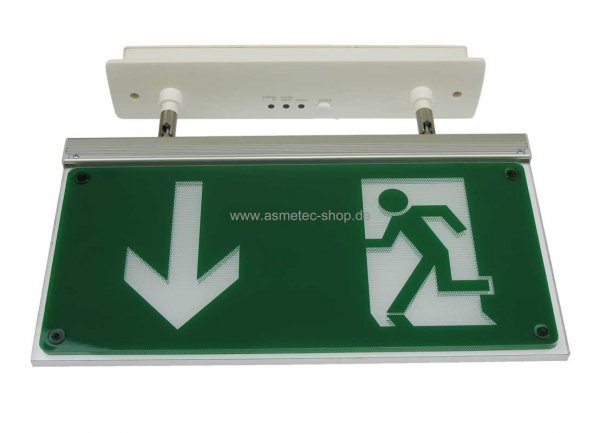

LED Emergency Exit luminaire LES-28-SLD-SP, IP30, double sided
This LED-emergency luminaire is for indoor use only, IP 30, equipped with 12 LEDs providing 72 lm each side. The built in rechargeable battery powers the LEDs for 3 hours in case of mains off.
Maintained operation (always lights on) for double sided view. The exit symbol (right/left) stick to a 6 mm acrylic glass, edge illuminated
It is designed for ceiling and suspended ceiling mounting.
As option we can supply:
transparent acrylic edge illuminated symbol
The Version LES-28-SLD-SP-CBS comes without internal battery for central battery station operation.
Optional accessories:
A-1079 - Recess mounting base
A-1080 - extension rod 10 cm
A-1081 - extension rod 20 cm
A-1082 - extension rod 40 cm
A-1083 - connection tie
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LES-28-SLD-SP |
| Light Source |
12 LEDs |
| Light Power |
80 / 80 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
9 VA |
| Battery Data |
3,6 V, 1,5 Ah |
| Battery Type |
Ni-Mh |
| Recharging time |
24 h |
| Battery protection |
overcharge, full discharge |
| Indication controls |
charge, lamp fault, LED-fault, |
| Test button |
yes |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
yes |
| Recognitions distance |
16 m |
| Complies with |
EN 60598-1, 60598-2-22, EN 1838 |

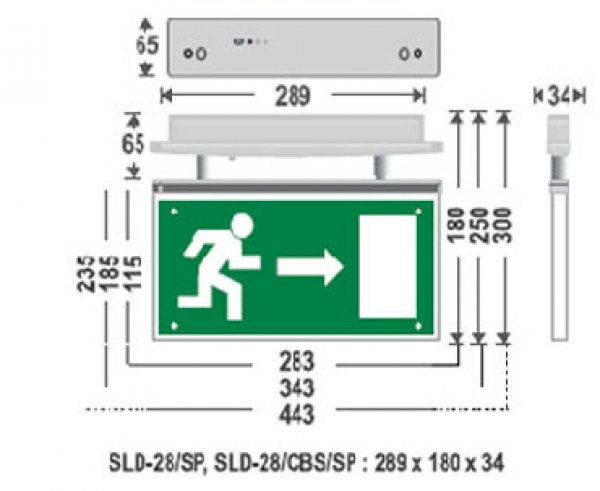

| Base unit dimensions (lwd) |
289 x 65 x 34 mm |
| Lamp dimensions |
280 x 120 x 15 mm |
| Weight |
790 gr |
| Housing |
FR3010, Aluminium, PMMA |
| Flame retardant |
yes |
| Mounting |
Ceiling / Wall |
| Operating temperature |
0° - 40°C |
| Rel. Humidity |
up to 95% |
| Enclosure rating |
IP30 |
| Protection Class |
II |
| Guarantee luminaire |
3 years |
| Guarantee battery |
1 year |
| Specials |
double sided |
