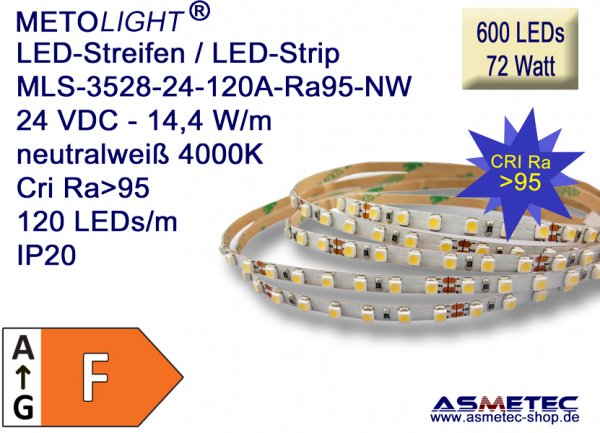

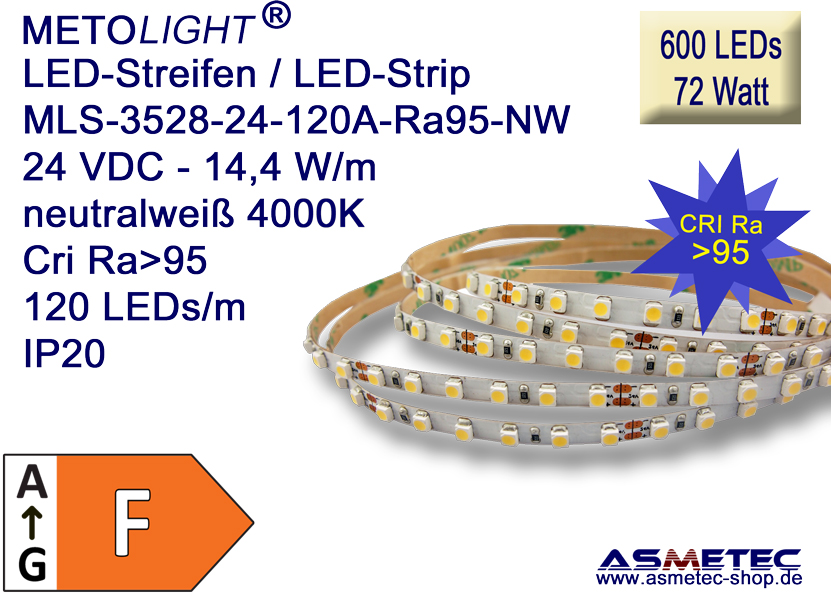

LED strip 3528, nature white, CRI Ra95, 24 VDC, 600 LEDs, 72 Watt, IP20, 5 m length

METOLIGHT LED strip MLS-3528-24-120A-Ra95-NW - nature white - 24 VDC -72 Watt, - IP20 - CRi Ra95

LED strip in professional quality, 24 V DC, 5-m-roll, 4000K

120 LEDs /m, 14,4W/m, 72 W/roll, 3600 lm/roll, LED spacing 8 mm, IP20, Cri Ra>95

The LED strip series MLS-3528 are designed for professional use. They are characterized by numerous technical details, which significantly stand out METOLIGHT LED strips from cheap LED strips from the supermarket or hardware stores. METOLIGHT LED-Strips only use high-performance EPISTAR SMD-LEDs type 3528 with Cri Ra>95 and an efficiency of over 100 lm / W (white), fixed to flexible polyimide circuit board having 35 µm Cu layer by silver solder paste. Thus a long-term function and consistent LED brightness over the entire roll length of 5 meters is assured. The light power ist alsmost same as 6 x 100 Watt incandescent bulbs at power input of only 72 Watt!
For low-cost products, the Cu layer is usually only 9 microns, so a series of several LED strips leads to strong heating and significant loss of brightness. With cheap RoHS solder pastes based on bismuth it comes increasingly to contact fractures, causing LED segments to be off.
Further data:
LED quantity: 120 LEDs / m - 600 LED / roll
LED spacing: 8 mm
LED type: Epistar SMD 3528 - 100 lm / W (White)
Light color nature white, 4000K
CRI: Ra >95
Lightpower: 1440lm/m - 7200 lm/roll
Beam angle: 120 °
Cuttable: every 6 LEDs, marking on the LED Strip
Width: 10 mm
Length 5 m
Height incl LEDs: 2 mm
PCB: polyimide, white, 0.2mm thick
Cu layer 2oz - 35 microns
Voltage: 24 V DC
Power consumption: 14,4W/m - 72 W/Reel
Current: 0.6A / m - 3 A / reel

Application areas:
The LED strip with protection class IP20 (Code A) may only be used in dry indoor areas for general decorative lighting. It may not be operated in damp or wet areas. Application areas are lighting in cabinets, shelves, display cases, counters, backlit of paintings, mirrors, screens, indirect lighting in ceiling or floor moldings and much more.

Delivery forms:
We provide these LED Strip exclusively B2B to specialist dealers or installers. The minimum order is 10 rolls of 5 meters.
The series MLS-3528-24-060A-Ra95 LED strips are available in the colors 3000K (warm white), 4000K (nature white), 5000K ( pure white), 6000K (cool white).
In other versions of the LED strips are also available for 12 VDC, as well as in IP54, IP65 and IP68

Installation:
The back of our LED strip is provided with a 3M adhesive tape, so that the LED strips are glued to dust-free, dry surfaces. We recommend especially for continuous lighting of the LED strips to stick on aluminum flat profiles or our special LED profiles to ensure optimal heat dissipation. Sticking on wood or other heat insulating surfaces leads to overheating and thus shortened shelf life of the LEDs.

Electrical connection:
The LED strip must be connected to a stabilized power supply with 24 V DC output voltage, optionally also to respective batteries. Please pay attention to correct polarity. The red connection cable leading to the positive terminal of the power supply. The use of cheap, unregulated power supplies may damage the LED Strip, since such power supplies usually make a significantly higher output voltage (depending on the load connected).


LED-Strips are also known as LED-Streifen., LED band, light band, LED band, LED linear stripe, high CRI LED, CRI Ra95 LED
