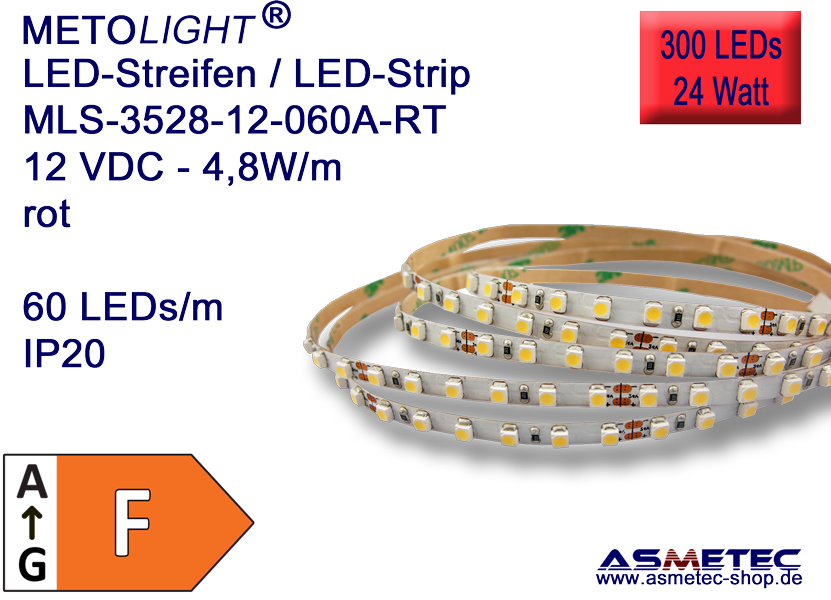

LED strip 3528, red, 12 VDC, 300 LEDs, 24 W, IP20, 5 m length

METOLIGHT LED strip MLS-3528-12-060A-RT - red - 12 VDC - IP20

LED strip in professional quality, 12 V DC, 5-m-roll, 600 - 650 nm

60 LEDs / m, 4.8W / m, 24 W / roll, LED spacing 16 mm, IP20

The LED strip series MLS-3528 are designed for professional use. They are characterized by numerous technical details, which significantly stand out METOLIGHT LED strips from cheap LED strips from the supermarket or hardware stores. METOLIGHT LED-Strips only use high-performance EPISTAR SMD-LEDs type 3528 with an efficiency of over 110 lm / W (white), fixed to flexible polyimide circuit board having 35 µm Cu layer by silver solder paste. Thus a long-term function and consistent LED brightness over the entire roll length of 5 meters is assured. It can be extended to maximum 3 rolls, then power must be supplied from the power supply again.
For low-cost products, the Cu layer is usually only 9 microns, so a series of several LED strips leads to strong heating and significant loss of brightness. With cheap RoHS solder pastes based on bismuth it comes increasingly to contact fractures, causing LED segments to be off.
Further data:
LED quantity: 60 LEDs / m - 300 LED / roll
LED spacing: 16 mm
LED type: Epistar SMD 3528 - 110 lm / W (White)
Light color red, 600-650 nm
CRI: Ra >80
Beam angle: 120 °
Cuttable: every 3 LEDs, marking on the LED Strip
Width: 8 mm
Length: 5 m
Height incl LEDs: 2 mm
PCB: polyimide, white, 0.2mm thick
Cu layer 2oz - 35 microns
Voltage: 12 V DC
Power consumption: 4.8W / m - 24 W / Reel
Current: 0.4A / m - 2 A / reel

Application areas:
The LED strip with protection class IP20 (Code A) may only be used in dry indoor areas for general decorative lighting. It may not be operated in damp or wet areas. Application areas are lighting in cabinets, shelves, display cases, counters, backlit of paintings, mirrors, screens, indirect lighting in ceiling or floor moldings and much more.

Delivery forms:
We provide these LED Strip exclusively B2B to specialist dealers or installers. The minimum order is 10 rolls of 5 meters.
The series MLS-3528-12-060A LED strips are available in the colors 3000K (warm white), 4000K (naturel white), 5000K ( pure white), 6000K (cool white), red (620-630 nm), yellow (585-595 nm), green (510 -525 nm) and blue (450-470 nm).
In other versions of the LED strips are also available for 24 VDC, as well as in IP54, IP65 and IP68

Installation:
The back of our LED strip is provided with a 3M adhesive tape, so that the LED strips are glued to dust-free, dry surfaces. We recommend especially for continuous lighting of the LED strips to stick on aluminum flat profiles or our special LED profiles to ensure optimal heat dissipation. Sticking on wood or other heat insulating surfaces leads to overheating and thus shortened shelf life of the LEDs.

Electrical connection:
The LED strip must be connected to a stabilized power supply with 12 V DC output voltage, optionally also to respective batteries. Please pay attention to correct polarity. The red connection cable leading to the positive terminal of the power supply. The use of cheap, unregulated power supplies may damage the LED Strip, since such power supplies usually make a significantly higher output voltage (depending on the load connected).


LED-Strips are also known as LED-Streifen., LED band, light band, LED band, LED linear stripe
