LED-Strip MLS-3528 - 12 VDC - IP54
»

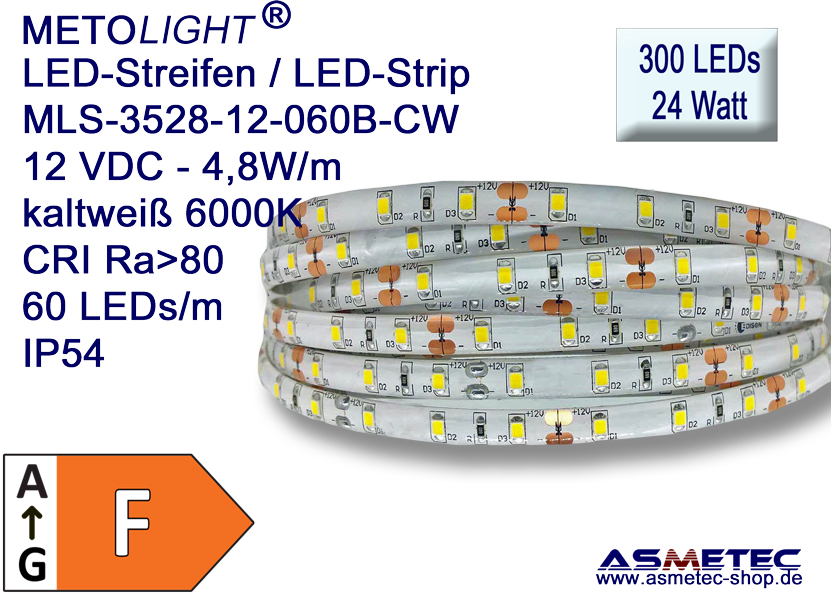

LED strip 3528, cold white, 12 VDC, 300 LEDs, 24 W, IP54, 5 m length
LED strip 3528, cold white, 12 VDC, 300 LEDs, 24 W, IP54, 5 m length
METOLIGHT LED strip MLS-3528-12-060B-CW, cold white, 12 VDC, 24 Watt, IP54
LED strip in professional quality, 12 V DC, 5-m-roll, 6000K
60 LEDs / m, 4.8W / m, 24 W / roll, LED spacing 16 mm, IP54 - damp proof
The LED strip series MLS-3528 are designed for professional use. They are characterized by numerous technical details, which significantly stand out METOLIGHT LED strips from cheap LED strips from the supermarket or hardware stores. METOLIGHT LED-Strips only use high-performance EPISTAR SMD-LEDs type 3528 with an efficiency of over 110 lm / W (white), fixed to flexible polyimide circuit board having 35 µm Cu layer by silver solder paste. Thus a long-term function and consistent LED brightness over the entire roll length of 5 meters is assured. It can be extended to maximum 3 rolls, then power must be supplied from the power supply again. The LED-Strips class IP54 can be used in damp rooms and protected outdoor areas.
For low-cost products, the Cu layer is usually only 9 microns, so a series of several LED strips leads to strong heating and significant loss of brightness. With cheap RoHS solder pastes based on bismuth it comes increasingly to contact fractures, causing LED segments to be off.
Further data:
LED quantity: 60 LEDs / m - 300 LED / roll
LED spacing: 16 mm
LED type: Epistar SMD 3528 - 110 lm / W (White)
Light color cold white - 6000K
CRI: Ra >80
Beam angle: 120 °
Cuttable: every 3 LEDs, marking on the LED Strip
Width: 10 mm
Length: 5 m
Height incl LEDs: 3 mm
PCB: polyimide, white, 0.2mm thick
Cu layer 2oz - 35 microns
Voltage: 12 V DC
Power consumption: 4.8W / m - 24 W / Reel
Current: 0.4A / m - 2 A / reel
IP-Class: IP54 - damp proof
Application areas:
The LED strip with protection class IP54 (Code B) may be used in damp areas and protected outdoor areas, not in wet areas. Application areas are lighting in terraces, loggias, cabinets, display cases, counters, backlit of paintings, mirrors, screens, indirect lighting in ceiling or floor moldings and much more.
Delivery forms:
We provide these LED Strip exclusively B2B to specialist dealers or installers. The minimum order is 10 rolls of 5 meters.
The series MLS-3528-12-060B LED strips are available in the colors 3000K (warm white), 4000K (naturel white), 5000K ( pure white), 6000K (cool white), red (620-630 nm), yellow (585-595 nm), green (510 -525 nm) and blue (450-470 nm).
In other versions of the LED strips are also available for 24 VDC, as well as in IP20, IP65 and IP68
Installation:
The back of our LED strip is provided with a 3M adhesive tape, so that the LED strips are glued to dust-free, dry surfaces. We recommend especially for continuous lighting of the LED strips to stick on aluminum flat profiles or our special LED profiles to ensure optimal heat dissipation. Sticking on wood or other heat insulating surfaces leads to overheating and thus shortened shelf life of the LEDs.
Electrical connection:
The LED strip must be connected to a stabilized power supply with 12 V DC output voltage, optionally also to respective batteries. Please pay attention to correct polarity. The red connection cable leading to the positive terminal of the power supply. The use of cheap, unregulated power supplies may damage the LED Strip, since such power supplies usually make a significantly higher output voltage (depending on the load connected).
LED-Strips are also known as LED-Streifen., LED band, light band, LED band, LED linear stripe, damp proof led strip
Technical Data
Beschreibung | Daten / Data | Description |
Markenname | METOLIGHT | Brand name |
Modell | MLS-3528-12-060B-Ra80 | Model |
EAN-Nummer | verschiedene | EAN-Number |
Lichtsystem | gebündeltes Licht/directional light - (DLS) / nicht direkt an Netzspannung / non operating on mains (NMLS) | Light System |
Betriebsspannung | 12 VDC | Input Voltage |
Gesamtleistung | 24 Watt* | Input Power |
Verbrauch | 24 kWh/1000h* | Consumption |
Leistungsfaktor | Pf > 0,90 | Power factor |
Dimmbar? | ja / yes | Dimmable? |
Lichtquelle | 60 x LED-SMD 3528 / m - total 300 LEDs | Light Source |
LED Marke / Typ | Epistar | LED brand/model |
Farblich abstimmbare Lichtquelle | nein - no | Colour tunable Lightsource |
Energieklasse - EU 874/12 | A+ | Energy Class EU 874/2012 |
auf einer Skala von A++ bis E (wenig effizient) / on scale of A++ to E (less efficient) | ||
Energieklasse - EU 2019/2015 | F | Energy Class EU 2019/2015 |
auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
Photobiolog. Klasse | 1 | Photobiolog. Class |
Lichtwinkel | 120°* | Beam Angle |
Lichteffizienz | 100 lm/W* | Light Efficacy |
Warmweiss WW | 2800 - 3300K -2100 lm - dominant 585 nm +/- 20 - x:0,44 / y:0,40 / u:0,25 / v:0,35* | Warm White WW |
Neutralweiß NW | 3800 - 4300K - 2250 lm - dominant 570 nm +/- 20 - x:0,38 / y:0,37 / u:0,22 / v:0,33* | Nature White NW |
Tagweiß DW | 4800 - 5500K - 2400 lm - dominant 490 nm +/- 20 - x:0,33 / y:0,35 / u:0,21 / v:0,32* | Pure White DW |
Kaltweiß CW | 5700 - 6500K - 2400 lm - dominant 500 nm +/- 20 - x:0,32 / y:0,34 / u:0,20 / v:0,32* | Cold White CW |
Rot | 600 - 650 nm - 650 lm - dominant 620 nm +/- 20 - x:0,69 / y:0,30 / u:0,52 / v:0,34* | Red |
Gelb | 550 - 630 nm - 650 lm - dominant 500 nm +/- 20 - x:0,59 / y:0,40 / u:0,35 / v:0,36* | Yellow |
Grün | 500 - 550 nm - 1500 lm - dominant 520 nm +/- 20 - x:0,13 / y:0,73 / u:0,04 / v:0,38* | Green |
Blau | 440 - 480 nm - 500 lm lm - dominant 466 nm +/- 20 - x:0,13 / y:0,05 / u:0,17 / v:0,09* | Blue |
Hinweis Nutzlichtstrom | Der Nutzlichtstrom bezieht sich auf Messung im breiten Kegel von 120° - The useful luminous flux refers to measurement in wide cone 120 ° | Note Luminous Flux |
Farbkonsistenz | <= 6McAdams | Colour Consitency |
Lichterhalt 6000h | LMF >= 0,90* | Lumen Maintanance 6000h |
R4 | WW: 81 / NW: 83 / DW: 83 / CW: 84* | R4 |
R9 | WW: 9 / NW: 14 / DW: 6 / CW: 14* | R9 |
R15 | WW: 74 / NW: 77 / DW: 77 / CW: 77* | R15 |
CRI | CRI Ra > 80* | CRI |
LED-Lebensdauer | 30.000 h (L70B50)* | LED-Life |
Schaltzyklen (ein/aus) | > 100.000* | Switch Cycles (on/off) |
Stroboskopeffekt | SVM < 0,4* | Stroboscopic effect |
Flimmern | Pst LM < 1* | Flicker |
Blendschutz | ja - yes | Anti-glare shield |
LED-Versorgung | 12 VDC | LED-Supply |
LED-Gruppen | 3 LEDs | LEDs grouped |
Teilbar | 3 LEDs - 5,08 cm | Cuttable |
Klassen | IP54 | Classes |
Abmessungen | PCB-Breite 10 mm, Höhe 3 mm, Länge 5 m - PCB width 10 mm, height 3 mm, length 5 m | Sizes |
Gewicht | 0,85 kg | Weight |
Betriebsbereich | -15°C - + 35°C – 10-90% rH | Work Conditions |
Hinweise | nur an für LEDs geeigneten Netzteilen 12 VDC Ausgangsspannung betreiben - Only connect to LED power drivers. Irrtum und Schreibfehler vorbehalten. Technische Daten zur Produktverbesserungen können ohne Voranmeldung geändert werden. - Subject to errors and typing errors. Technical data for product improvements can be changed without prior notice | Notes |
* | Messdaten unterliegen den typischen Schwankungen von Serienfertigung - Measure data are subject to the typical fluctuations in series production | * |
Normen | CE-Konformität / CE-conformity nach / acc to: EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012, ErP 2009/125/EU, NRS 2014/358/EU, EMV 2014/30/EU, RoHS 2011/65/EU, 2017/1359 | Standards |
Herstellerinformationen | Asmetec GmbH - Carl-Benz-Str. 4 - 67292 Kirchheimbolanden - Germany - www.asmetec.de - info@asmetec.de - WEEE DE74399040 | Manufacturer Information |
