LED power supply 12 VDC, 350 W, 29 A, open frame IP20

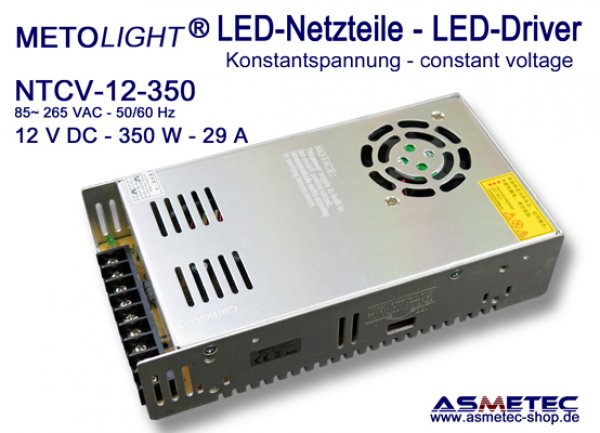

LED power supply NTCV-12-350, open frame

Constant Voltage Power Supply 12 VDC, 350 Watt, 29 A

High-performance quality LED driver Pf> 0.95, open design for installation in control cabinets, short circuit proof, overvoltage protected. The open design gives the best cooling.
The power supply is ideal for operating LED lights, LED strips, wallwashers and other lights that are powered by 12 VDC.
It complies with standards EN60950-1, EN55022, EN61000-4-2, -4, -5, -11
Due to the open frame design, this power supply may only be installed in control cabinets.
We generally recommend power supplies to only 80% of their maximum power load.
Hints:
Installation only by the electrical engineer. If the polarity is incorrect, the LED strips may be irreparably damaged; in the event of a short circuit, the power supply unit may be damaged. Please make sure that the power of the power supply and the optional control unit is sufficient to supply the connected LED strips. Damage caused by incorrect installation or corrosion is not covered by the warranty.

Technical specifications:

• Input voltage: 180-255 VAC, 50/60 Hz
• Output voltage: 12 VDC, 29 A
• Power: 350 watts max.
• Protection class: IP20
• Dimensions: 215 x 115 x 51 mm
• Weight: 0.95 kg
