LED driver GLP GPV-60-24, 24 Volt DC, 60 Watt, TÜV

Switching power supply GLP GPV-60-24, 24 Volt DC, 60 Watt

Constant-voltage power supply for LED lighting technology with integrated protection against short circuit and overload.

This compact, low-built LED Power Supply, SELV, isolation class II, has an auto-recover protective circuit responsive in case of overload and short-circuit at the output.
The input voltage can widely range between 100 and 240 V AC - 47-63 Hz and provides a constant output voltage of 24 V DC +/- 5% with a maximum output of 60 Watts
The power supply is not dimmable, cooling by free air convection. The sealed driver complies with IP67.
It is ideal to feed 24 Volt DC LED lights such as special LED tubes, LED-strips, LED-Modules and other devices for 24 VDC supply, max 60 Watt
Working environment: -20 ° C ~ + 50 ° C, 20-90% rH, non-condensing.
LVD- approval by TÜV Rheinland


Note: This driver is also available in version 12 VDC, as well as max. power of 24 / 36 / 48 / 60 / 72 / 100 / 144 Watt

Technical Data:
Input Voltage: 100-240 VAC, typical 230 VAC, 50/60 Hz
Output Voltage: 24 VDC +/- 5%
Outpu Current: 2,5 A
Power: 60 Watt

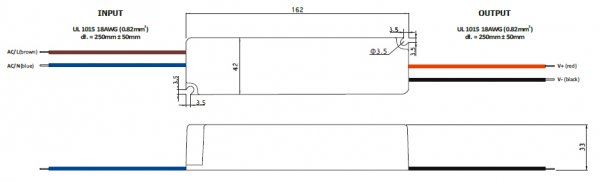

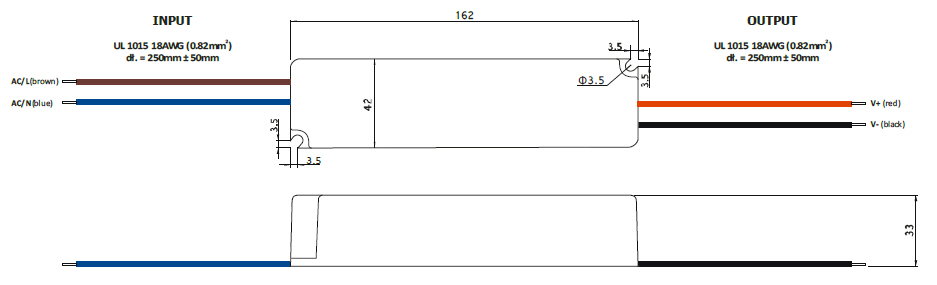

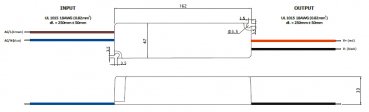

Sizes: 162 x 42 x 33 mm (L x W x H)

More information can be found in the data sheet in the download area.
