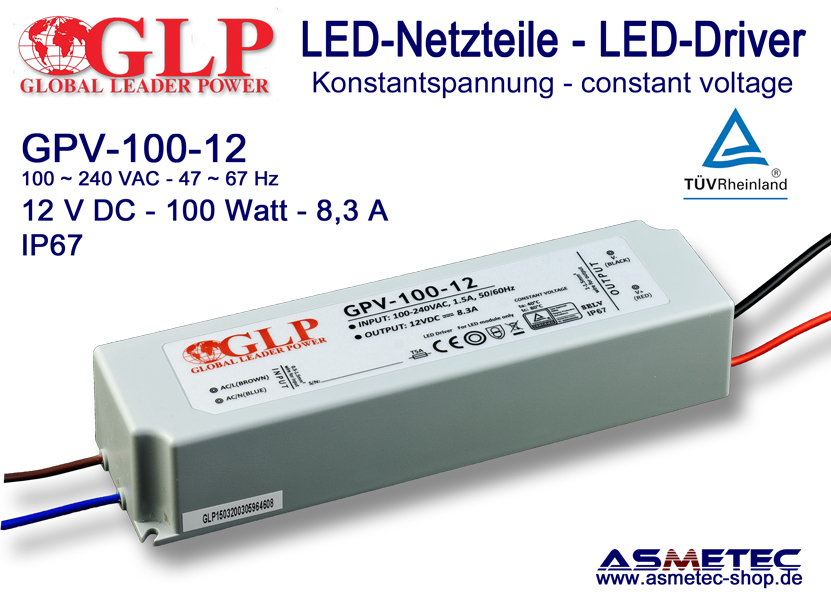

LED driver GLP GPV-100-12, 12 Volt DC, 100 Watt, TÜV

Switching power supply GLP GPV-100-12, 12 Volt DC, 100 Watt, TÜV

Constant-voltage power supply for LED lighting technology with integrated protection against short circuit and overload.

This compact, low-built LED Power Supply, SELV, isolation class II, has an auto-recover protective circuit responsive in case of overload and short-circuit at the output.
The input voltage can widely range between 100 and 240 V AC - 47-63 Hz and provides a constant output voltage of 12 V DC +/- 5% with a maximum output of 100 Watts
The power supply is not dimmable, cooling by free air convection. The sealed driver complies with IP67.
It is ideal to feed 12 Volt DC LED lights such as special LED-Lamps (G4, MR16, GX 5.3), LED tubes, LED-strips, LED-Modules and other devices for 12 VDC supply, max 100 Watt
Working environment: -20 ° C ~ + 50 ° C, 20-90% rH, non-condensing.

LVD-Test made by TÜV Rheinland


Note: This driver is also available in version 12 VDC, as well as max. power of 24 / 36 / 48 / 60 / 75 / 100  and 150 Watt

Technical Data:
Input Voltage: 100-240 VAC, typical 230 VAC, 50/60 Hz
Output Voltage: 12 VDC +/- 5%
Outpu Current: 8,3 A
Power: 100 Watt

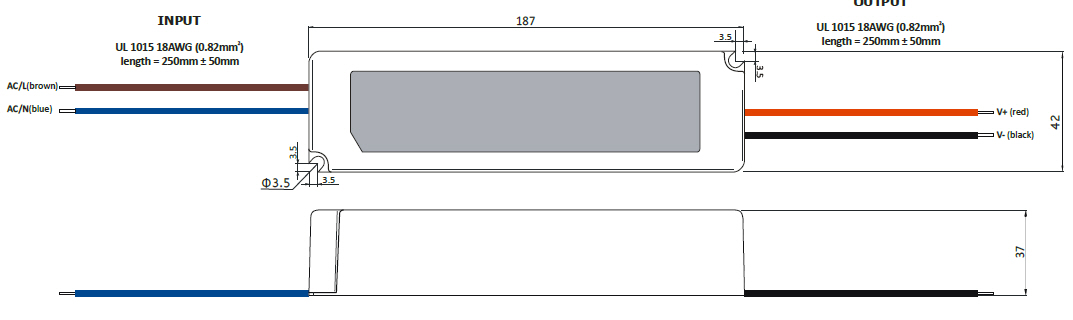

Sizes: 187 x 42 x 33 mm (L x W x H)

More information can be found in the data sheet in the download area.
